R300-1240M-KH 3040
R300-1240M-KH 3040
Артикул:
5744507
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
15 Degree
BN (Face land width)
0.2 mm
CBMD (Chip breaker manufacturers designation)
KH
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
CVD TiCN+Al2O3
D1 (Fixing hole diameter)
4.1 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
SV-MD124000
GAN (Insert rake angle)
0 Degree
GB (Face land angle)
15 Degree
GRDMFG (Grade manufacturers designation)
3040
GRDPRIO (Standard designation of the grade main application)
HC

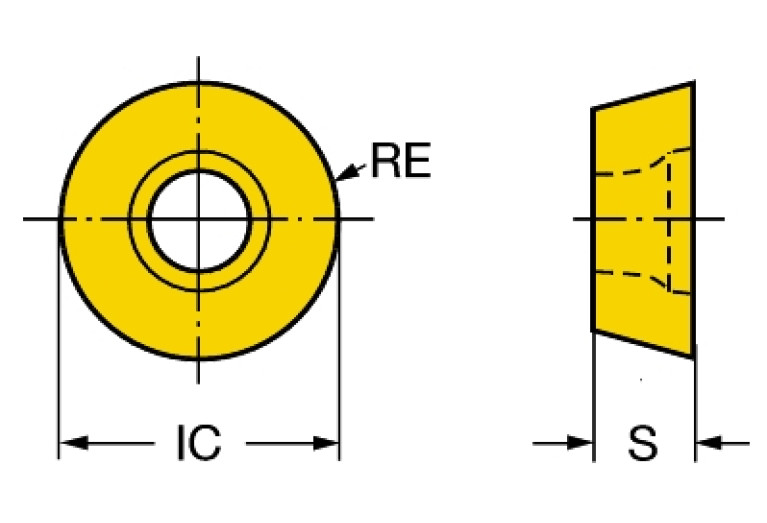

IC (Inscribed circle diameter)
12 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$MD1240M03$B$$M0
LOC-03 ISO
SV$$MD1240M03$B$$M0
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-MD124000
M (M-dimension)
12 mm
Materials
P,K,H
S (Insert thickness)
3.969 mm
S1 (Insert thickness total)
3.969 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
K - Cold formed
Working process
No working processes available
WT (Weight of item)
0.004 kg
