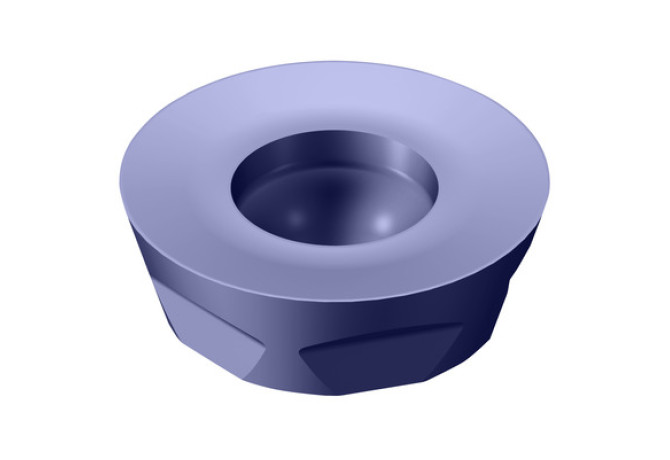

R300-1240E-PM 1230
R300-1240E-PM 1230
Артикул:
8519367
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
15 Degree
CBMD (Chip breaker manufacturers designation)
PM
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
TiAlSiN
D1 (Fixing hole diameter)
4.1 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2024
GAN (Insert rake angle)
0 Degree
GRDMFG (Grade manufacturers designation)
1230
GRDPRIO (Standard designation of the grade main application)
HC

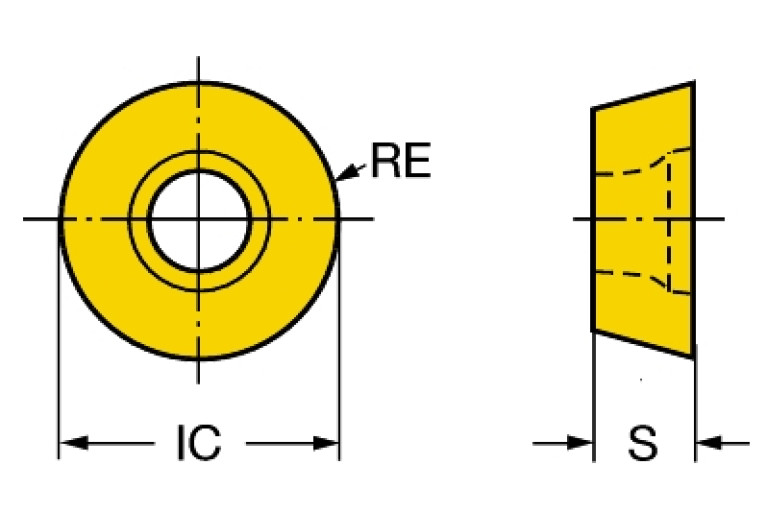

IC (Inscribed circle diameter)
12 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$MD1240M03$B$$M0
LOC-03 ISO
SV$$MD1240M03$B$$M0
LOC-03-Connection-codes
J6 / J441 - connection code machine end
M (M-dimension)
12 mm
Materials
P
S (Insert thickness)
3.969 mm
S1 (Insert thickness total)
3.969 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
H
Working process
No working processes available
WT (Weight of item)
0.005 kg
