R300-1240E-PL 1030
R300-1240E-PL 1030
Артикул:
5744523
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
15 Degree
CBMD (Chip breaker manufacturers designation)
PL
CECC (Cutting edge condition code)
F - Sharpedged
COATN (Coating)
PVD TiAlN
D1 (Fixing hole diameter)
4.1 mm
Delivery state
LA - Soon discontinued
Delivery state valid from
12/1/2023
DIN
SV-MD124000
GRDMFG (Grade manufacturers designation)
1030
GRDPRIO (Standard designation of the grade main application)
HC

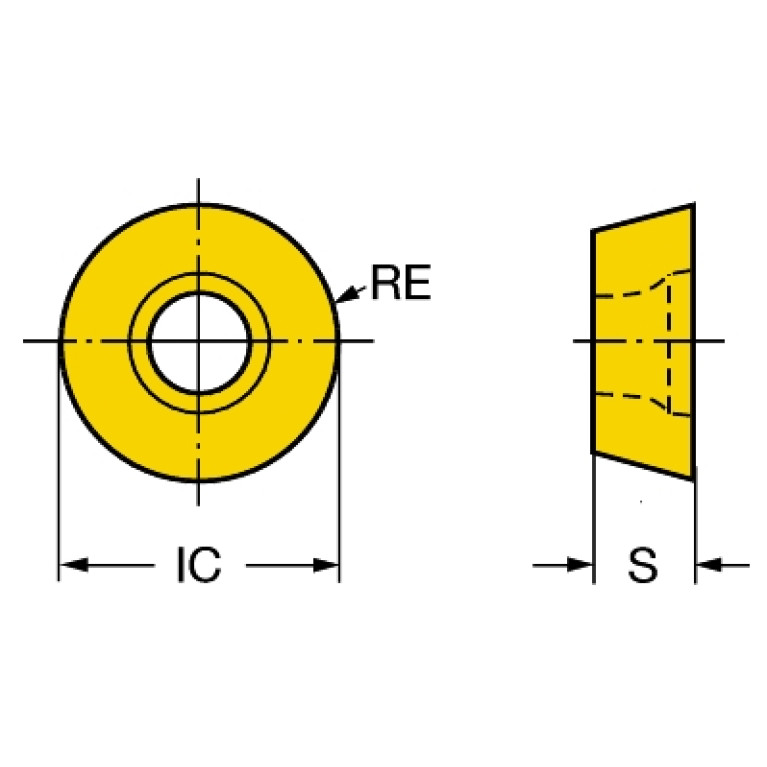

IC (Inscribed circle diameter)
12 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$MD1240M03$B$$M0
LOC-03 ISO
SV$$MD1240M03$B$$M0
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-MD124000
M (M-dimension)
12 mm
Materials
P,M,N,S,H
S (Insert thickness)
3.969 mm
S1 (Insert thickness total)
3.969 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
H
Working process
No working processes available
WT (Weight of item)
0.004 kg
