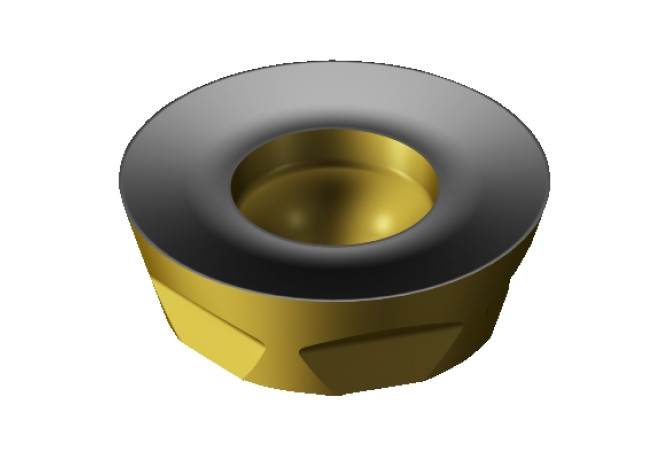

R300-0724E-PM 4340
R300-0724E-PM 4340
Артикул:
7564569
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
15 Degree
CBMD (Chip breaker manufacturers designation)
PM
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
CVD TiCN+Al2O3+TiN
D1 (Fixing hole diameter)
2.5 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
SV-MD072400
GAN (Insert rake angle)
0 Degree
GRDMFG (Grade manufacturers designation)
4340
GRDPRIO (Standard designation of the grade main application)
HC

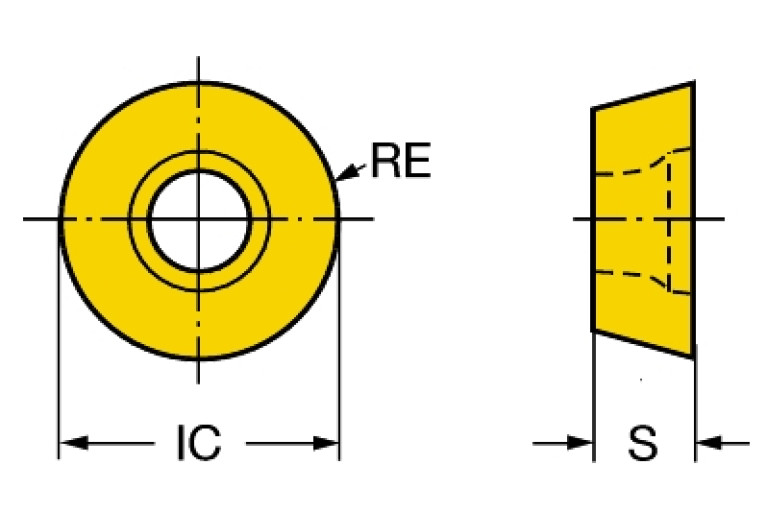

IC (Inscribed circle diameter)
7 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$MD0724M03$B$$M0
LOC-03 ISO
SV$$MD0724M03$B$$M0
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-MD072400
M (M-dimension)
7 mm
Materials
P,M,K
S (Insert thickness)
2.381 mm
S1 (Insert thickness total)
2.381 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
H
Working process
No working processes available
WT (Weight of item)
0.001 kg
