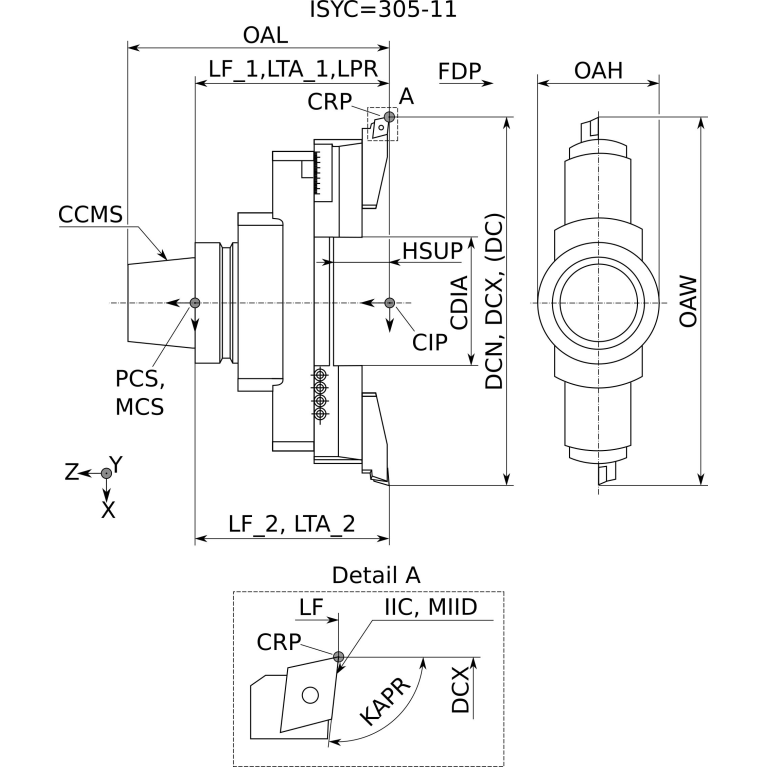

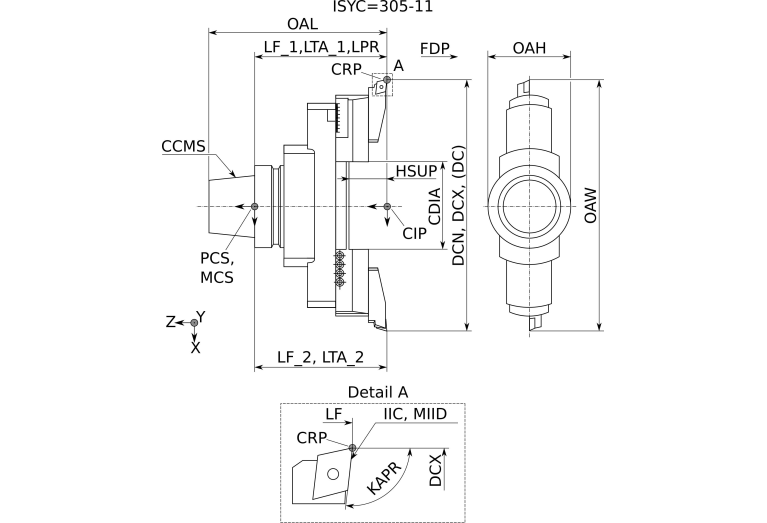

Главная Инструменты 305-11 - Assembled multi-point bridge tool BR20D-36SP06Y-C3L

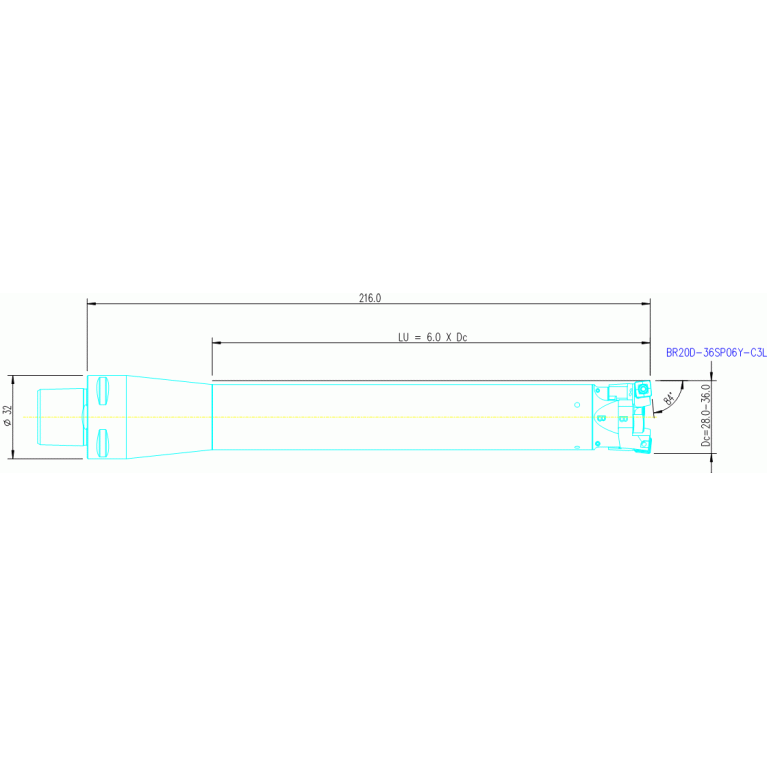

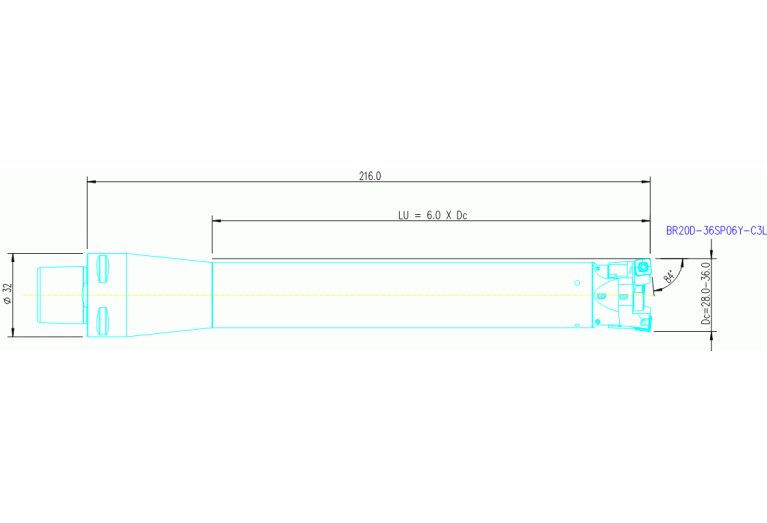

BR20D-36SP06Y-C3L

Артикул: 7591806

В наличии

0 ₽

В корзину

Описание

Характеристики

ADJBY (Adjustment property)

1 - Radial adjustment possible

ADJRGA (Adjustment range axial)

4 mm

BDX (Body diameter maximum)

25 mm

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DCN (Cutting diameter minimum)

28 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

36 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

CCS03200195

DIN CSW1

SV-TM060300

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

CCS01C0320$$$$

ISO CSW1

SV$$TM0603$$3**$$$$

KAPR (Tool cutting edge angle)

84 Degree

LF (Functional length)

216 mm

LOC-01 ISO

SV$$TM0603$$3**$$$$

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

SV-TM060300

LOC-03 ISO

CCS01C0320$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0320

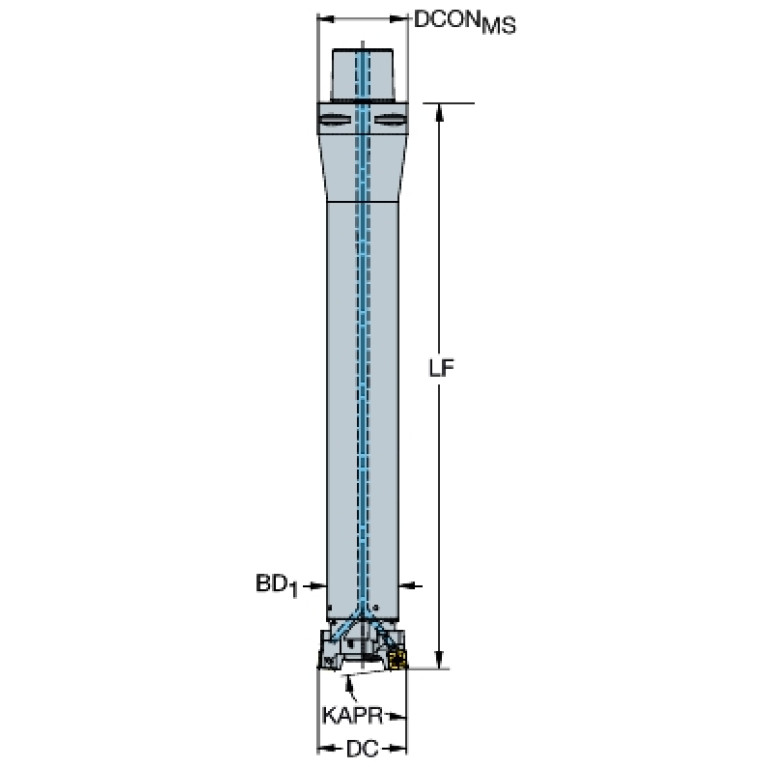

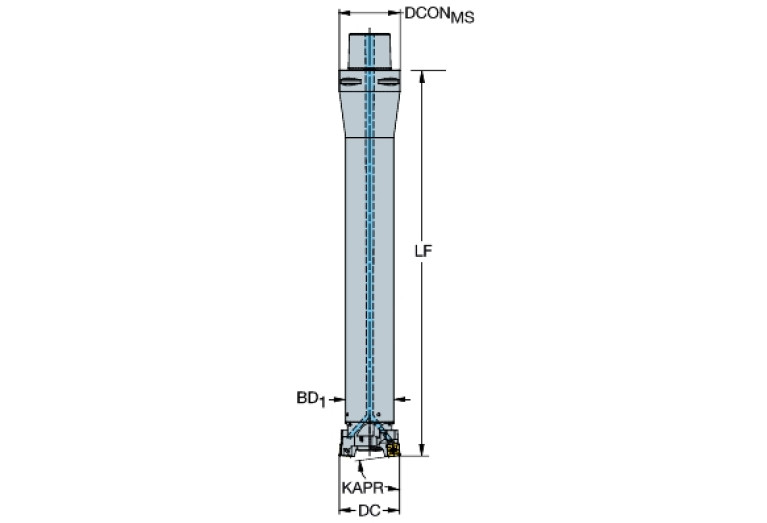

LOC-03 (DCONMS Diameter)

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS03200195

LPR (Protruding length)

216 mm

MIID (Master insert identification)

SPMT0606-BM

OAL (Overall length)

235 mm

RPMX (Rotational speed maximum)

6821 1/min

Working process

BAB - Open by boring

WT (Weight of item)

1.03 kg

ZEFP (Peripheral effective cutting edge count)
