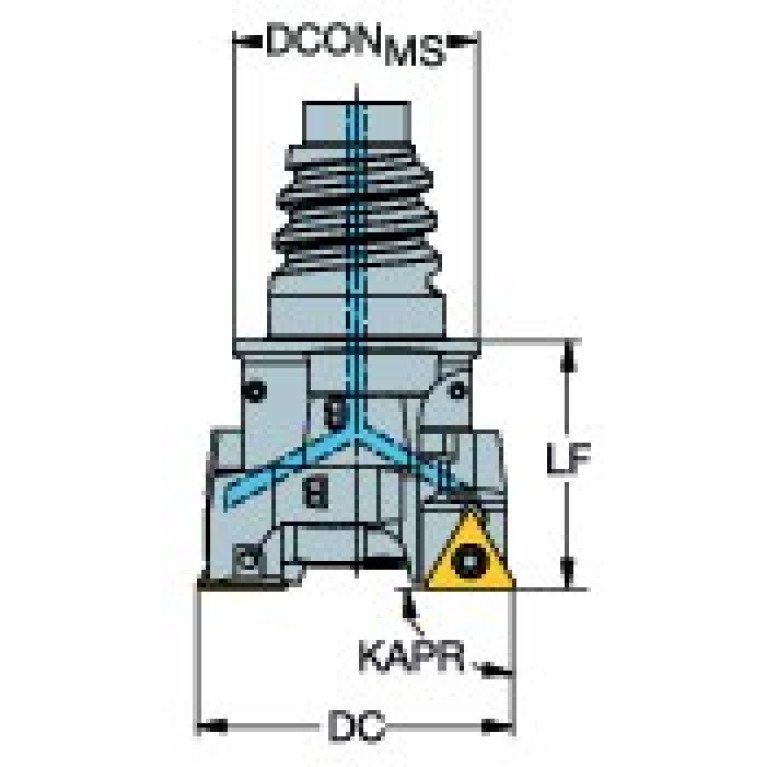

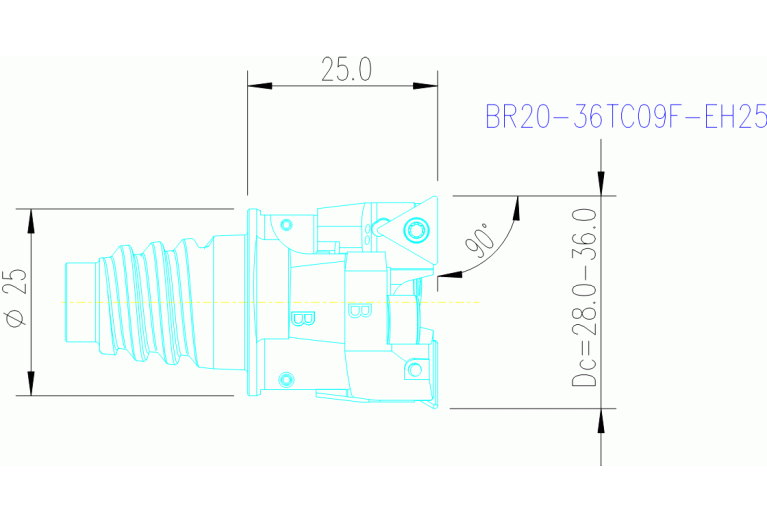

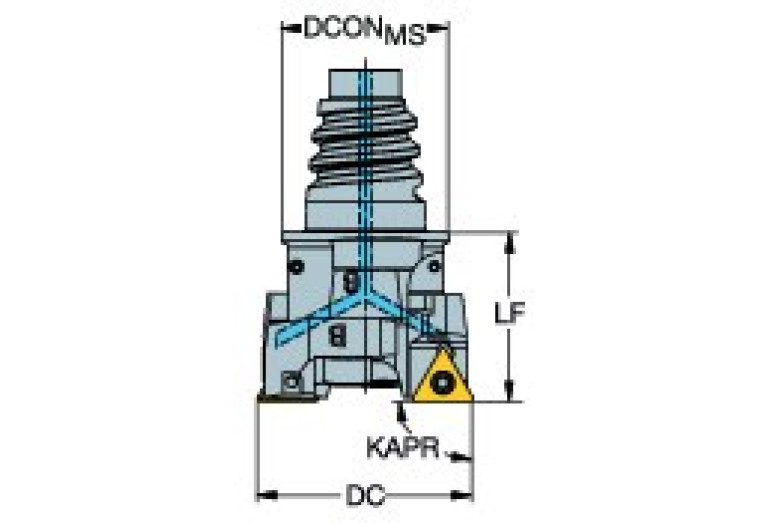

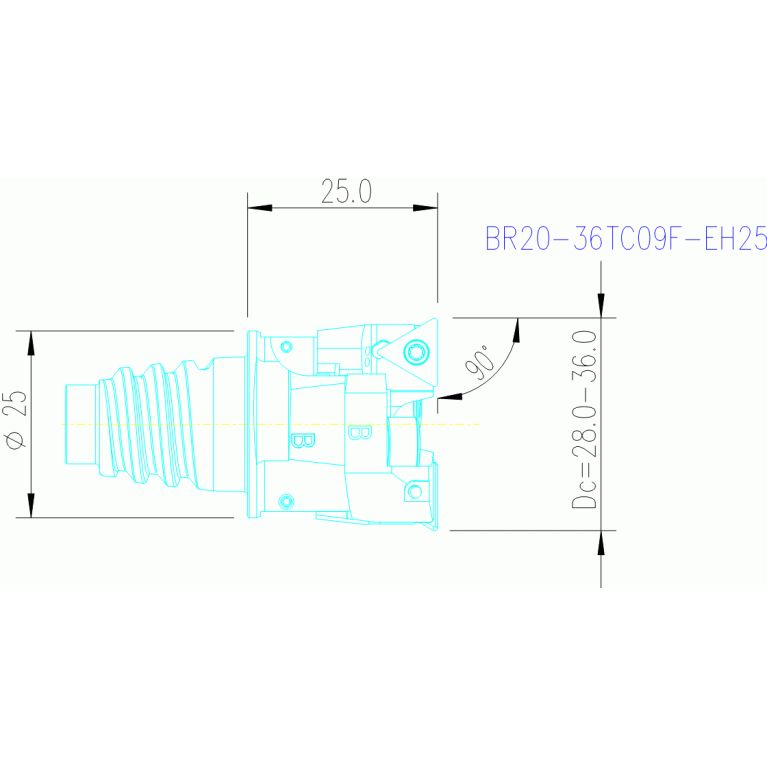

BR20-36TC09F-EH25
BR20-36TC09F-EH25
Артикул:
7591834
В наличии
0 ₽
Характеристики
ADJBY (Adjustment property)
1 - Radial adjustment possible
ADJRGA (Adjustment range axial)
4 mm
BMC (Body material code)
S - Solid steel
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
DCN (Cutting diameter minimum)
28 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
36 mm
Delivery state valid from
12/1/2023
DIN
SAC02500415
DIN CSW1
TC0902993L
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A (Indicator for ISO cutting plate Pos.A)
1
ISO
SAC04A0250$$$$
ISO CSW1
ISO$TC0902003L*****
KAPR (Tool cutting edge angle)
90 Degree
LF (Functional length)
25 mm
LOC-01 ISO
ISO$TC0902003L*****
LOC-01-Connection-codes
J41 / J441 - Interface code position A (cutting edge) (Unknown 01)
LOC-01-DIN
TC0902993L
LOC-03 ISO
SAC04A0250$$$$
LOC-03 (CCFMS Connection code form)
04
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
SAC Screw mounting SANDVIK Coromant
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
0250
LOC-03 (DCONMS Diameter)
24.2 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAC02500415
LPR (Protruding length)
25 mm
MIID (Master insert identification)
TCMT090204
OAL (Overall length)
49 mm
RPMX (Rotational speed maximum)
13642 1/min
Working process
BAB - Open by boring
WT (Weight of item)
0.13 kg
ZEFP (Peripheral effective cutting edge count)
2
