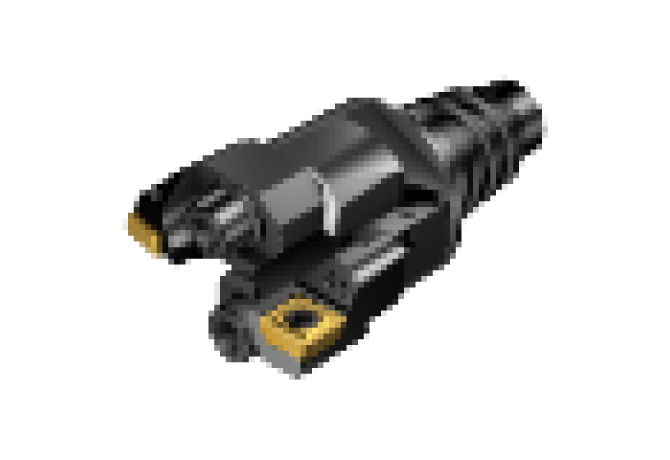

Главная Инструменты 305-11 - Assembled multi-point bridge tool BR20-29SP06Y-EH20

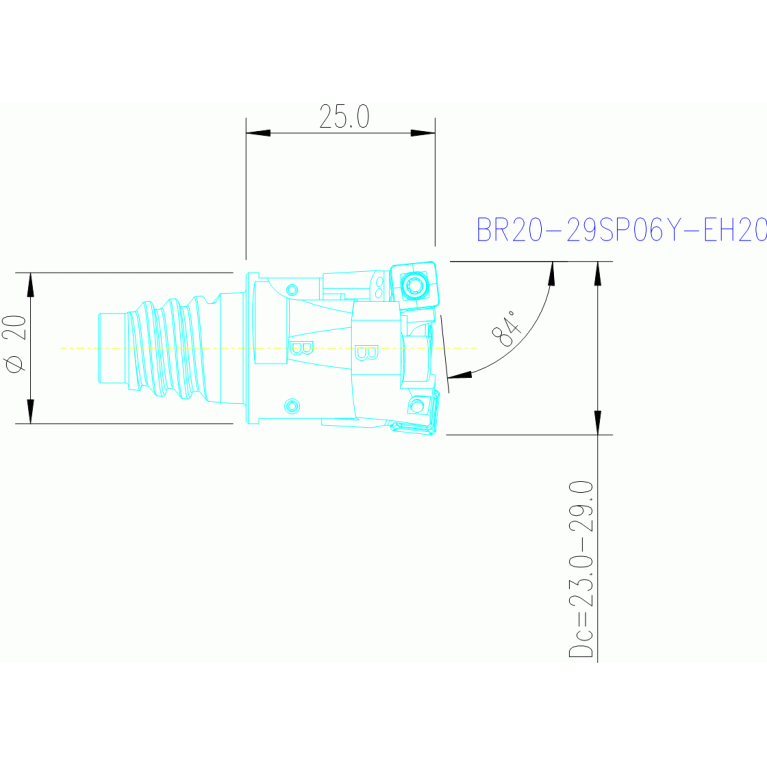

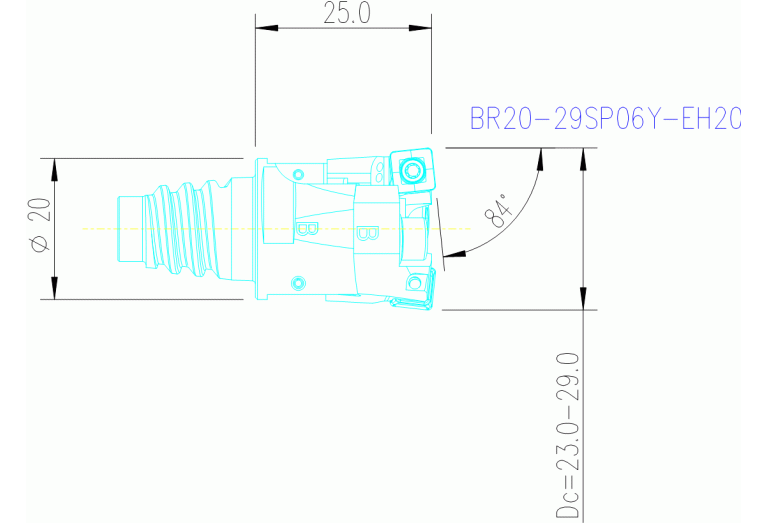

BR20-29SP06Y-EH20

Артикул: 7216773

В наличии

0 ₽

В корзину

Описание

Характеристики

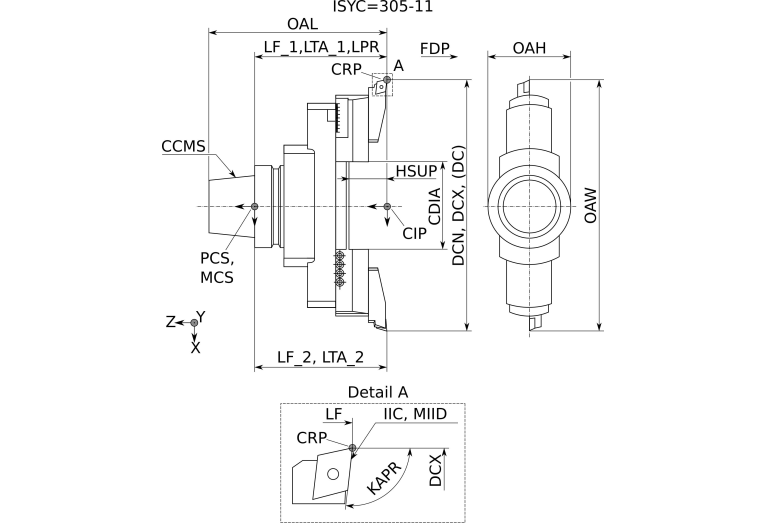

ADJBY (Adjustment property)

1 - Radial adjustment possible

ADJRGA (Adjustment range axial)

3 mm

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DCN (Cutting diameter minimum)

23 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

29 mm

Delivery state valid from

12/1/2023

DIN

SAC02000415

DIN CSW1

SV-TM060300

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

SAC04A0200$$$$

ISO CSW1

SV$$TM0603$$3**$$$$

KAPR (Tool cutting edge angle)

84 Degree

LF (Functional length)

25 mm

LOC-01 ISO

SV$$TM0603$$3**$$$$

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

SV-TM060300

LOC-03 ISO

SAC04A0200$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SAC Screw mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0200

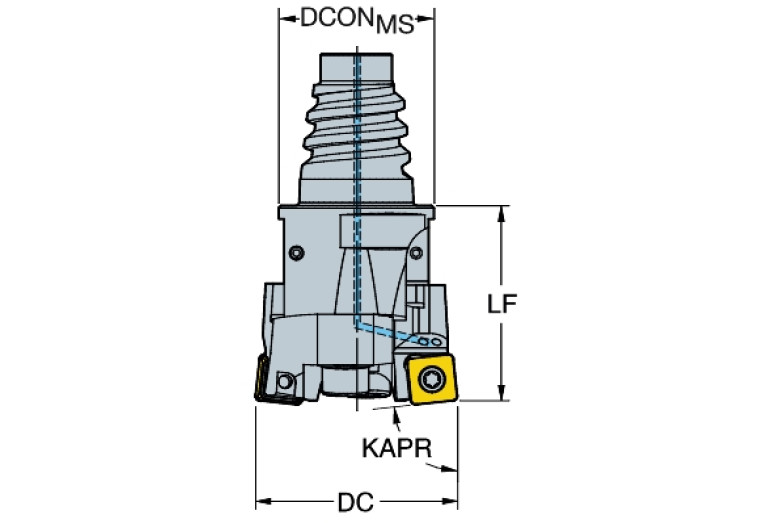

LOC-03 (DCONMS Diameter)

19.3 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAC02000415

MIID (Master insert identification)

SPMT0606-BM

OAL (Overall length)

44.5 mm

RPMX (Rotational speed maximum)

16608 1/min

Working process

BAB - Open by boring

WT (Weight of item)

0.07 kg

ZEFP (Peripheral effective cutting edge count)
