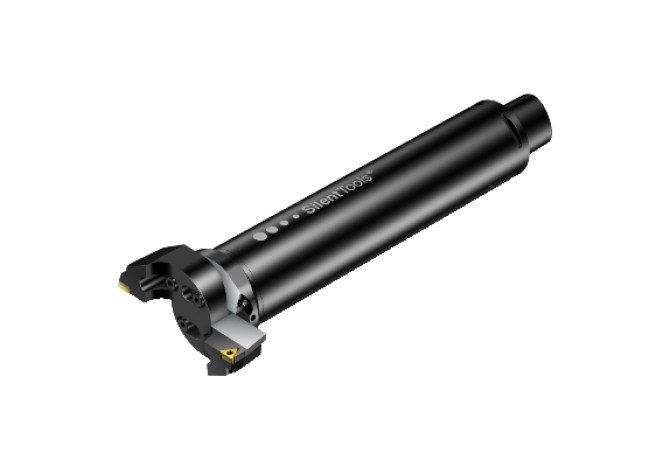

821D-56TC16-C5
821D-56TC16-C5
Артикул:
6352193
В наличии
0 ₽
Характеристики
ADJRGA (Adjustment range axial)
5 mm
BDX (Body diameter maximum)
40 mm
BMC (Body material code)
S - Solid steel
CNSC (Coolant entry style code)
3 - With Coolant entry, axial concentric and radial
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
DCN (Cutting diameter minimum)
46 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
56 mm
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
CCS05000195
DIN CSW1
TC16T3993N
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
CCS01C0500$$$$
ISO CSW1
ISO$TC16T3003******
KAPR (Tool cutting edge angle)
90 Degree

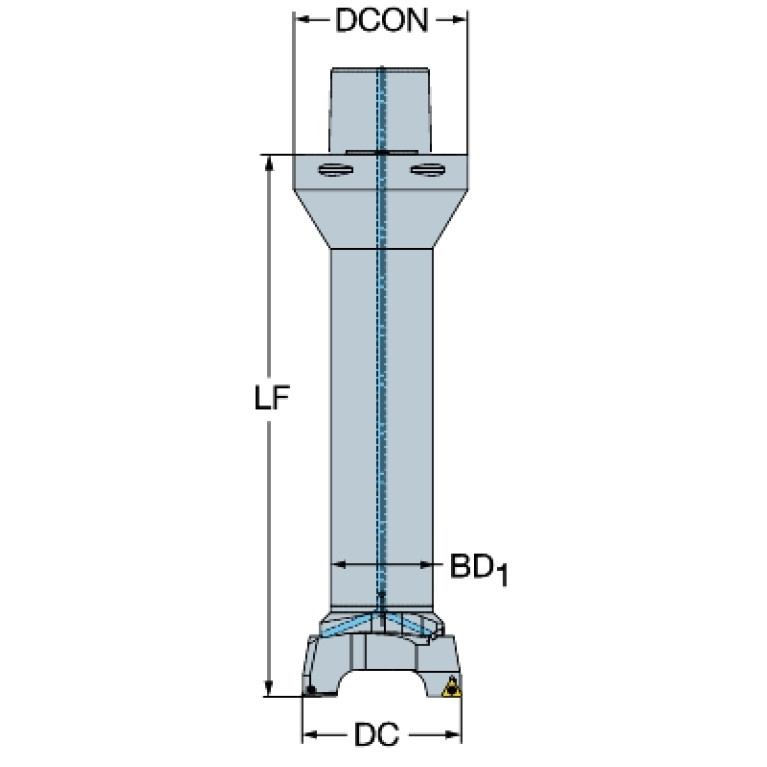

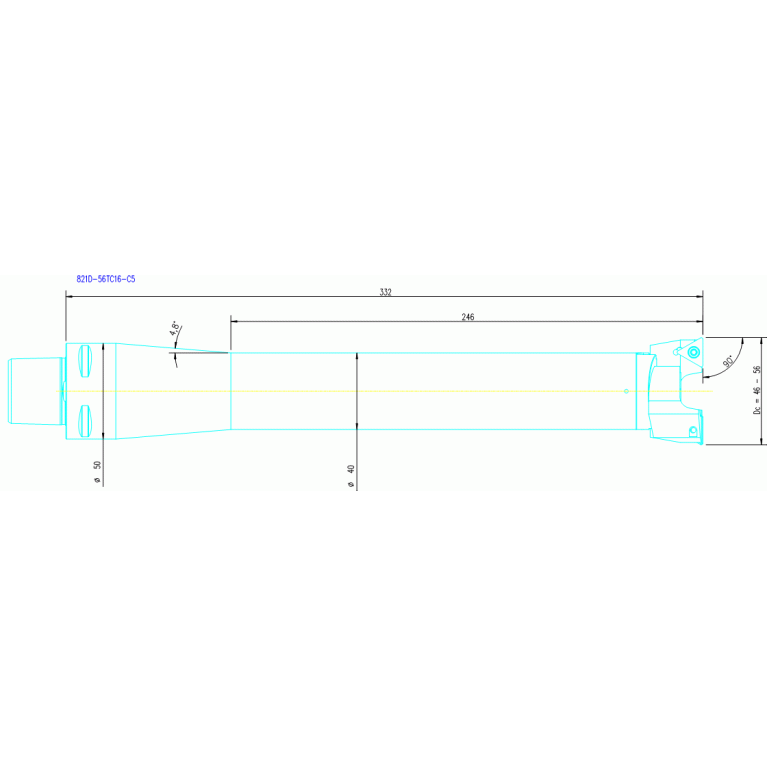

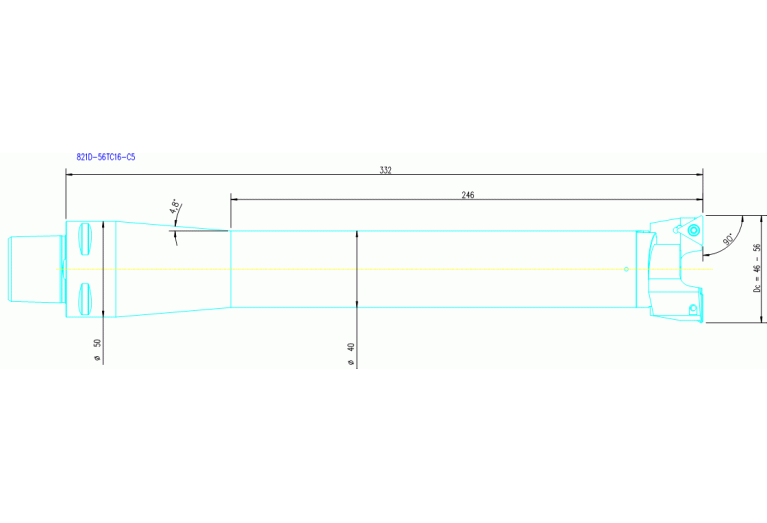

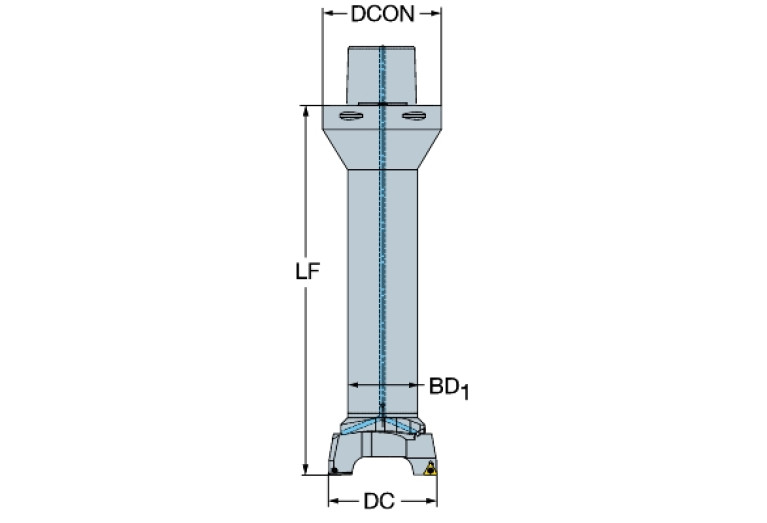

LF (Functional length)
332 mm
LOC-01 ISO
ISO$TC16T3003******
LOC-01-Connection-codes
J41 / J441 - Interface code position A (cutting edge) (Unknown 01)
LOC-01-DIN
TC16T3993N
LOC-03 ISO
CCS01C0500$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0500
LOC-03 (DCONMS Diameter)
50 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000195
LPR (Protruding length)
332 mm
MIID (Master insert identification)
TCMT16T308

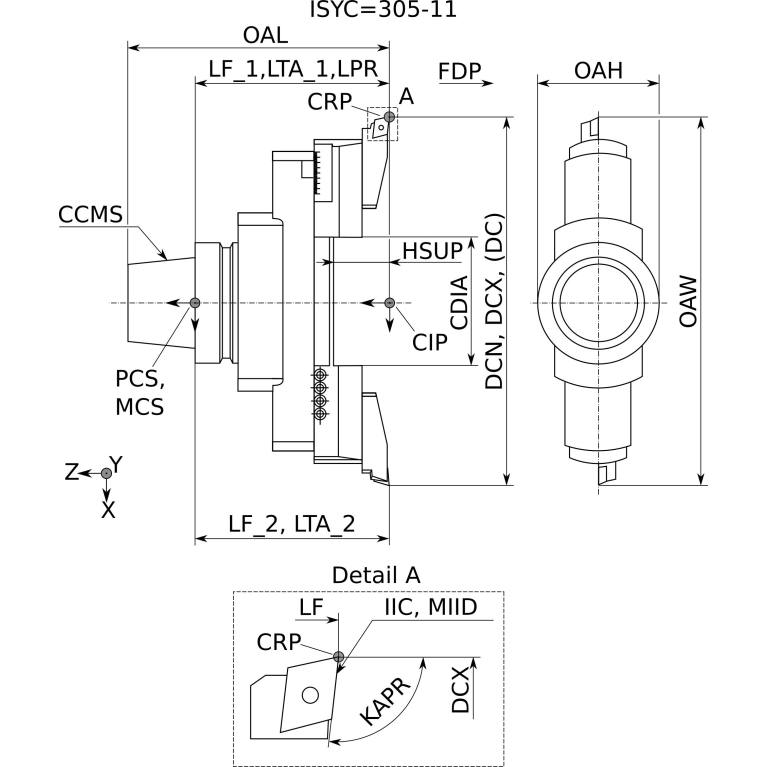

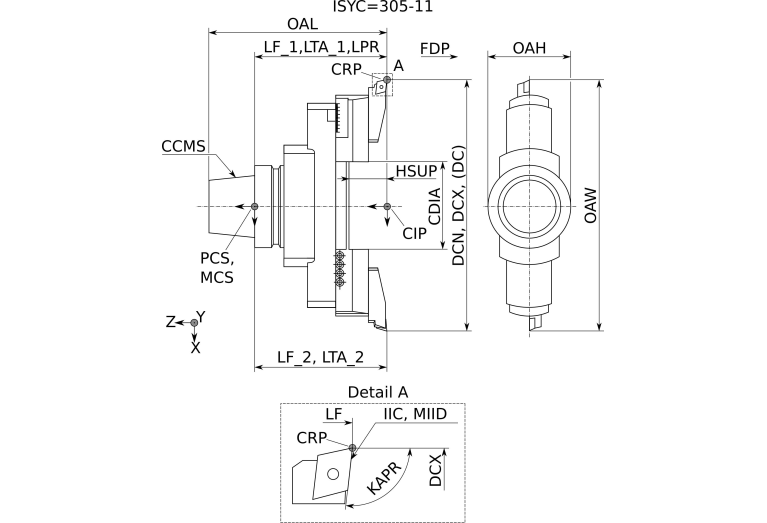

OAL (Overall length)
362 mm
RPMX (Rotational speed maximum)
4152 1/min
Working process
BAB - Open by boring
WT (Weight of item)
4.8 kg
ZEFP (Peripheral effective cutting edge count)
2
