Главная Инструменты 305-11 - Assembled multi-point bridge tool 821D-150CC12-C8

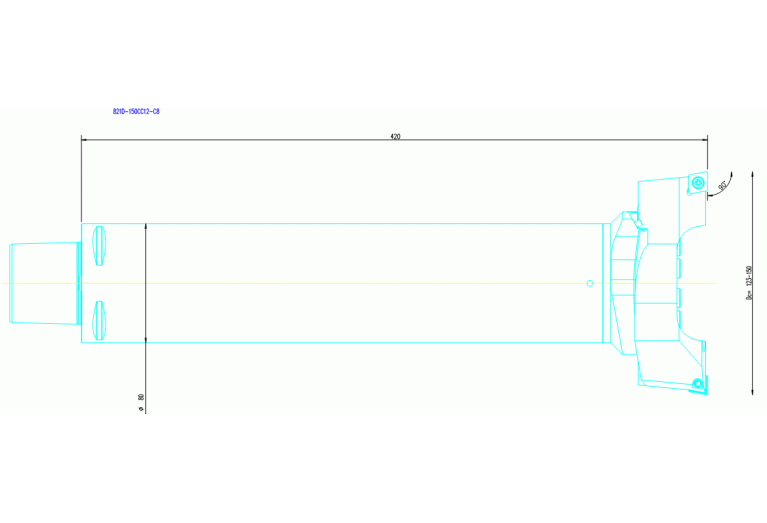

821D-150CC12-C8

Артикул: 6415767

В наличии

0 ₽

В корзину

Описание

Характеристики

ADJRGA (Adjustment range axial)

13.5 mm

BDX (Body diameter maximum)

96 mm

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

5 - With coolant supply (discharge) in axial in direction, diagonal adjustable

CXSC (Coolant exit style code) / Тип подвода СОЖ

5 - With coolant supply (discharge) in axial in direction, diagonal adjustable

DCN (Cutting diameter minimum)

123 mm

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

150 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

CCS08000195

DIN CSW1

CC1204993N

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

CCS01C0800$$$$

ISO CSW1

ISO$CC1204003******

KAPR (Tool cutting edge angle)

90 Degree

LF (Functional length)

420 mm

LOC-01 ISO

ISO$CC1204003******

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

CC1204993N

LOC-03 ISO

CCS01C0800$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0800

LOC-03 (DCONMS Diameter)

80 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS08000195

LPR (Protruding length)

420 mm

MIID (Master insert identification)

CCMT120408

OAL (Overall length)

468 mm

RPMX (Rotational speed maximum)

1553 1/min

Working process

BAB - Open by boring

WT (Weight of item)

15.3 kg

ZEFP (Peripheral effective cutting edge count)
