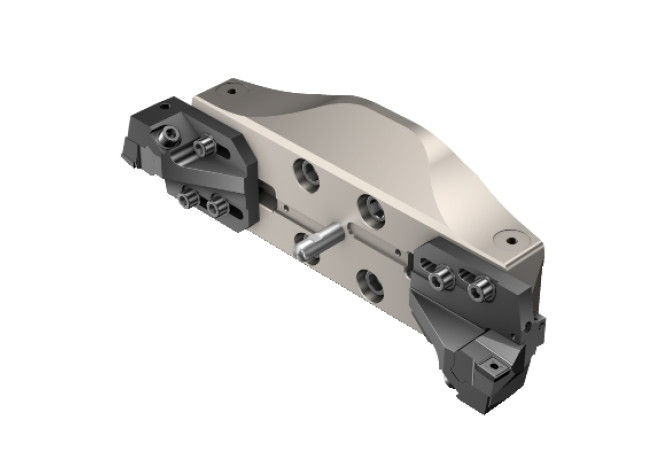

820-460SP18
820-460SP18
Артикул:
6352156
В наличии
0 ₽
Характеристики
ADJBY (Adjustment property)
1 - Radial adjustment possible
ADJRGA (Adjustment range axial)
41 mm
BMC (Body material code)
L - Light alloy
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial

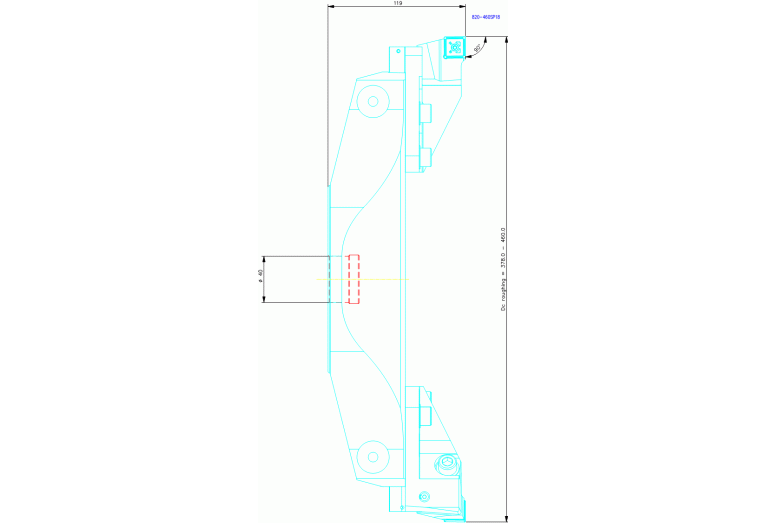

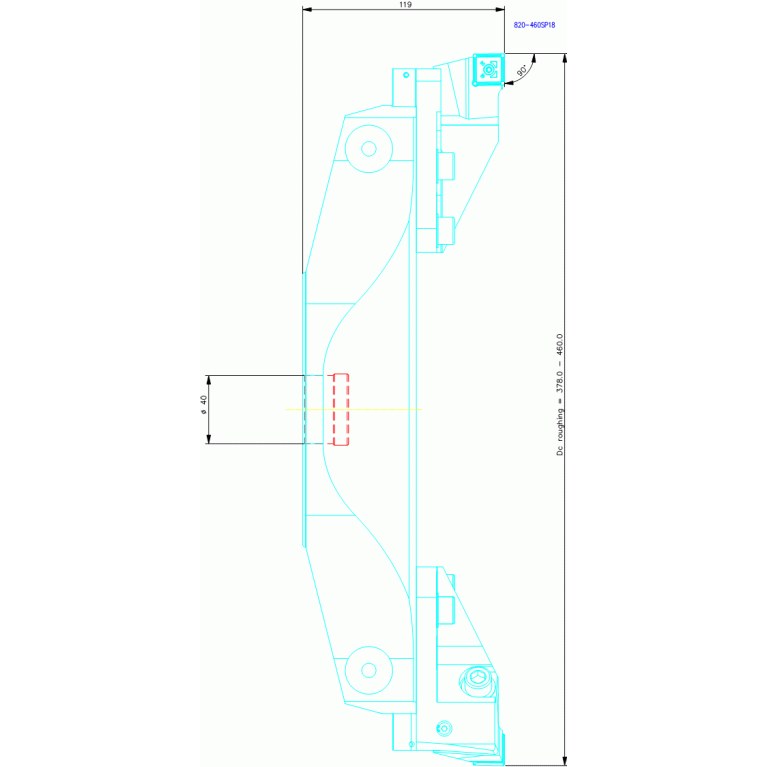

DCN (Cutting diameter minimum)
378 mm
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
460 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
SPK10160213
DIN CSW1
SV-TM180600
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
SPK02A1016$$$$
ISO CSW1
SV$$TM1806$$3**$$$$

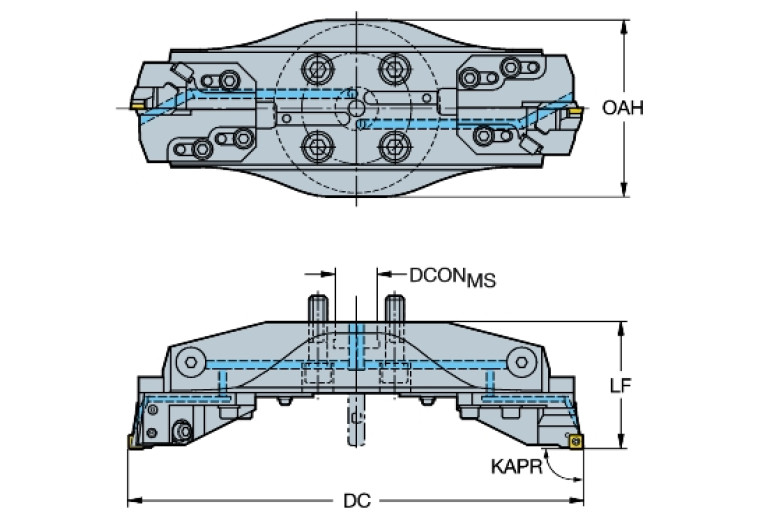

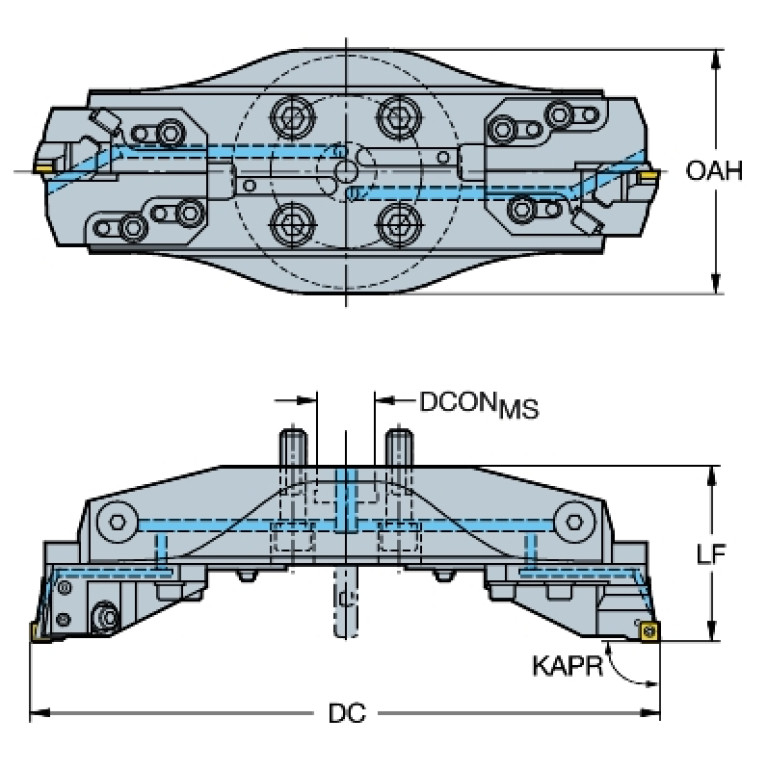

KAPR (Tool cutting edge angle)
90 Degree
LF (Functional length)
119 mm
LOC-01 ISO
SV$$TM1806$$3**$$$$
LOC-01-Connection-codes
J41 / J441 - Interface code position A (cutting edge) (Unknown 01)
LOC-01-DIN
SV-TM180600
LOC-03 ISO
SPK02A1016$$$$
LOC-03 (CCFMS Connection code form)
02
LOC-03 (CCSMS Connection code style)
3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or
LOC-03 (CCTMS Connection code type)
SPK Spindle nose mounting
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
1016
LOC-03 (DCONMS Diameter)
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SPK10160213
LPR (Protruding length)
119 mm
MIID (Master insert identification)
SPMT1810-BM

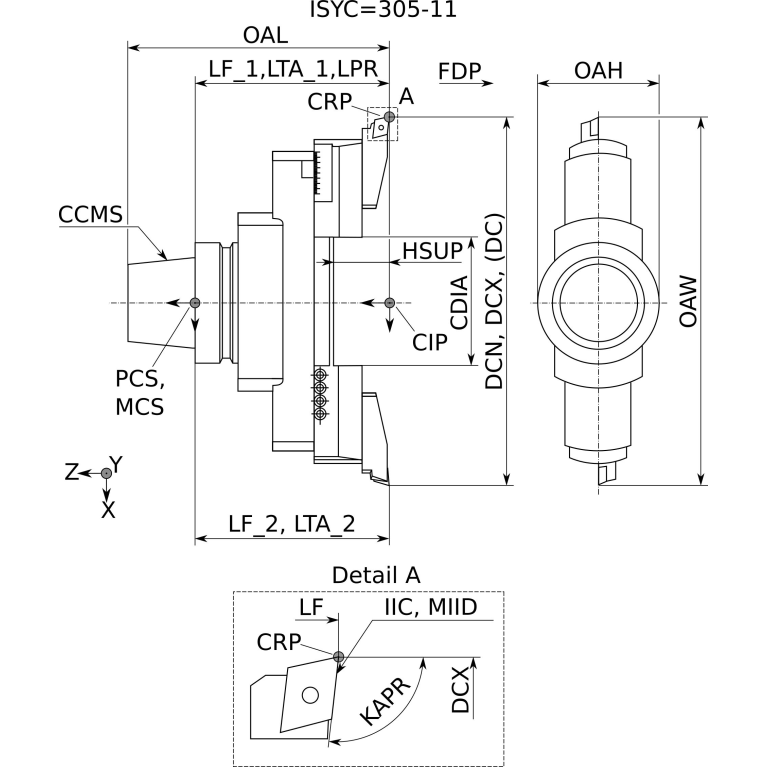

OAL (Overall length)
119 mm
RPMX (Rotational speed maximum)
1011 1/min
Working process
BAB - Open by boring
WT (Weight of item)
13.131 kg
ZEFP (Peripheral effective cutting edge count)
2
