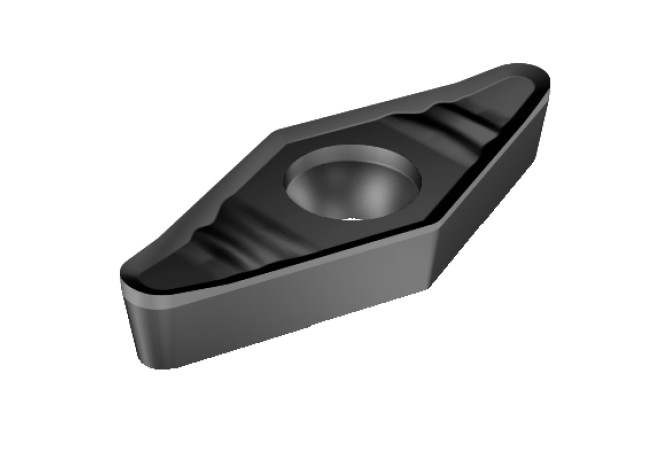

VCGX 22 05 30-AL 1105
VCGX 22 05 30-AL 1105
Артикул:
6075412
В наличии
0 ₽
Характеристики

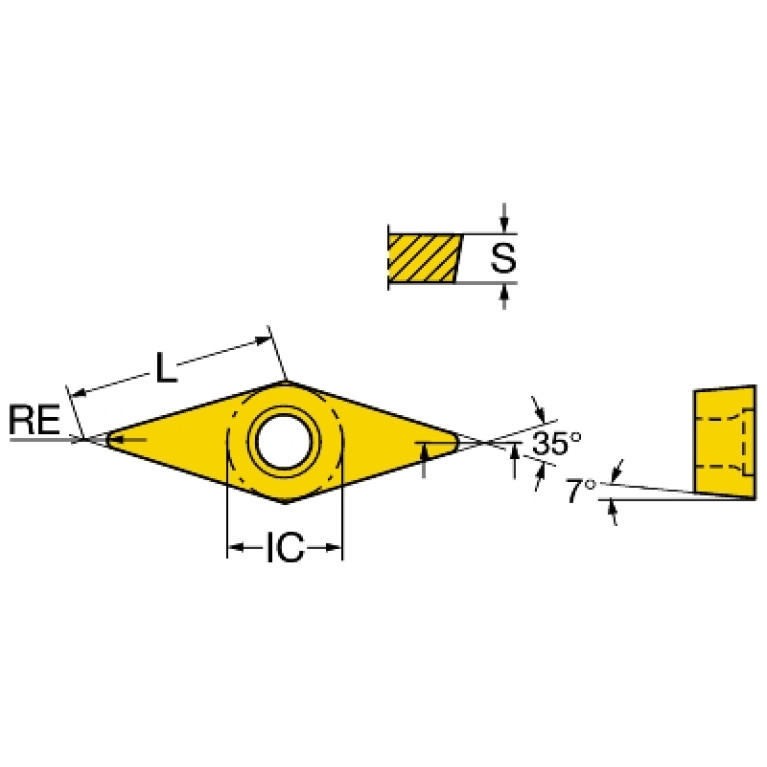

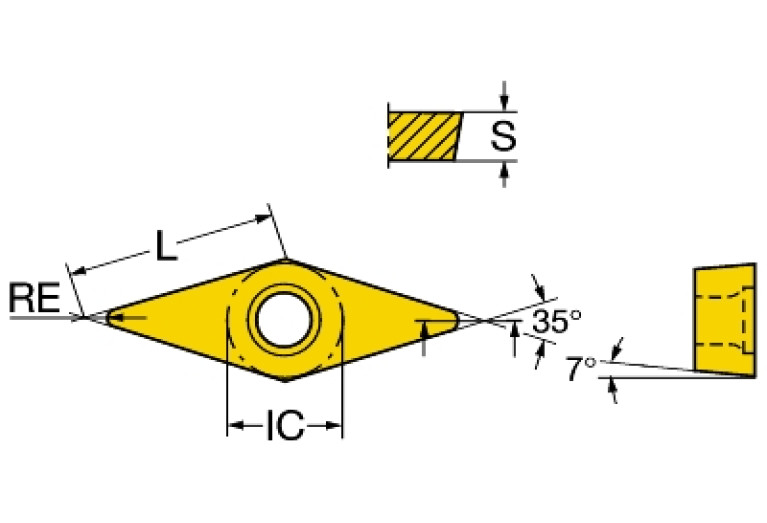

AN (Clearance angle major)
7 Degree
CB (Chip breaker face count)
1 - With chip breaker one-side
CBMD (Chip breaker manufacturers designation)
AL
CECC (Cutting edge condition code)
F - Sharpedged
COATN (Coating)
PVD TIALN
D1 (Fixing hole diameter)
5.5 mm
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
VC2205303N
EPSR (Insert included angle)
35 Degree
GRDMFG (Grade manufacturers designation)
1105
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
12.7 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$VC2205303NB$$30
L (Cutting edge length)
22.142 mm
LE (Cutting edge effective length)
19.142 mm
LOC-03 ISO
ISO$VC2205303NB$$30
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
VC2205303N
Materials
M,S
MIID (Master insert identification)
VCGX220530 1105
NOI (Insert index count)
2
RE (Corner radius)
3 mm
S (Insert thickness)
5.556 mm
S1 (Insert thickness total)
5.556 mm
STDDES (Standard designation)
VCGX220530
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
G
Working process
No working processes available
WT (Weight of item)
0.014 kg
