Главная Инструменты 201-03 - Rhombic insert VCEX 11 03 01L-F 1205

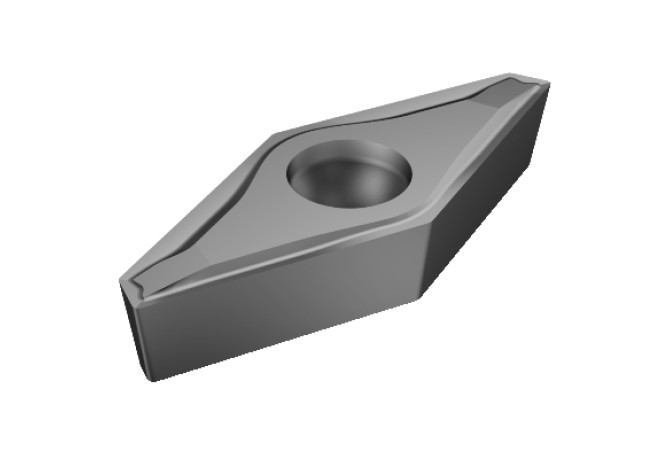

VCEX 11 03 01L-F 1205

Артикул: 8432368

В наличии

0 ₽

В корзину

Описание

Характеристики

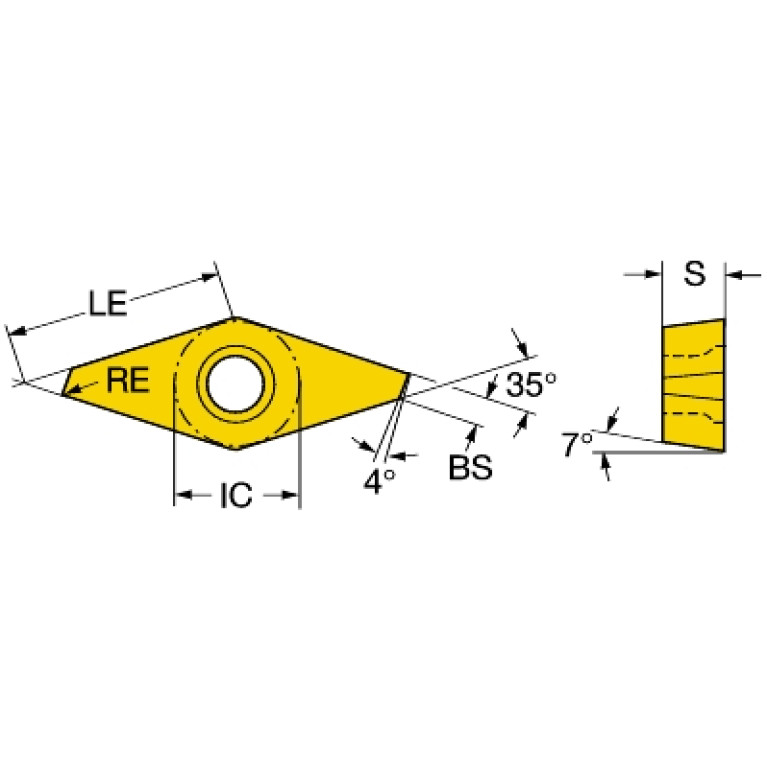

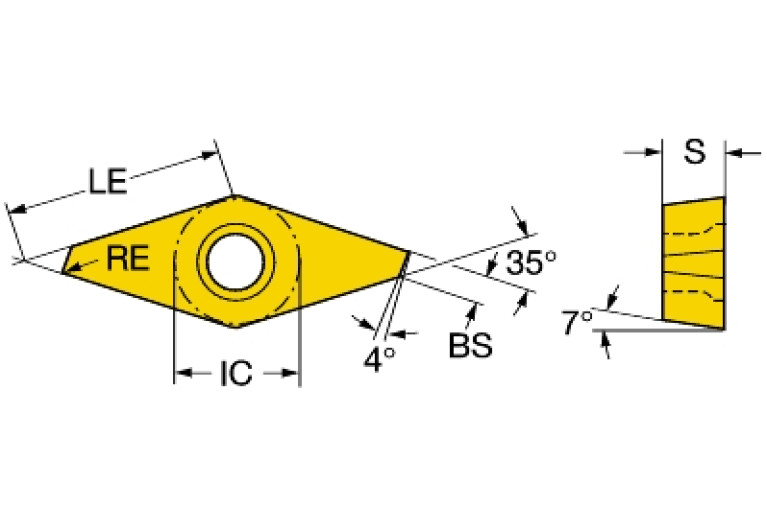

AN (Clearance angle major)

7 Degree

BS (Wiper edge length)

1.22 mm

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

F - Sharpedged

COATN (Coating)

AlTiN

D1 (Fixing hole diameter)

2.8 mm

Delivery state

LH - Stocked

Delivery state valid from

6/1/2024

DIN

VC1103013L

EPSR (Insert included angle)

35 Degree

GRDMFG (Grade manufacturers designation)

1205

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

6.35 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

L - Left

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$VC1103013LB$$01

L (Cutting edge length)

11.071 mm

LE (Cutting edge effective length)

10.971 mm

LOC-03 ISO

ISO$VC1103013LB$$01

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VC1103013L

Materials

P,M,S

MIID (Master insert identification)

VCEX110301 1205

NOI (Insert index count)

RE (Corner radius)

0.1 mm

S (Insert thickness)

3.175 mm

S1 (Insert thickness total)

3.175 mm

STDDES (Standard designation)

VCEX110301

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.004 kg
