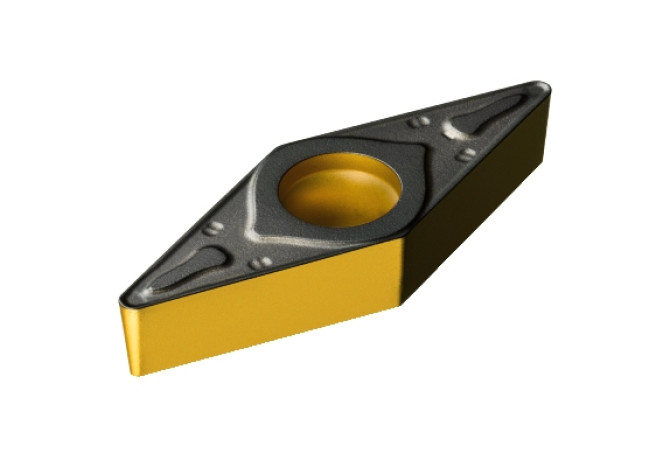

Главная Инструменты 201-03 - Rhombic insert VBMT 16 04 12-PR 4305

VBMT 16 04 12-PR 4305

Артикул: 6709552

В наличии

0 ₽

В корзину

Описание

Характеристики

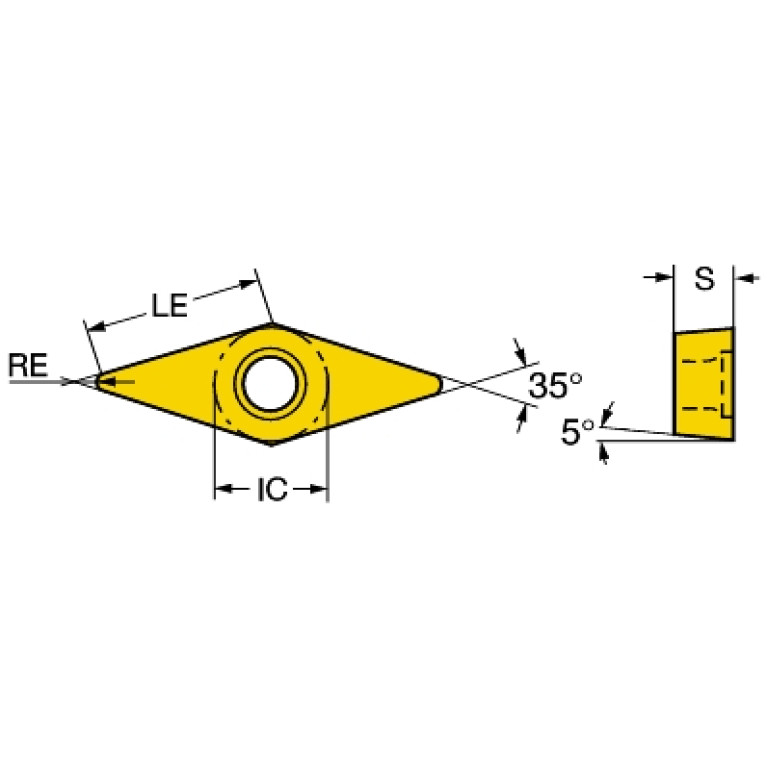

AN (Clearance angle major)

5 Degree

BN (Face land width)

0.1 mm

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

4.4 mm

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

VB1604123N

EPSR (Insert included angle)

35 Degree

GRDMFG (Grade manufacturers designation)

4305

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

9.525 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$VB1604123NB$$12

L (Cutting edge length)

16.606 mm

LE (Cutting edge effective length)

15.406 mm

LOC-03 ISO

ISO$VB1604123NB$$12

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VB1604123N

Materials

P,K

MIID (Master insert identification)

VBMT160412 4305

NOI (Insert index count)

RE (Corner radius)

1.191 mm

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

STDDES (Standard designation)

VBMT160412

STDDESAnsi (Standard designation ANSI)

VBMT333

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.009 kg
