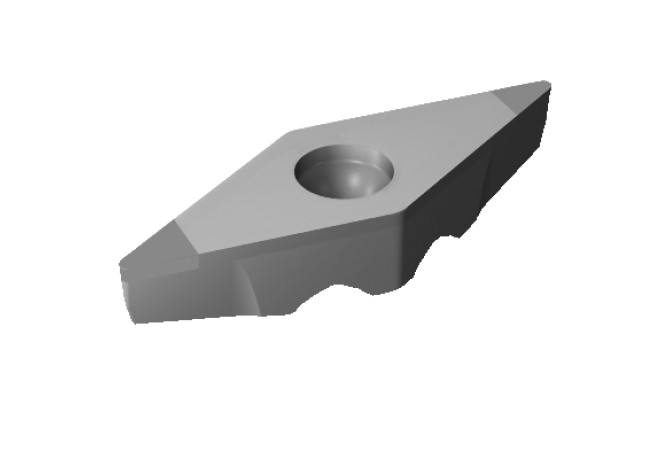

Главная Инструменты 201-03 - Rhombic insert TR-VB1312EF 7014

TR-VB1312EF 7014

Артикул: 7992860

В наличии

0 ₽

В корзину

Описание

Характеристики

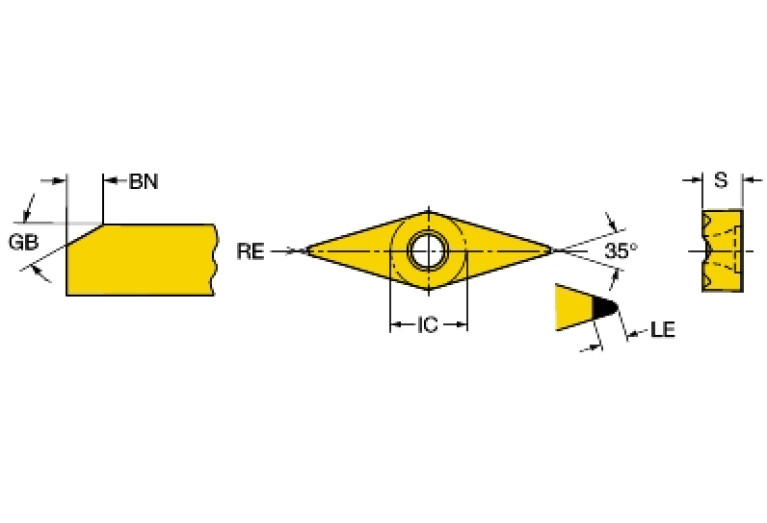

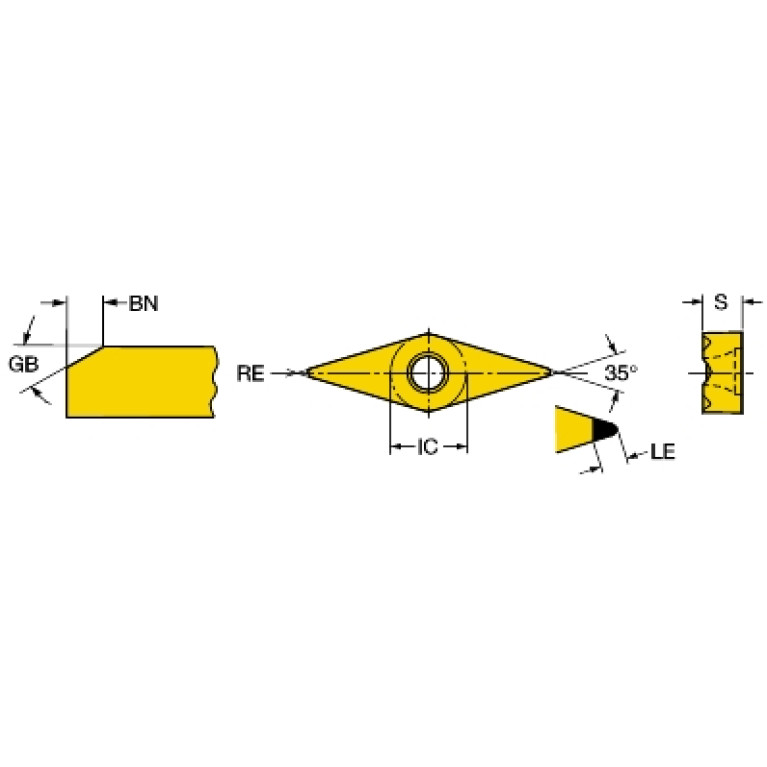

AN (Clearance angle major)

5 Degree

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

D1 (Fixing hole diameter)

3.4 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SV-TH130000

EPSR (Insert included angle)

35 Degree

GAN (Insert rake angle)

0 Degree

GRDMFG (Grade manufacturers designation)

7014

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

8 mm

IFS (Insert mounting style code)

0 - Various

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$TH13$$128NB$$12

L (Cutting edge length)

13 mm

LE (Cutting edge effective length)

2.13 mm

LOC-03 ISO

SV$$TH13$$128NB$$12

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-TH130000

Materials

NOI (Insert index count)

RE (Corner radius)

1.191 mm

S (Insert thickness)

4.525 mm

S1 (Insert thickness total)

4.525 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.005 kg
