TR-VB1304-F H13A
TR-VB1304-F H13A
Артикул:
5755409
В наличии
0 ₽

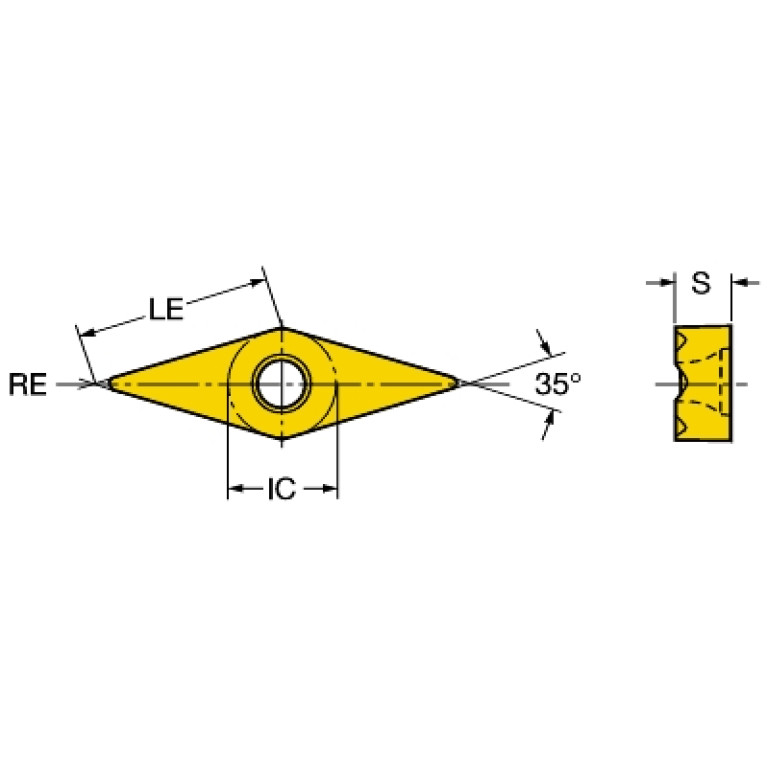

Характеристики
AN (Clearance angle major)
5 Degree
BN (Face land width)
0.07 mm
CBMD (Chip breaker manufacturers designation)
F
CECC (Cutting edge condition code)
E - Rounded
D1 (Fixing hole diameter)
3.4 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
SV-TH130000
EPSR (Insert included angle)
35 Degree
GAN (Insert rake angle)
18 Degree
GRDMFG (Grade manufacturers designation)
H13A
GRDPRIO (Standard designation of the grade main application)
HW
IC (Inscribed circle diameter)
8 mm
IFS (Insert mounting style code)
0 - Various
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$TH13$$048NB$$04
L (Cutting edge length)
13 mm
LE (Cutting edge effective length)
12.6 mm
LOC-03 ISO
SV$$TH13$$048NB$$04
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-TH130000
Materials
P,M,K,S
NOI (Insert index count)
2
RE (Corner radius)
0.397 mm
S (Insert thickness)
4.525 mm
S1 (Insert thickness total)
4.525 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.006 kg
