Главная Инструменты 201-03 - Rhombic insert TR-DC1308S01020F 7105

TR-DC1308S01020F 7105

Артикул: 7105992

В наличии

0 ₽

В корзину

Описание

Характеристики

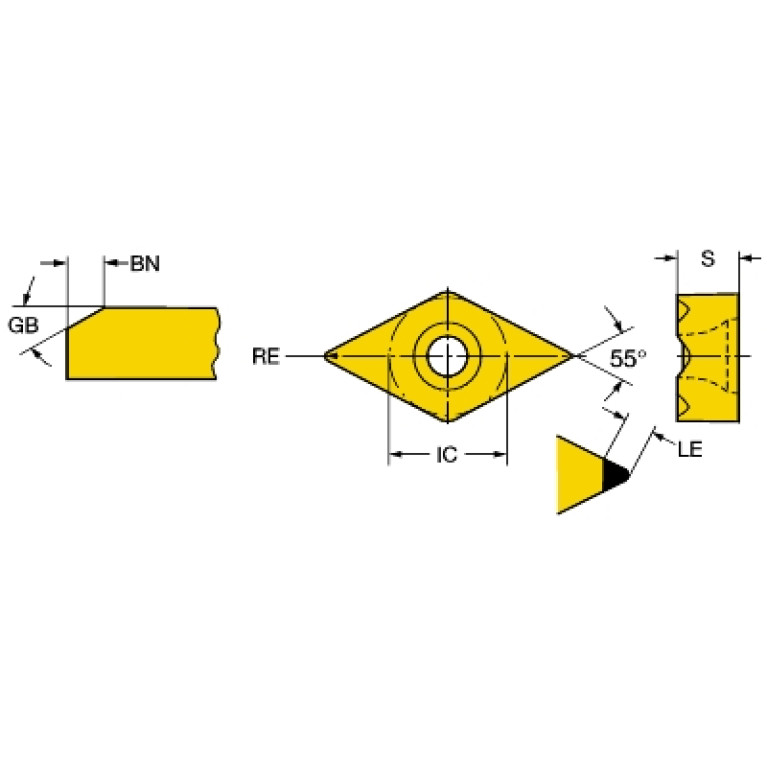

AN (Clearance angle major)

7 Degree

BN (Face land width)

0.1 mm

CECC (Cutting edge condition code)

S - Chamfered and rounded

COATN (Coating)

PVD TiN

D1 (Fixing hole diameter)

3.7 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SV-TD130000

EPSR (Insert included angle)

55 Degree

GAN (Insert rake angle)

0 Degree

GB (Face land angle)

20 Degree

GRDMFG (Grade manufacturers designation)

7105

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

11 mm

IFS (Insert mounting style code)

0 - Various

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$TD13$$088NB$$08

L (Cutting edge length)

13 mm

LE (Cutting edge effective length)

2.5 mm

LOC-03 ISO

SV$$TD13$$088NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-TD130000

Materials

NOI (Insert index count)

RE (Corner radius)

0.8 mm

S (Insert thickness)

5.525 mm

S1 (Insert thickness total)

5.525 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.009 kg
