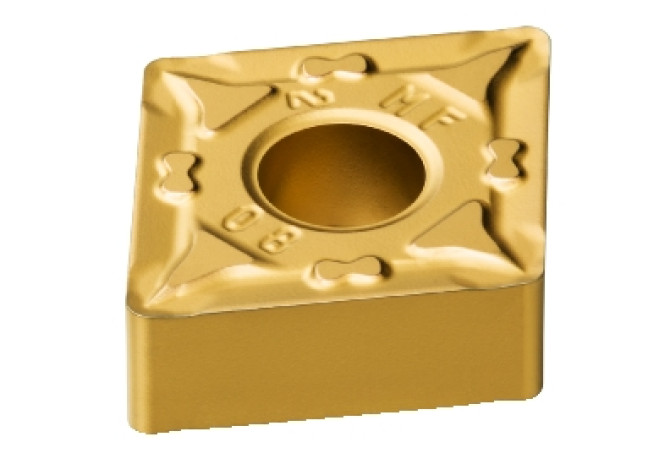

CNMG 09 03 04-MF 2025

Артикул: 6292948

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

0 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

3.81 mm

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

CN0903042N

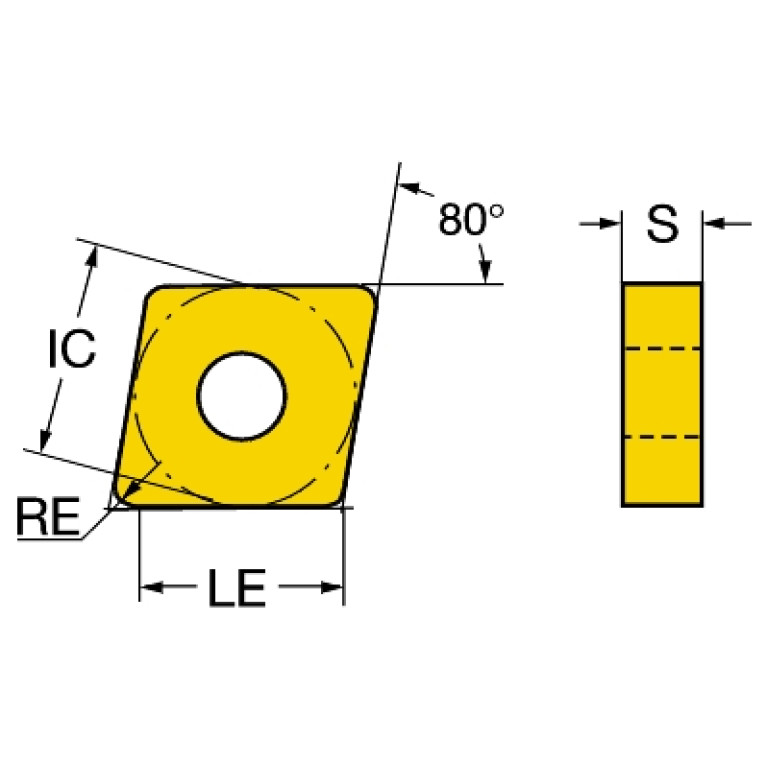

EPSR (Insert included angle)

80 Degree

GRDMFG (Grade manufacturers designation)

2025

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

9.525 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$CN0903042NB$$04

L (Cutting edge length)

9.672 mm

LE (Cutting edge effective length)

9.272 mm

LOC-03 ISO

ISO$CN0903042NB$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN0903042N

Materials

MIID (Master insert identification)

CNMG090304 2025

NOI (Insert index count)

RE (Corner radius)

0.397 mm

S (Insert thickness)

3.175 mm

S1 (Insert thickness total)

3.175 mm

STDDES (Standard designation)

CNMG090304

STDDESAnsi (Standard designation ANSI)

CNMG321

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.004 kg
