Главная Инструменты 201-03 - Rhombic insert CNMA 19 06 12-KR 3225

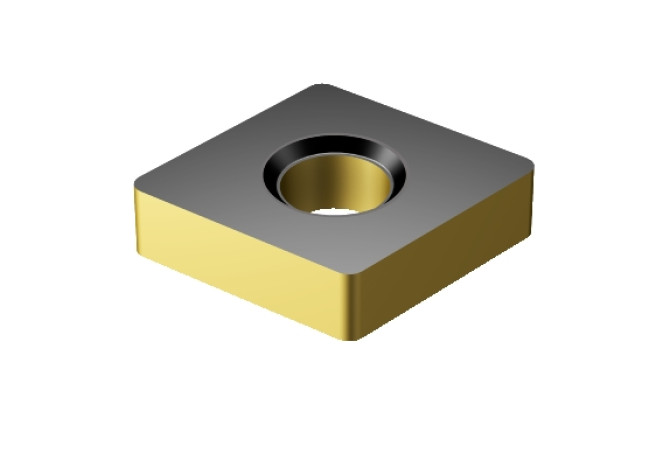

CNMA 19 06 12-KR 3225

Артикул: 6868585

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

0 Degree

CB (Chip breaker face count)

0 - Without chip breaker

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

7.925 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

CN1906122N

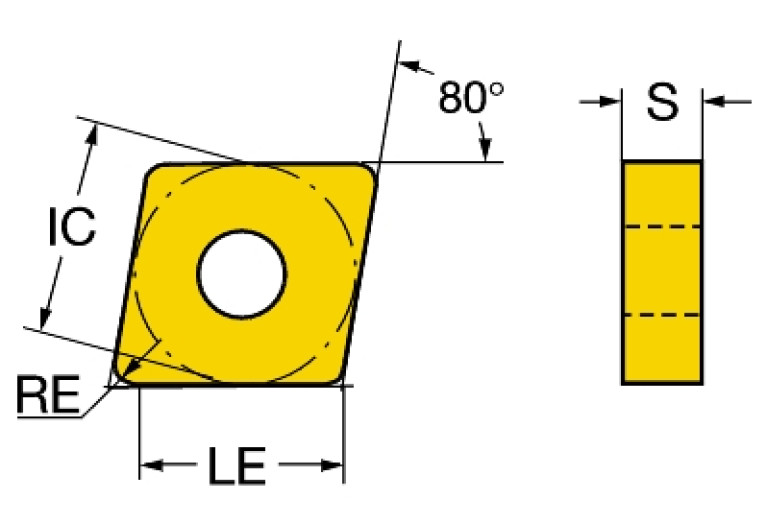

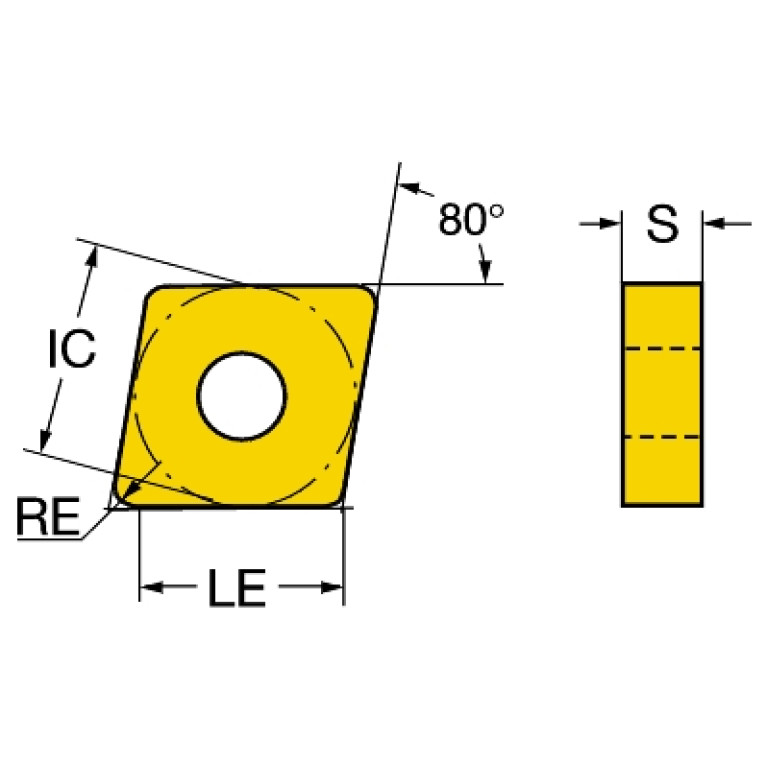

EPSR (Insert included angle)

80 Degree

GRDMFG (Grade manufacturers designation)

3225

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

19.05 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$CN1906122NA$$12

L (Cutting edge length)

19.344 mm

LE (Cutting edge effective length)

18.144 mm

LOC-03 ISO

ISO$CN1906122NA$$12

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN1906122N

Materials

MIID (Master insert identification)

CNMA190612 3225

NOI (Insert index count)

RE (Corner radius)

1.191 mm

S (Insert thickness)

6.35 mm

S1 (Insert thickness total)

6.35 mm

STDDES (Standard designation)

CNMA190612

STDDESAnsi (Standard designation ANSI)

CNMA643

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.03 kg
