Главная Инструменты 201-03 - Rhombic insert CNMA 12 04 04-KR 3215

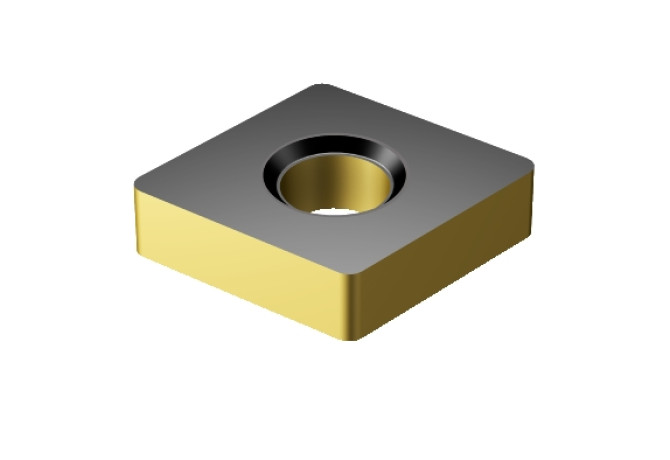

CNMA 12 04 04-KR 3215

Артикул: 5725172

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

0 Degree

CB (Chip breaker face count)

0 - Without chip breaker

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

5.156 mm

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

CN1204042N

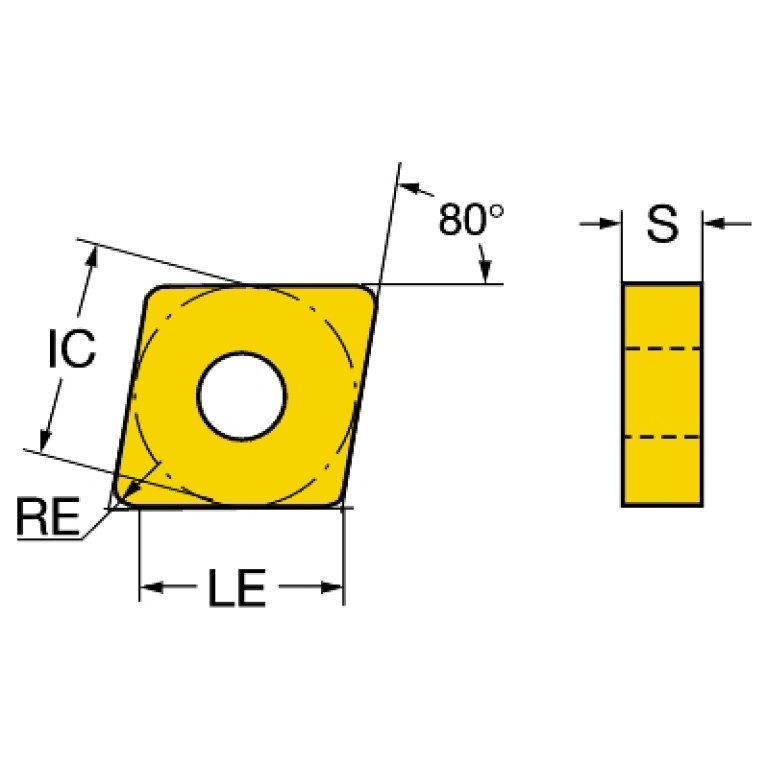

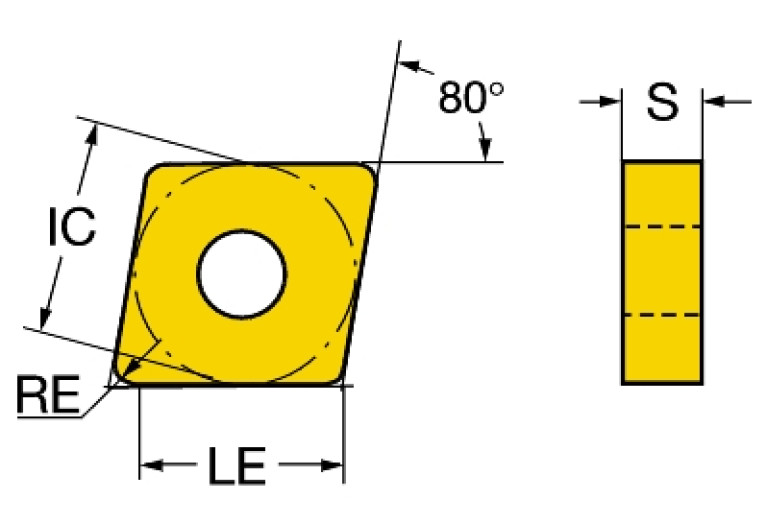

EPSR (Insert included angle)

80 Degree

GRDMFG (Grade manufacturers designation)

3215

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$CN1204042NA$$04

L (Cutting edge length)

12.896 mm

LE (Cutting edge effective length)

12.496 mm

LOC-03 ISO

ISO$CN1204042NA$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN1204042N

Materials

MIID (Master insert identification)

CNMA120404 3215

NOI (Insert index count)

RE (Corner radius)

0.397 mm

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

STDDES (Standard designation)

CNMA120404

STDDESAnsi (Standard designation ANSI)

CNMA431

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.011 kg
