Главная Инструменты 201-03 - Rhombic insert CNGQ120716T02520 6190

CNGQ120716T02520 6190

Артикул: 5725194

В наличии

0 ₽

В корзину

Описание

Характеристики

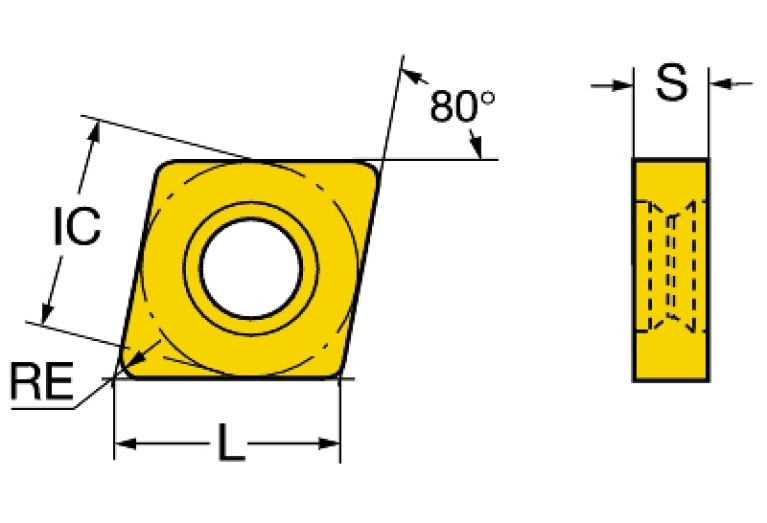

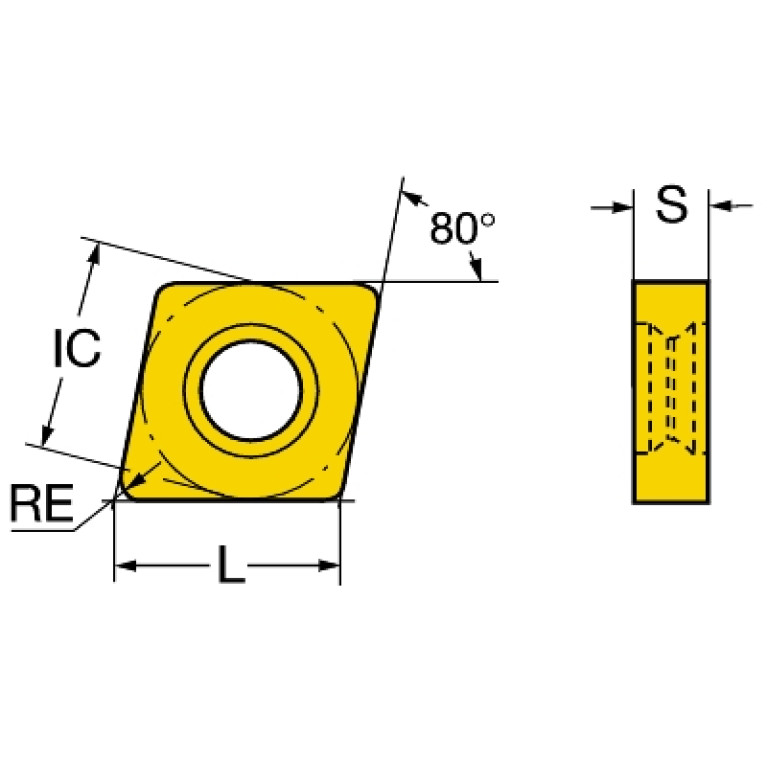

AN (Clearance angle major)

0 Degree

BN (Face land width)

0.25 mm

CB (Chip breaker face count)

0 - Without chip breaker

CECC (Cutting edge condition code)

T - Chamfered

D1 (Fixing hole diameter)

5.156 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

CN1207165N

EPSR (Insert included angle)

80 Degree

GB (Face land angle)

20 Degree

GRDMFG (Grade manufacturers designation)

6190

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

5 - Special production, e.g. trough clamping

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$CN1207165NA$$16

L (Cutting edge length)

12.896 mm

LE (Cutting edge effective length)

11.296 mm

LOC-03 ISO

ISO$CN1207165NA$$16

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN1207165N

Materials

MIID (Master insert identification)

CNGQ120716 6190

NOI (Insert index count)

RE (Corner radius)

1.588 mm

S (Insert thickness)

7.938 mm

S1 (Insert thickness total)

7.938 mm

STDDES (Standard designation)

CNGQ120716

STDDESAnsi (Standard designation ANSI)

CNGQ454

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.004 kg
