Главная Инструменты 201-03 - Rhombic insert CCMT 38 09 32-XH 4325

CCMT 38 09 32-XH 4325

Артикул: 6532156

В наличии

0 ₽

В корзину

Описание

Характеристики

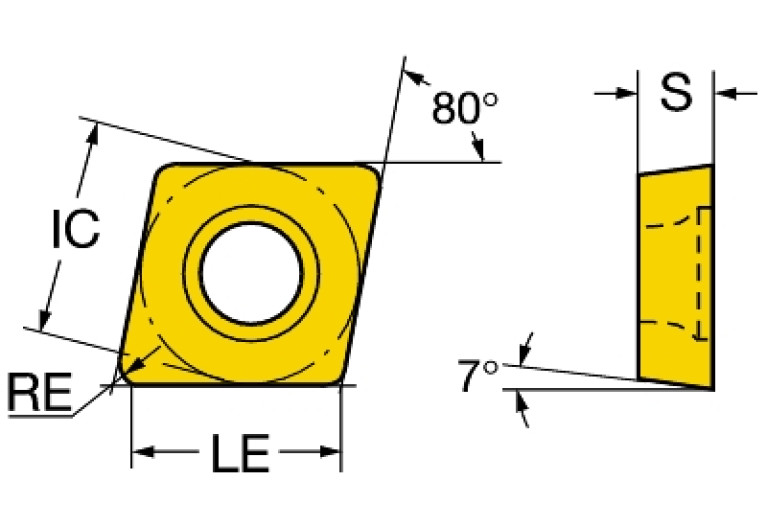

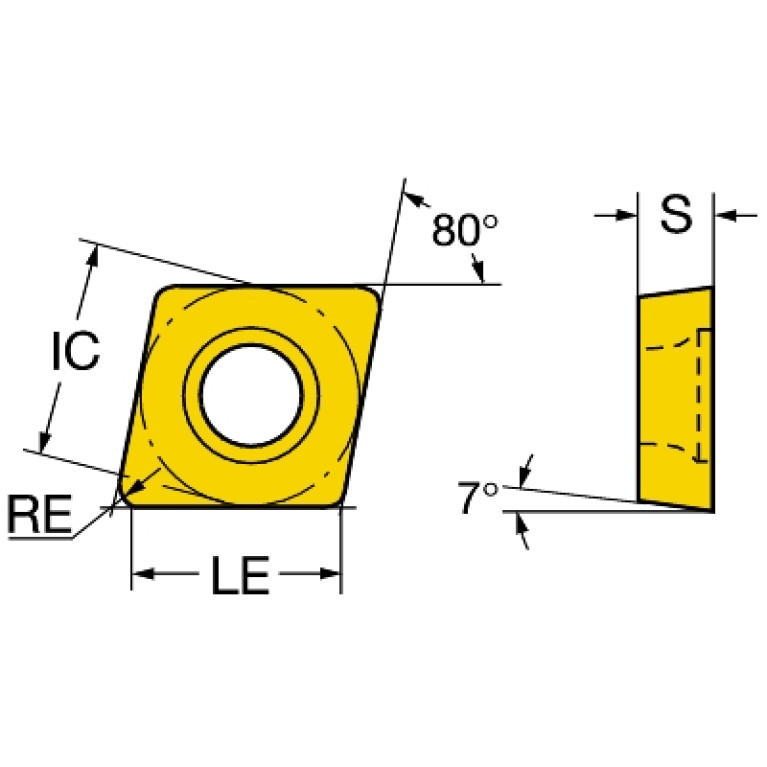

AN (Clearance angle major)

7 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

9 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

CC3809323N

EPSR (Insert included angle)

80 Degree

GRDMFG (Grade manufacturers designation)

4325

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

38.1 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$CC3809323NB$$32

L (Cutting edge length)

38.688 mm

LE (Cutting edge effective length)

38 mm

LOC-03 ISO

ISO$CC3809323NB$$32

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC3809323N

Materials

P,K

MIID (Master insert identification)

CCMT380932 4325

NOI (Insert index count)

RE (Corner radius)

3.175 mm

S (Insert thickness)

9.525 mm

S1 (Insert thickness total)

9.525 mm

STDDES (Standard designation)

CCMT380932

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.17 kg
