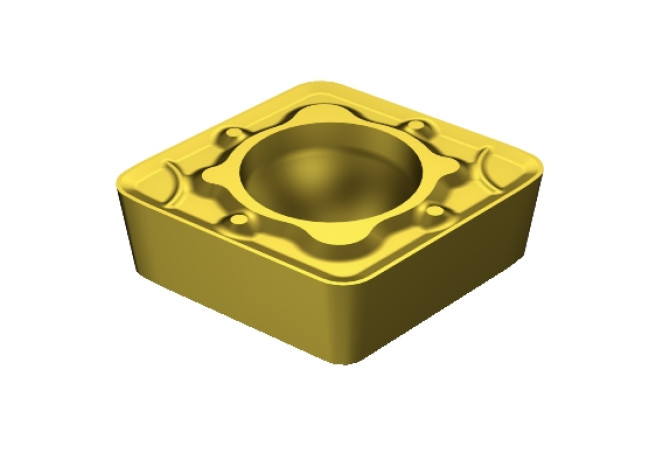

CCMT 12 04 08-WM 3005
CCMT 12 04 08-WM 3005
Артикул:
5725054
В наличии
0 ₽

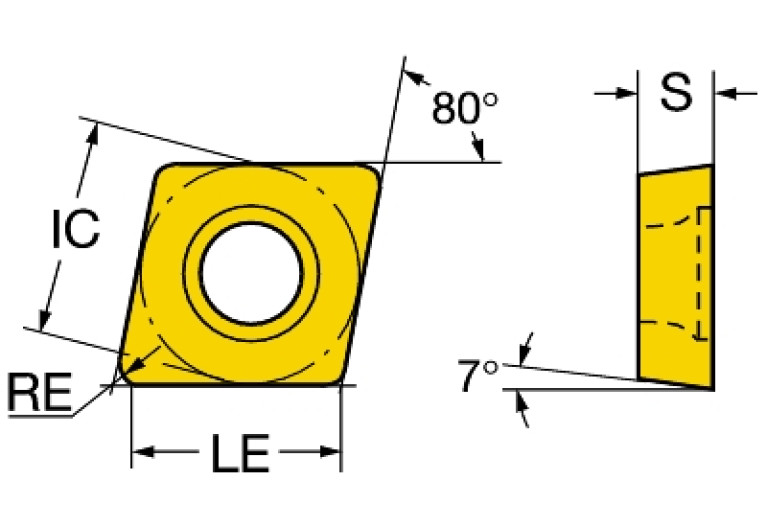

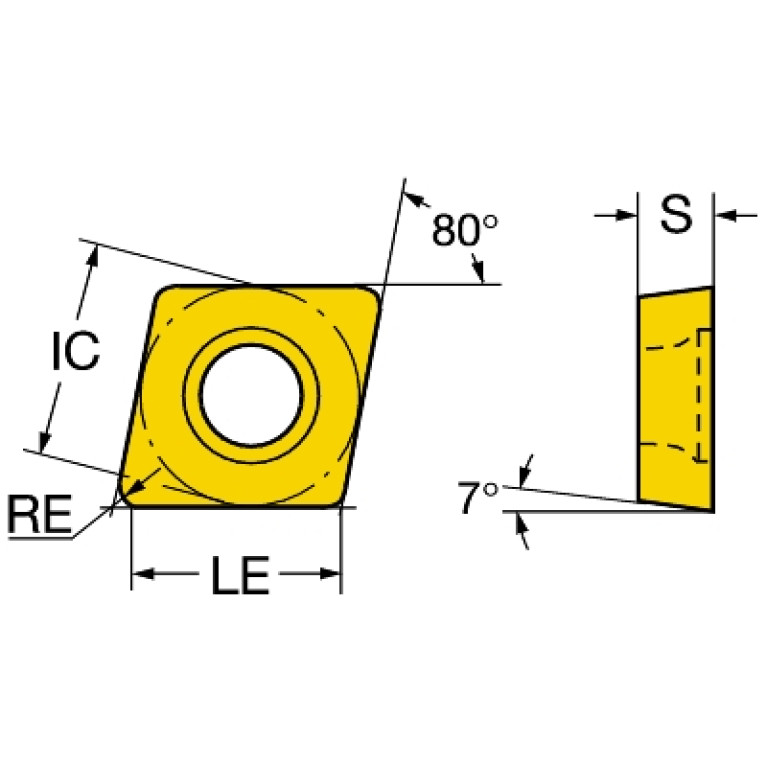

Характеристики
AN (Clearance angle major)
7 Degree
BN (Face land width)
0.14 mm
BS (Wiper edge length)
0.71 mm
CB (Chip breaker face count)
1 - With chip breaker one-side
CBMD (Chip breaker manufacturers designation)
WM
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
CVD TiCN+Al2O3+TiN
D1 (Fixing hole diameter)
5.5 mm
Delivery state valid from
12/1/2023
DIN
CC1204083N
EPSR (Insert included angle)
80 Degree
GAN (Insert rake angle)
18 Degree
GRDMFG (Grade manufacturers designation)
3005
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
12.7 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$CC1204083NB$$08
KRINS (Cutting edge angle major)
95 Degree
L (Cutting edge length)
12.896 mm
LE (Cutting edge effective length)
12.096 mm
LOC-03 ISO
ISO$CC1204083NB$$08
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
CC1204083N
Materials
P,K
MIID (Master insert identification)
CCMT120408 3005
NOI (Insert index count)
2
RE (Corner radius)
0.794 mm
S (Insert thickness)
4.763 mm
S1 (Insert thickness total)
4.763 mm
STDDES (Standard designation)
CCMT120408
STDDESAnsi (Standard designation ANSI)
CCMT432
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.008 kg
