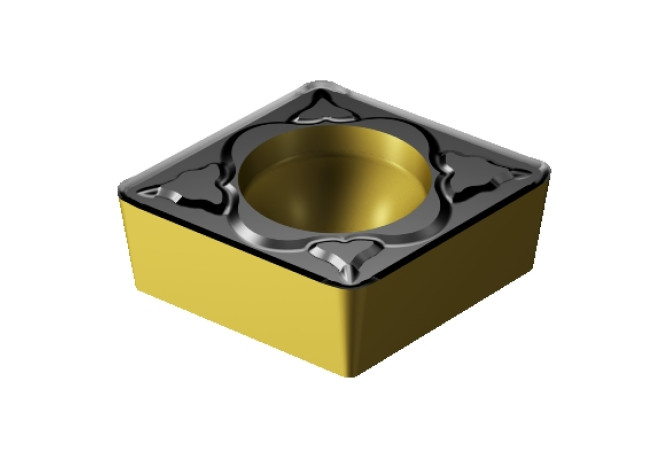

Главная Инструменты 201-03 - Rhombic insert CCMT 12 04 08-KM 3210

CCMT 12 04 08-KM 3210

Артикул: 5723499

В наличии

0 ₽

В корзину

Описание

Характеристики

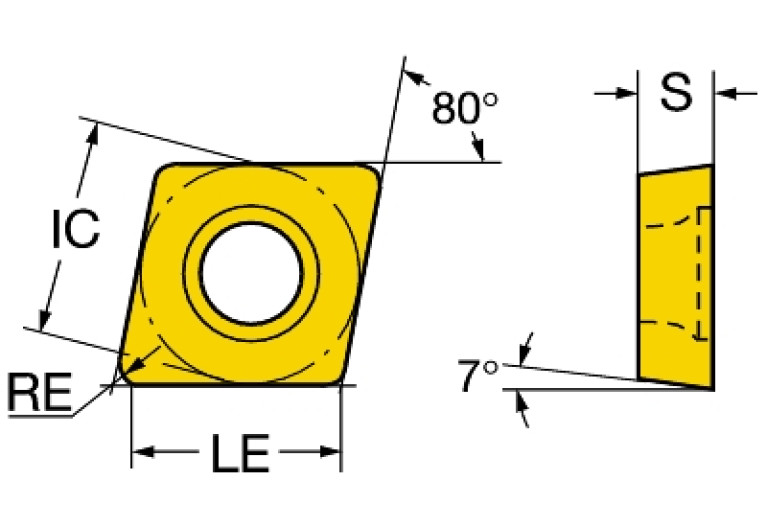

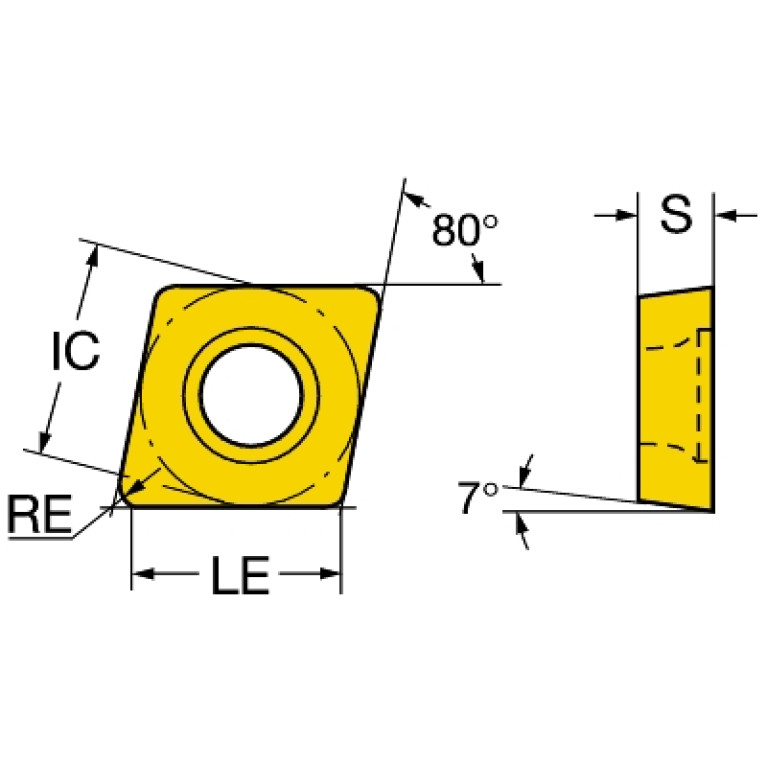

AN (Clearance angle major)

7 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

5.5 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

CC1204083N

EPSR (Insert included angle)

80 Degree

GAN (Insert rake angle)

7 Degree

GRDMFG (Grade manufacturers designation)

3210

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$CC1204083NB$$08

L (Cutting edge length)

12.896 mm

LE (Cutting edge effective length)

12.096 mm

LOC-03 ISO

ISO$CC1204083NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC1204083N

Materials

MIID (Master insert identification)

CCMT120408 3210

NOI (Insert index count)

RE (Corner radius)

0.794 mm

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

STDDES (Standard designation)

CCMT120408

STDDESAnsi (Standard designation ANSI)

CCMT432

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.008 kg
