Главная Инструменты 201-03 - Rhombic insert CCMT 06 02 08-KR 3225

CCMT 06 02 08-KR 3225

Артикул: 6868234

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

7 Degree

BN (Face land width)

0.1 mm

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

2.8 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

CC0602083N

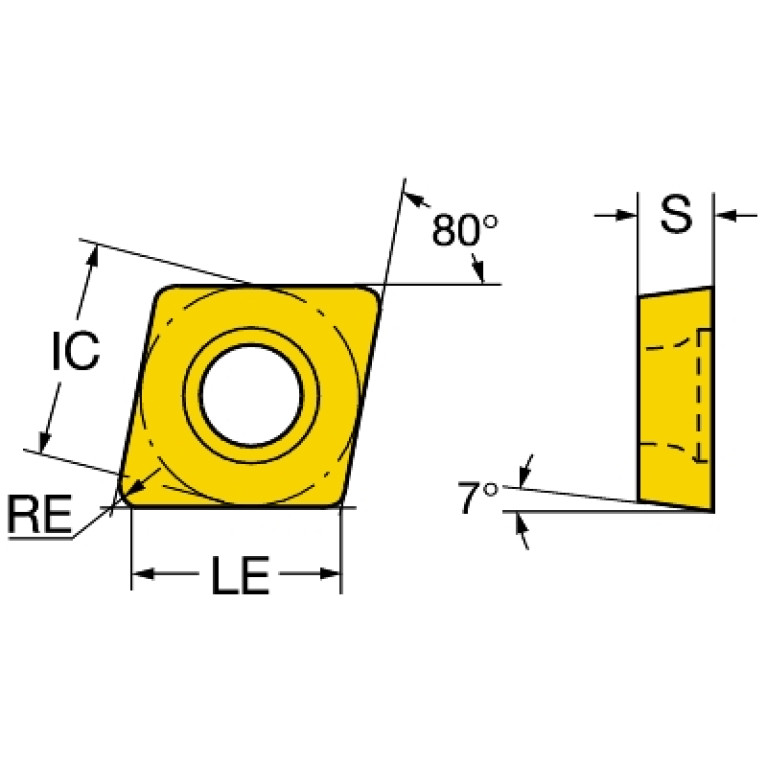

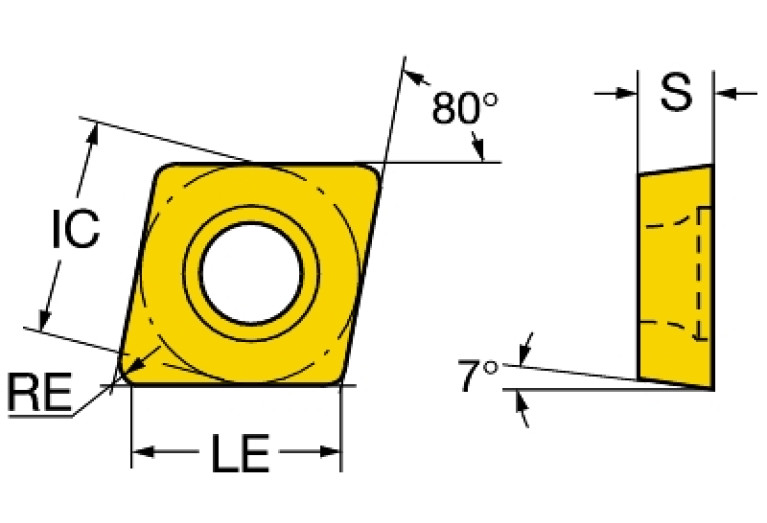

EPSR (Insert included angle)

80 Degree

GRDMFG (Grade manufacturers designation)

3225

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

6.35 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$CC0602083NB$$08

L (Cutting edge length)

6.448 mm

LE (Cutting edge effective length)

5.648 mm

LOC-03 ISO

ISO$CC0602083NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CC0602083N

Materials

MIID (Master insert identification)

CCMT060208 3225

NOI (Insert index count)

RE (Corner radius)

0.794 mm

S (Insert thickness)

2.381 mm

S1 (Insert thickness total)

2.381 mm

STDDES (Standard designation)

CCMT060208

STDDESAnsi (Standard designation ANSI)

CCMT21.52

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.001 kg
