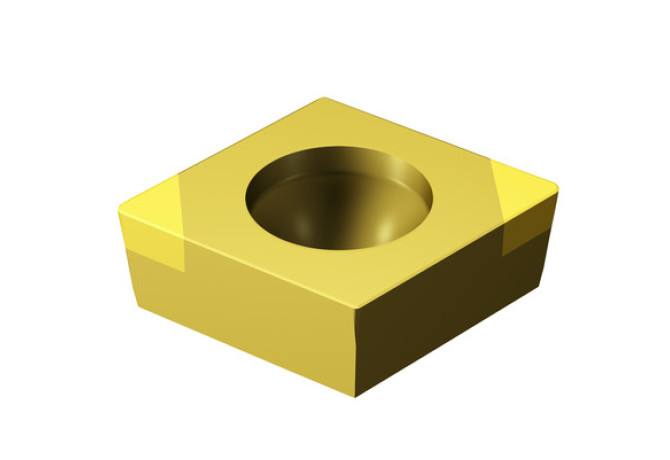

Главная Инструменты 201-03 - Rhombic insert CCGW060204S01020F 7115

CCGW060204S01020F 7115

CCGW060204S01020F 7115 CCGW060204S01020F 7115 CCGW060204S01020F 7115

CCGW060204S01020F 7115

SV - Sandvik-Coromant
Артикул: 7106070
В наличии
0 ₽
В корзину
Описание
Характеристики

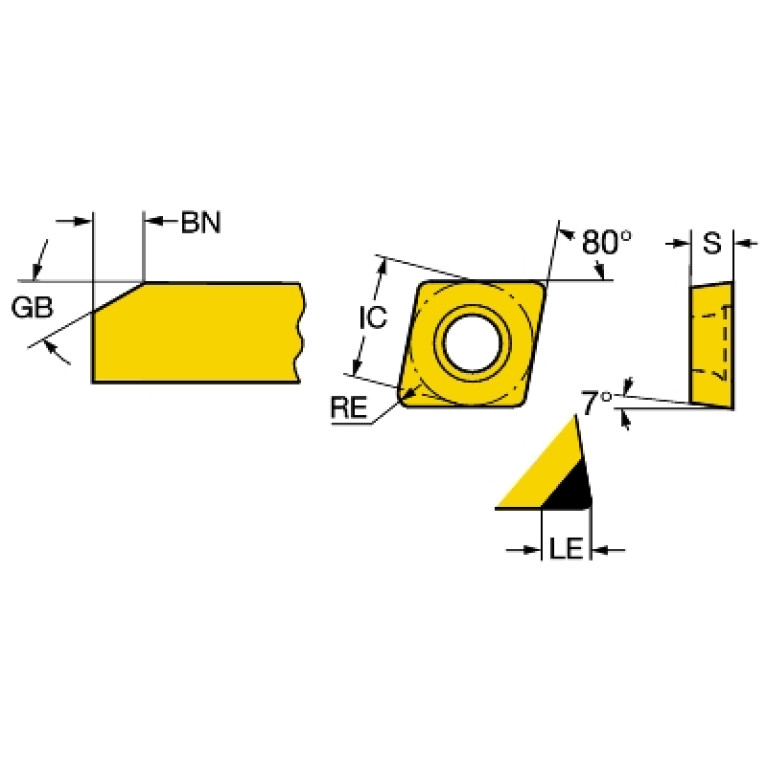

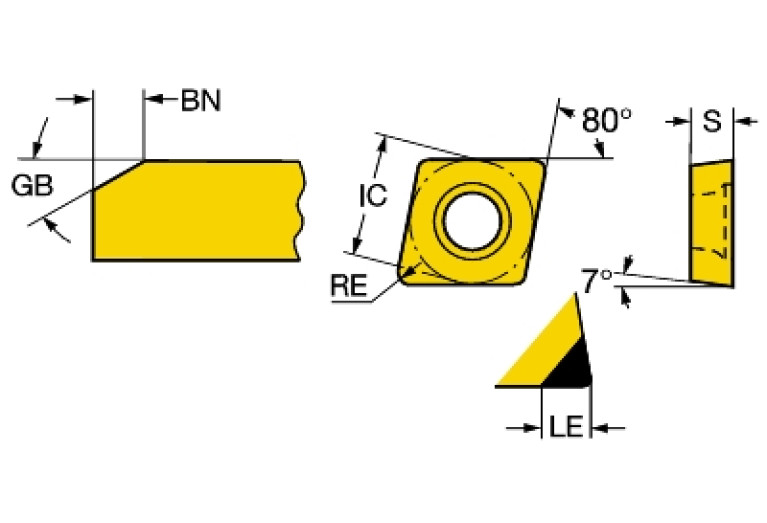

AN (Clearance angle major)
7 Degree
BN (Face land width)
0.1 mm
CB (Chip breaker face count)
0 - Without chip breaker
CECC (Cutting edge condition code)
S - Chamfered and rounded
COATN (Coating)
PVD TiN
D1 (Fixing hole diameter)
2.8 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
CC0602043N
EPSR (Insert included angle)
80 Degree
GB (Face land angle)
20 Degree
GRDMFG (Grade manufacturers designation)
7115
GRDPRIO (Standard designation of the grade main application)
BC
IC (Inscribed circle diameter)
6.35 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$CC0602043NA$$04
L (Cutting edge length)
6.448 mm
LE (Cutting edge effective length)
2.58 mm
LOC-03 ISO
ISO$CC0602043NA$$04
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
CC0602043N
Materials
H
MIID (Master insert identification)
CCGW060204 7115
NOI (Insert index count)
2
RE (Corner radius)
0.4 mm
S (Insert thickness)
2.381 mm
S1 (Insert thickness total)
2.381 mm
STDDES (Standard designation)
CCGW060204
STDDESAnsi (Standard designation ANSI)
CCGW21.51
TCE (Tipped cutting edge code)
B
TCINS (Tolerance class insert)
G
Working process
No working processes available
WT (Weight of item)
0.003 kg
