Главная Инструменты 201-03 - Rhombic insert CCGT 09 T3 04-UM 1105

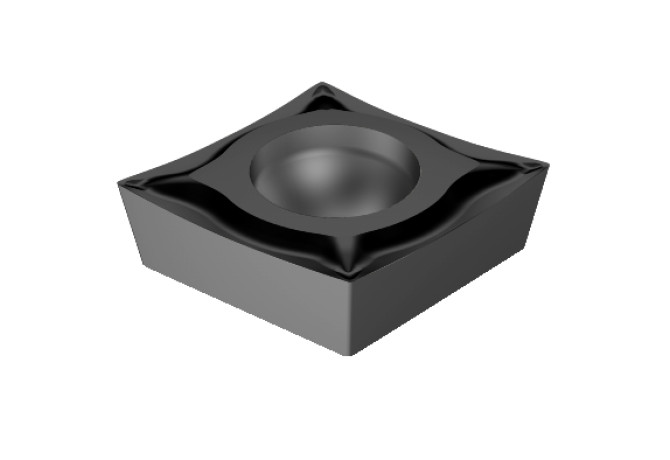

CCGT 09 T3 04-UM 1105

CCGT 09 T3 04-UM 1105 CCGT 09 T3 04-UM 1105 CCGT 09 T3 04-UM 1105

CCGT 09 T3 04-UM 1105

SV - Sandvik-Coromant
Артикул: 5722978
В наличии
0 ₽
В корзину
Описание
Характеристики
AN (Clearance angle major)
7 Degree
CB (Chip breaker face count)
1 - With chip breaker one-side
CBMD (Chip breaker manufacturers designation)
UM
CECC (Cutting edge condition code)
F - Sharpedged
COATN (Coating)
PVD TiAlN
D1 (Fixing hole diameter)
4.4 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
CC09T3043N
EPSR (Insert included angle)
80 Degree
GAN (Insert rake angle)
7 Degree
GRDMFG (Grade manufacturers designation)
1105
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
9.525 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$CC09T3043NB$$04
L (Cutting edge length)
9.672 mm
LE (Cutting edge effective length)
9.272 mm
LOC-03 ISO
ISO$CC09T3043NB$$04
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
CC09T3043N
Materials
P,M,S
MIID (Master insert identification)
CCGT09T304 1105
NOI (Insert index count)
2
RE (Corner radius)
0.397 mm
S (Insert thickness)
3.969 mm
S1 (Insert thickness total)
3.969 mm
STDDES (Standard designation)
CCGT09T304
STDDESAnsi (Standard designation ANSI)
CCGT32.51
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
G
Working process
No working processes available
WT (Weight of item)
0.004 kg
