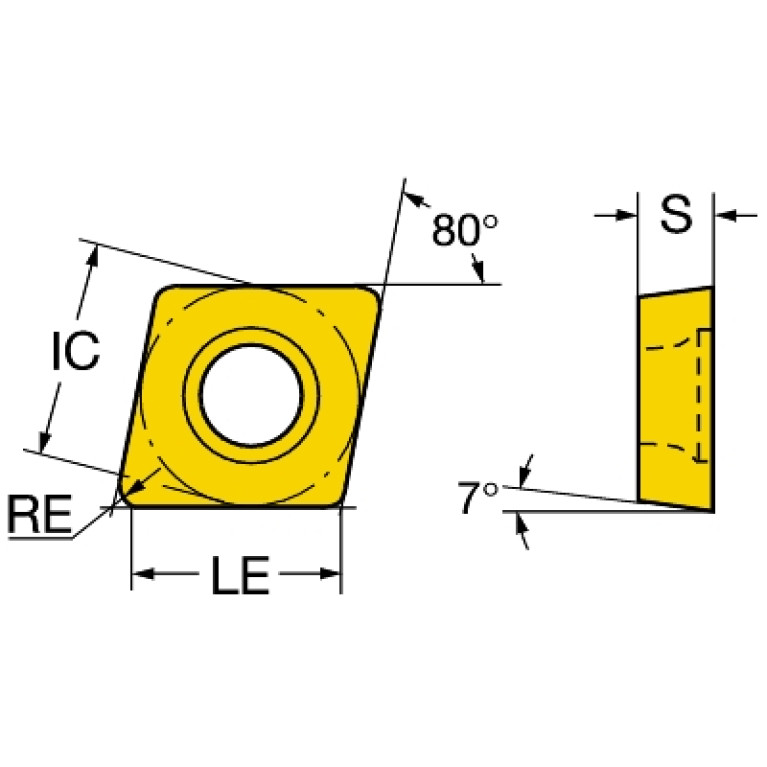

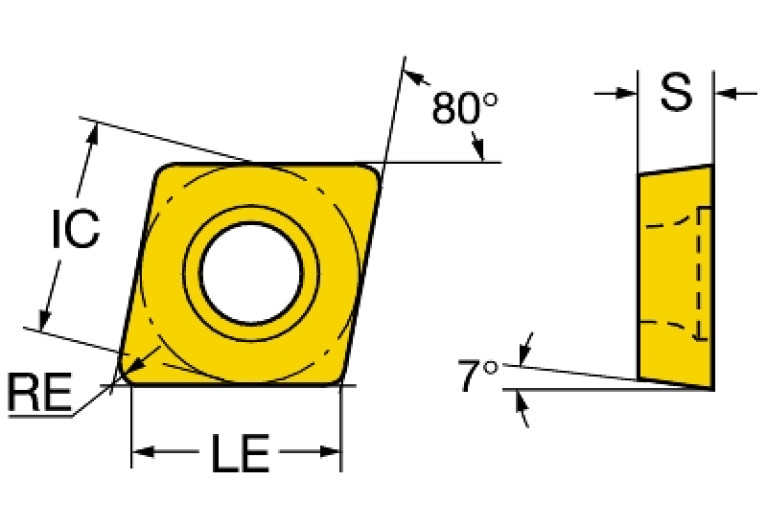

CCGT 09 T3 02-UM 1025

CCGT 09 T3 02-UM 1025 CCGT 09 T3 02-UM 1025 CCGT 09 T3 02-UM 1025

CCGT 09 T3 02-UM 1025

SV - Sandvik-Coromant
Артикул: 5724097
В наличии
0 ₽
В корзину
Описание
Характеристики
AN (Clearance angle major)
7 Degree
CB (Chip breaker face count)
1 - With chip breaker one-side
CBMD (Chip breaker manufacturers designation)
UM
CECC (Cutting edge condition code)
F - Sharpedged
COATN (Coating)
PVD TIALN+TIN
D1 (Fixing hole diameter)
4.4 mm
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
CC09T3023N
EPSR (Insert included angle)
80 Degree
GRDMFG (Grade manufacturers designation)
1025
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
9.525 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$CC09T3023NB$$02
L (Cutting edge length)
9.672 mm
LE (Cutting edge effective length)
9.472 mm
LOC-03 ISO
ISO$CC09T3023NB$$02
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
CC09T3023N
Materials
P,M,N,S
MIID (Master insert identification)
CCGT09T302 1025
NOI (Insert index count)
2
RE (Corner radius)
0.2 mm
S (Insert thickness)
3.969 mm
S1 (Insert thickness total)
3.969 mm
STDDES (Standard designation)
CCGT09T302
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
G
Working process
No working processes available
WT (Weight of item)
0.004 kg
