RA216-51 07 M-M H13A
RA216-51 07 M-M H13A
Артикул:
5738385
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
9 Degree
CBMD (Chip breaker manufacturers designation)
M-M
CECC (Cutting edge condition code)
E - Rounded

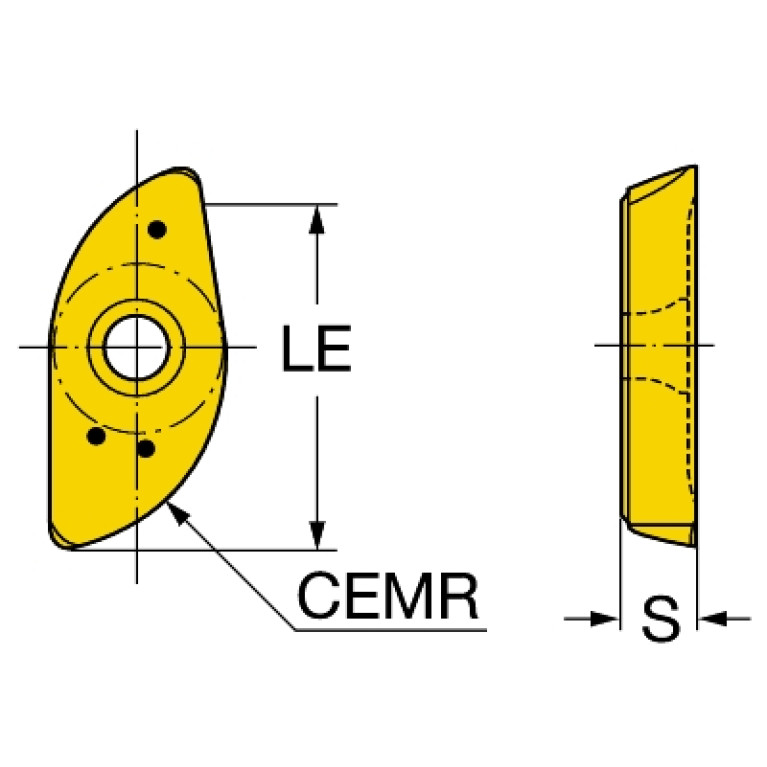

CEMR (Cutting edge major radius)
25.4 mm
D1 (Fixing hole diameter)
9 mm
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
SV-MQ510700
GAN (Insert rake angle)
0 Degree
GRDMFG (Grade manufacturers designation)
H13A
GRDPRIO (Standard designation of the grade main application)
HW
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
R - Right
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$MQ5107$$3RB$$$$
LE (Cutting edge effective length)
45.491 mm
LOC-03 ISO
SV$$MQ5107$$3RB$$$$
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-MQ510700
Materials
K,N,S
S (Insert thickness)
7.938 mm
S1 (Insert thickness total)
7.938 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.082 kg
