Главная Инструменты 201-00 - Regular Insert unspecified R590-1105H-ZC2-KL CB50

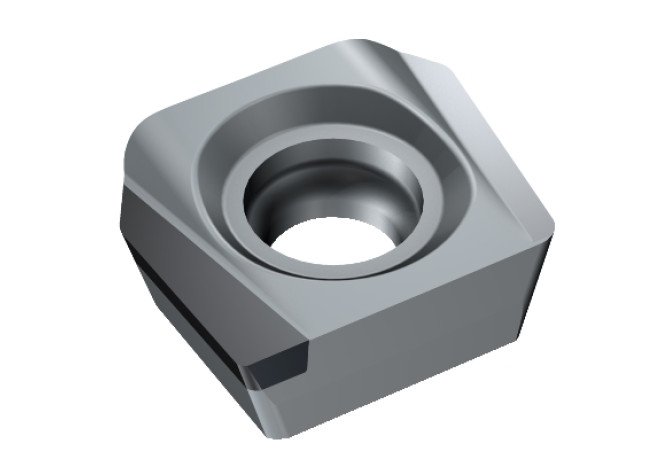

R590-1105H-ZC2-KL CB50

Артикул: 5747645

В наличии

0 ₽

В корзину

Описание

Характеристики

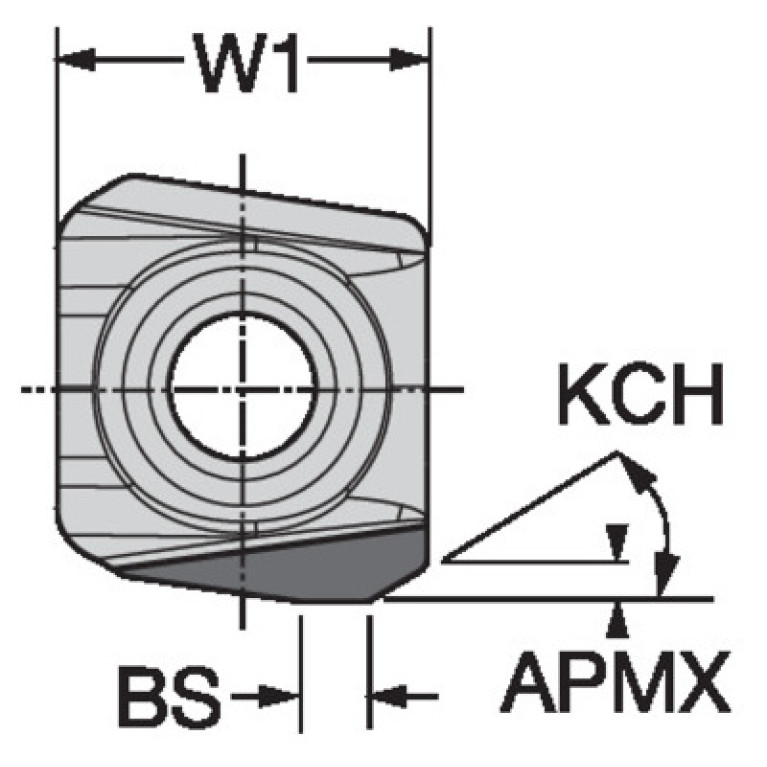

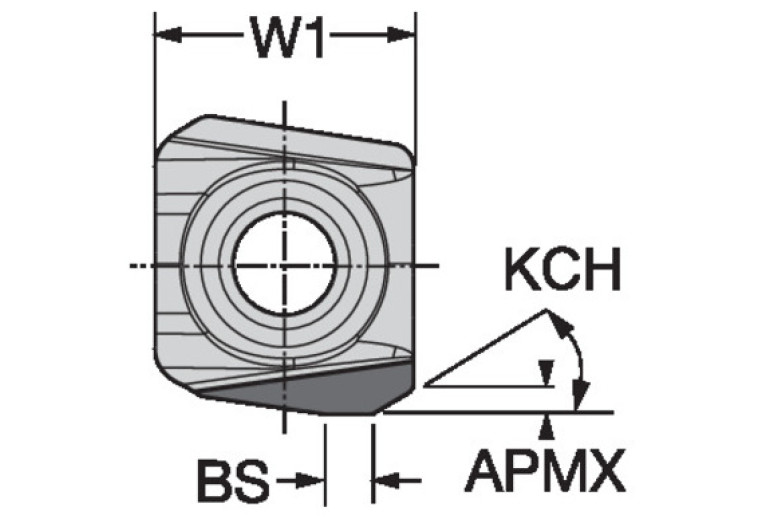

BS (Wiper edge length)

2.347 mm

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

F - Sharpedged

CHW (Corner chamfer width)

1.47 mm

D1 (Fixing hole diameter)

4.6 mm

Delivery state valid from

12/1/2023

DIN

SV-MJ110500

GAN (Insert rake angle)

20 Degree

GRDMFG (Grade manufacturers designation)

CB50

GRDPRIO (Standard designation of the grade main application)

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

R - Right

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$MJ1105$$3RB$$$$

KCH (Corner chamfer angle)

60 Degree

KRINS (Cutting edge angle major)

90 Degree

LE (Cutting edge effective length)

3 mm

LOC-03 ISO

SV$$MJ1105$$3RB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-MJ110500

Materials

K,H

S (Insert thickness)

5 mm

S1 (Insert thickness total)

5 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

W1 (Insert width)

11.5 mm

Working process

No working processes available

WT (Weight of item)

0.007 kg
