Главная Инструменты 201-00 - Regular Insert unspecified R365-1505ZNE-KL K20D

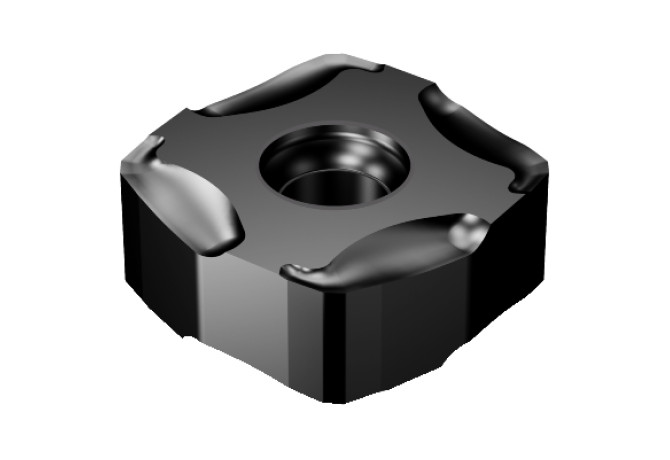

R365-1505ZNE-KL K20D

Артикул: 5745375

В наличии

0 ₽

В корзину

Описание

Характеристики

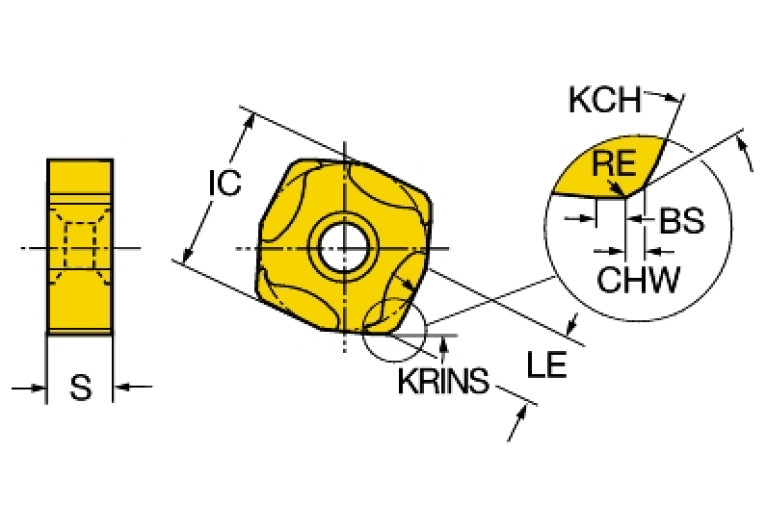

AN (Clearance angle major)

0 Degree

BS (Wiper edge length)

1.5 mm

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

S - Chamfered and rounded

CHW (Corner chamfer width)

0.71 mm

COATN (Coating)

CVD TiCN+Al2O3

D1 (Fixing hole diameter)

4.6 mm

Delivery state valid from

12/1/2023

DIN

SV-MG150500

GAN (Insert rake angle)

20 Degree

GRDMFG (Grade manufacturers designation)

K20D

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

15 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

R - Right

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$MG1505$$3RB$$$$

KCH (Corner chamfer angle)

35 Degree

KRINS (Cutting edge angle major)

65 Degree

LE (Cutting edge effective length)

6.4 mm

LOC-03 ISO

SV$$MG1505$$3RB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-MG150500

Materials

RE (Corner radius)

0.3 mm

S (Insert thickness)

5.66 mm

S1 (Insert thickness total)

5.66 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.016 kg
