Главная Инструменты 201-00 - Regular Insert unspecified R216-40 07 E-M 1030

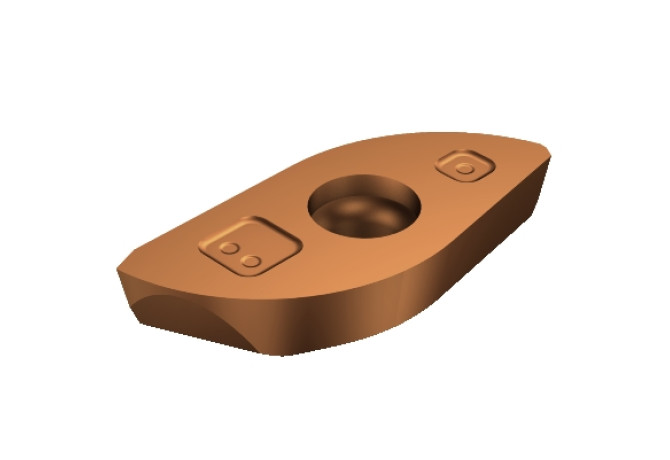

R216-40 07 E-M 1030

Артикул: 5743826

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

9 Degree

CBMD (Chip breaker manufacturers designation)

E-M

CECC (Cutting edge condition code)

E - Rounded

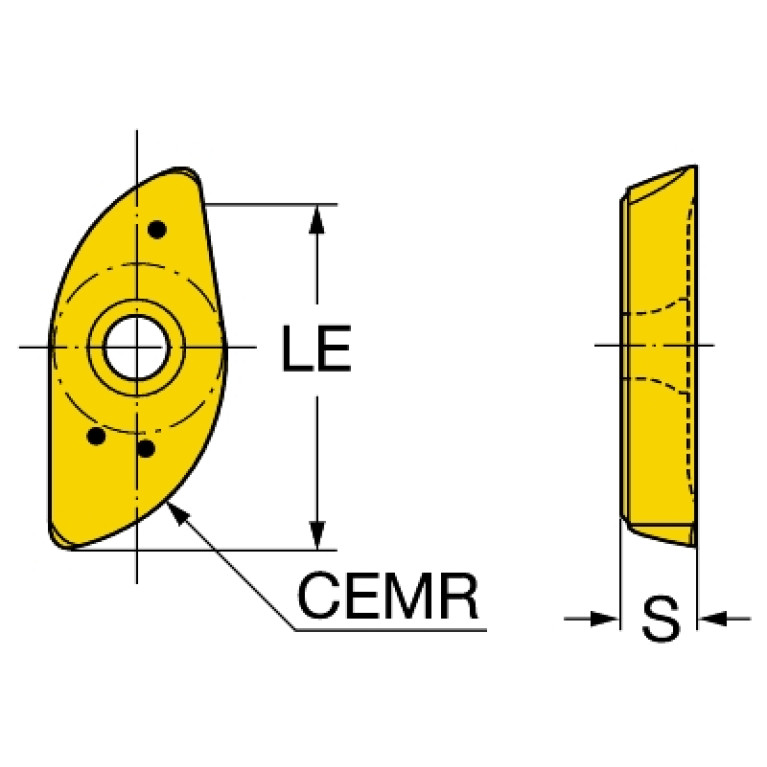

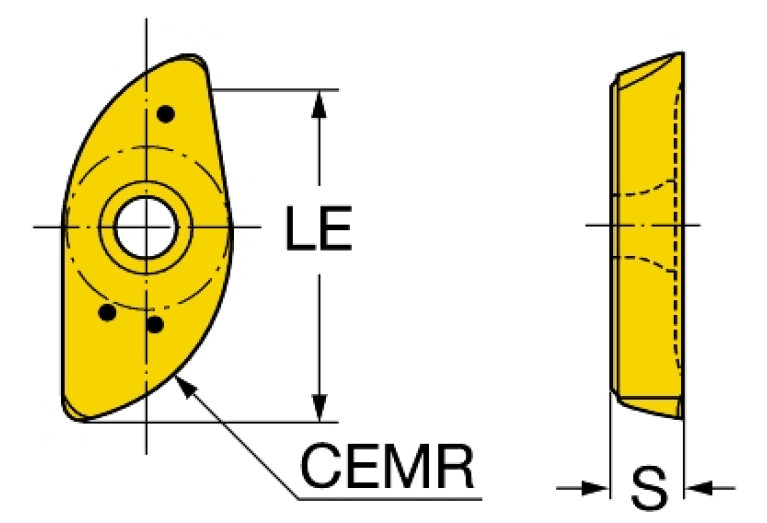

CEMR (Cutting edge major radius)

19.66 mm

COATN (Coating)

PVD TiAlN

D1 (Fixing hole diameter)

7 mm

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

SV-MP400700

GAN (Insert rake angle)

0 Degree

GRDMFG (Grade manufacturers designation)

1030

GRDPRIO (Standard designation of the grade main application)

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

R - Right

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$MP4007$$3RB$$$$

LE (Cutting edge effective length)

36.5 mm

LOC-03 ISO

SV$$MP4007$$3RB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-MP400700

Materials

P,M,N,S,H

S (Insert thickness)

7.938 mm

S1 (Insert thickness total)

7.938 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.049 kg
