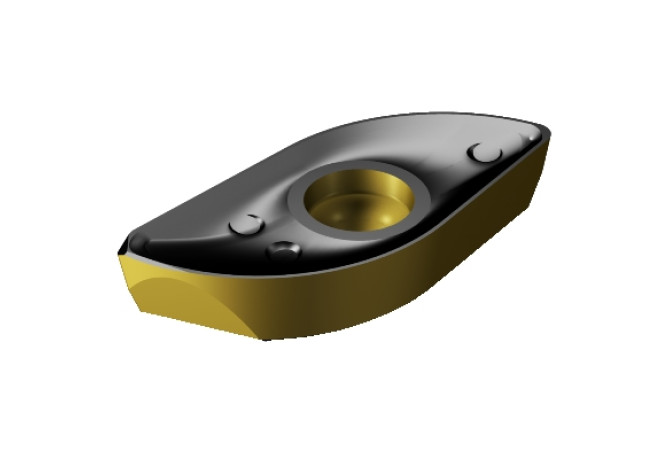

R216-20 T3 M-M 4220
R216-20 T3 M-M 4220
Артикул:
5743616
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
9 Degree
CBMD (Chip breaker manufacturers designation)
M-M
CECC (Cutting edge condition code)
E - Rounded

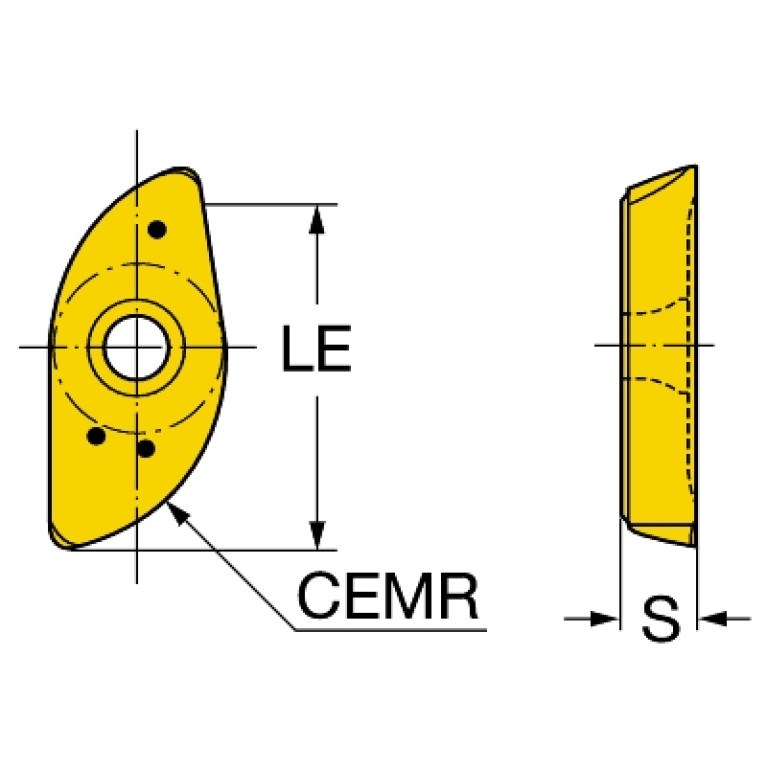

CEMR (Cutting edge major radius)
10 mm
COATN (Coating)
CVD TiCN+Al2O3+TiN
D1 (Fixing hole diameter)
4 mm
Delivery state valid from
12/1/2023
DIN
SV-MP20T300
GAN (Insert rake angle)
0 Degree
GRDMFG (Grade manufacturers designation)
4220
GRDPRIO (Standard designation of the grade main application)
HC
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
R - Right
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$MP20T3$$3RB$$$$
LE (Cutting edge effective length)
17.9 mm
LOC-03 ISO
SV$$MP20T3$$3RB$$$$
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-MP20T300
Materials
P,K,H
S (Insert thickness)
3.969 mm
S1 (Insert thickness total)
3.969 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.005 kg
