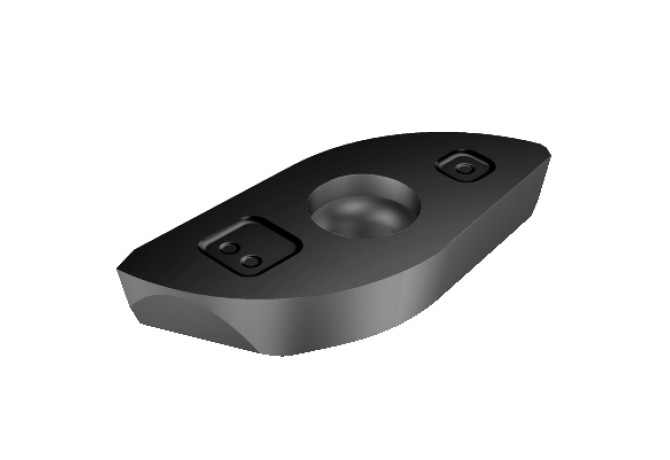

R216-20 T3 E-M 1130
R216-20 T3 E-M 1130
Артикул:
7100943
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
9 Degree
CBMD (Chip breaker manufacturers designation)
E-M
CECC (Cutting edge condition code)
E - Rounded

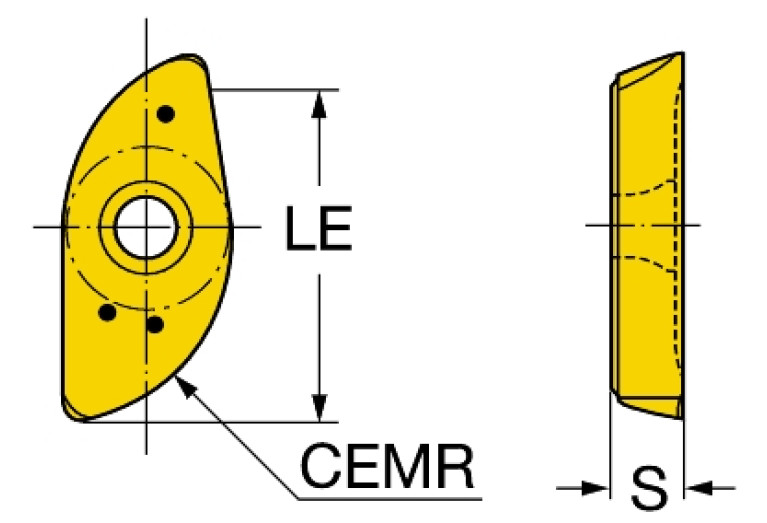

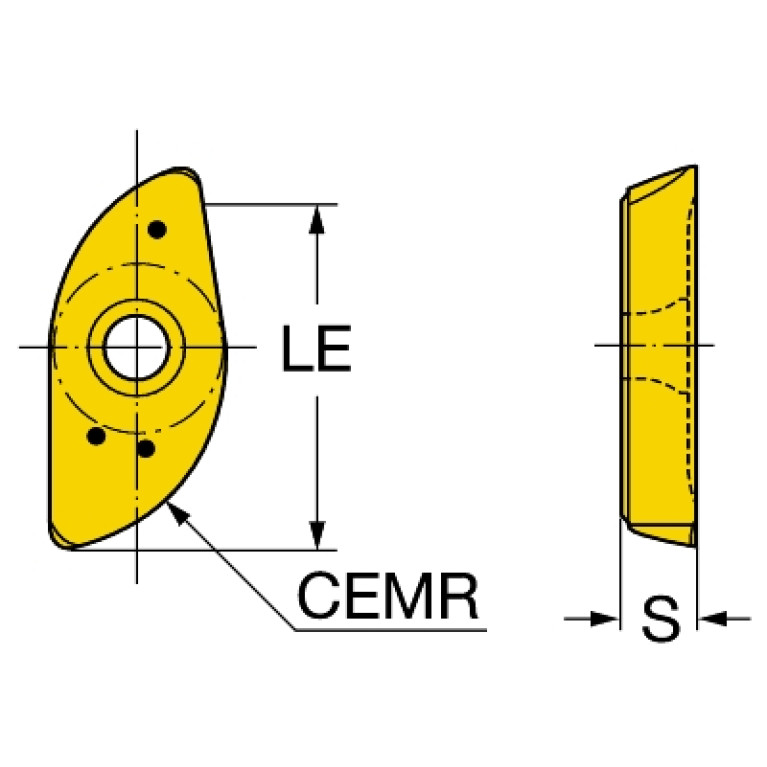

CEMR (Cutting edge major radius)
9.81 mm
COATN (Coating)
PVD AlTiCrN
D1 (Fixing hole diameter)
4 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
SV-MP20T300
GAN (Insert rake angle)
0 Degree
GRDMFG (Grade manufacturers designation)
1130
GRDPRIO (Standard designation of the grade main application)
HC
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
R - Right
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$MP20T3$$3RB$$$$
LE (Cutting edge effective length)
17.9 mm
LOC-03 ISO
SV$$MP20T3$$3RB$$$$
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-MP20T300
Materials
P,M,N,S,H
S (Insert thickness)
3.969 mm
S1 (Insert thickness total)
3.969 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
E
Working process
No working processes available
WT (Weight of item)
0.006 kg
