Главная Инструменты 201-00 - Regular Insert unspecified N365-1505ZNE-PW4 1230

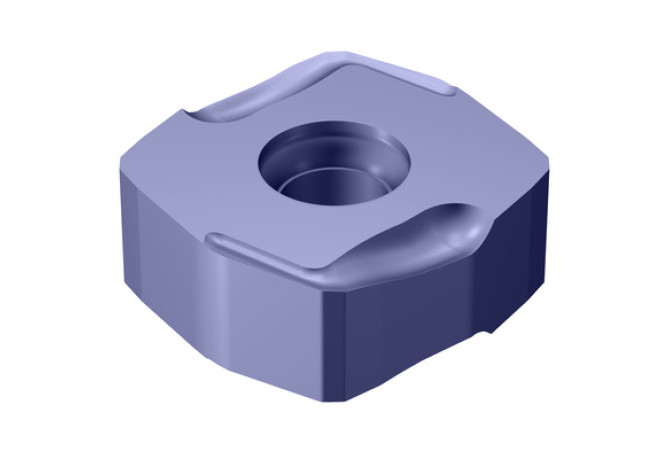

N365-1505ZNE-PW4 1230

Артикул: 8519288

В наличии

0 ₽

В корзину

Описание

Характеристики

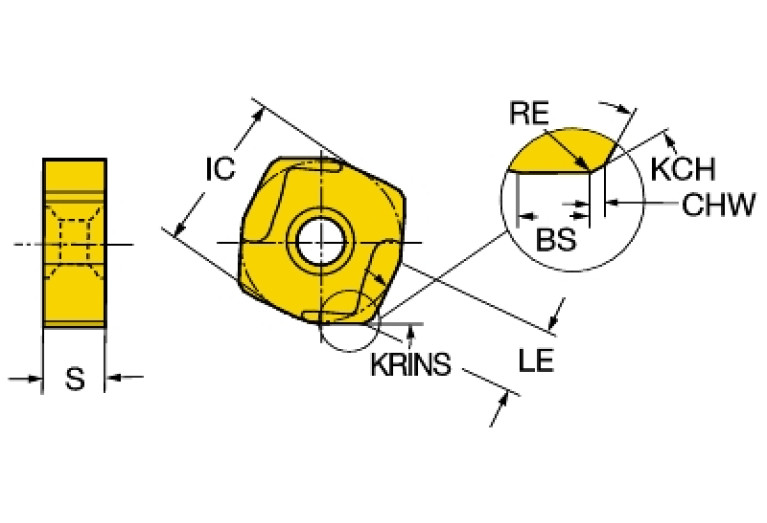

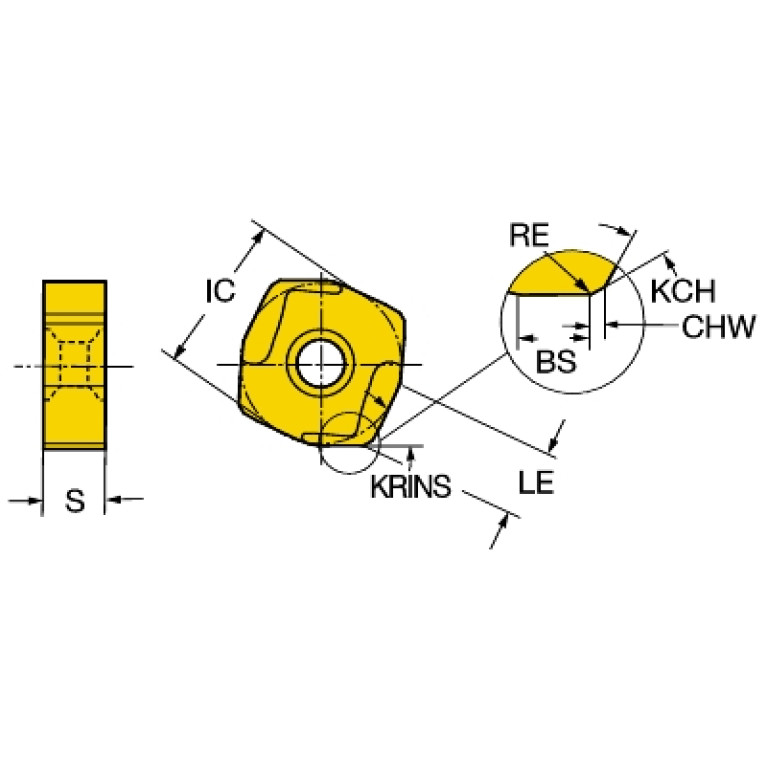

AN (Clearance angle major)

0 Degree

BS (Wiper edge length)

4 mm

CBMD (Chip breaker manufacturers designation)

PW4

CECC (Cutting edge condition code)

S - Chamfered and rounded

CHW (Corner chamfer width)

0.75 mm

COATN (Coating)

TiAlSiN

D1 (Fixing hole diameter)

4.6 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2024

GAN (Insert rake angle)

20 Degree

GRDMFG (Grade manufacturers designation)

1230

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

15 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$MG1505$$3NB$$$$

KCH (Corner chamfer angle)

35 Degree

KRINS (Cutting edge angle major)

65 Degree

LE (Cutting edge effective length)

6.4 mm

LOC-03 ISO

SV$$MG1505$$3NB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

Materials

P,M

RE (Corner radius)

0.55 mm

S (Insert thickness)

5.66 mm

S1 (Insert thickness total)

5.66 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.014 kg
