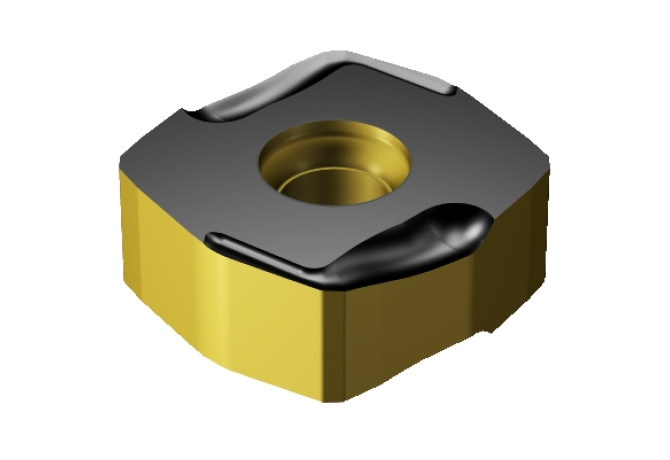

N365-1505ZNE-KW4 3330
N365-1505ZNE-KW4 3330
Артикул:
6428120
В наличии
0 ₽
Характеристики

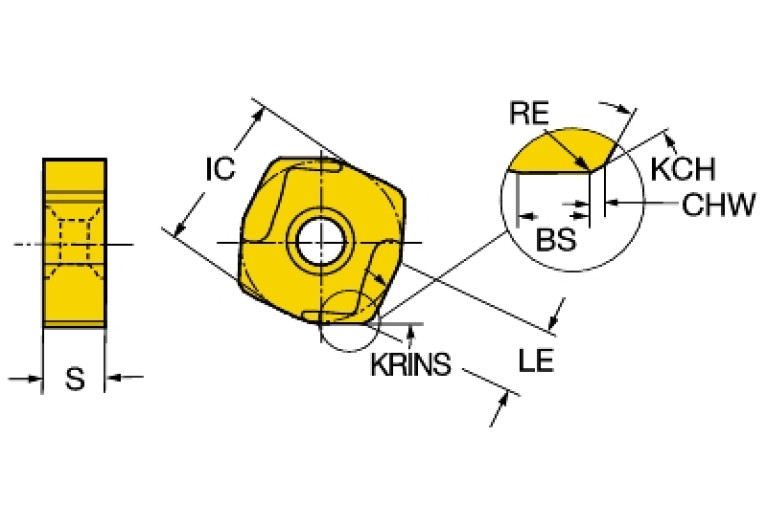

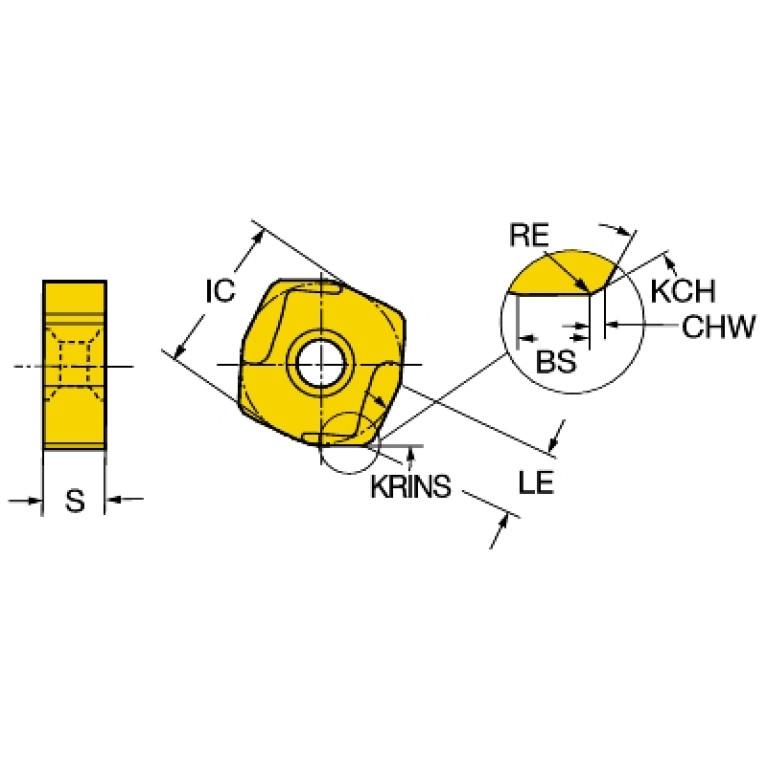

AN (Clearance angle major)
0 Degree
BS (Wiper edge length)
4 mm
CBMD (Chip breaker manufacturers designation)
KW4
CECC (Cutting edge condition code)
S - Chamfered and rounded
CHW (Corner chamfer width)
0.75 mm
COATN (Coating)
CVD TiCN+Al2O3+TiN
D1 (Fixing hole diameter)
4.6 mm
Delivery state valid from
12/1/2023
DIN
SV-MG150500
GAN (Insert rake angle)
20 Degree
GRDMFG (Grade manufacturers designation)
3330
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
15 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$MG1505$$3NB$$$$
KCH (Corner chamfer angle)
35 Degree
KRINS (Cutting edge angle major)
65 Degree
LE (Cutting edge effective length)
6.4 mm
LOC-03 ISO
SV$$MG1505$$3NB$$$$
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-MG150500
RE (Corner radius)
0.55 mm
S (Insert thickness)
5.66 mm
S1 (Insert thickness total)
5.66 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
E
Working process
No working processes available
WT (Weight of item)
0.014 kg
