Главная Инструменты 201-00 - Regular Insert unspecified L365-1505ZNE-KL 1020

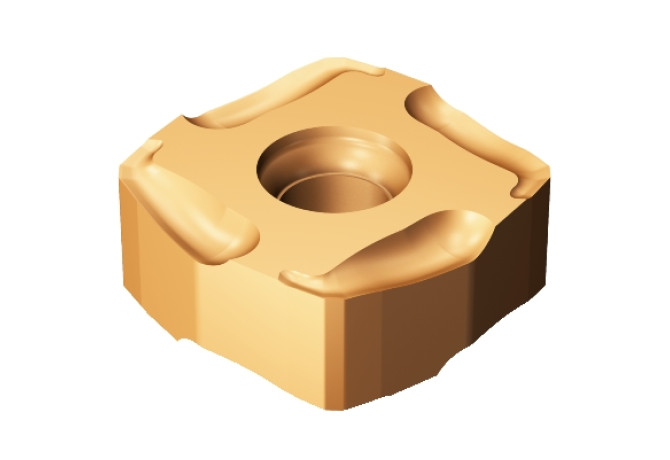

L365-1505ZNE-KL 1020

Артикул: 5735331

В наличии

0 ₽

В корзину

Описание

Характеристики

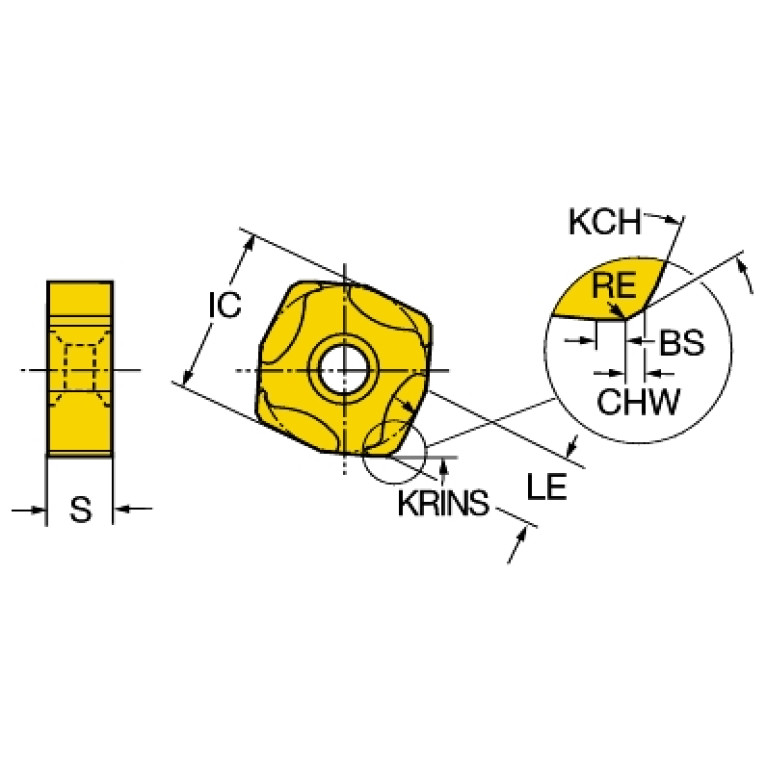

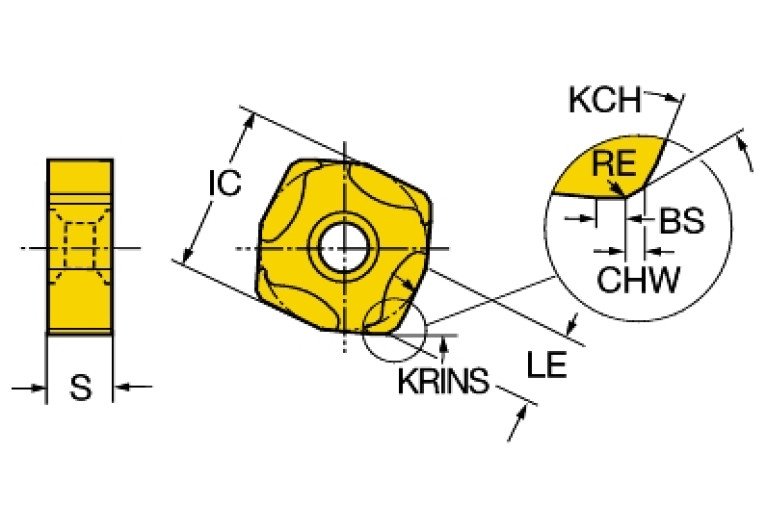

AN (Clearance angle major)

0 Degree

BS (Wiper edge length)

1.5 mm

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

T - Chamfered

CHW (Corner chamfer width)

0.66 mm

COATN (Coating)

PVD TiAlN

D1 (Fixing hole diameter)

4.6 mm

Delivery state valid from

12/1/2023

DIN

SV-MG150500

GRDMFG (Grade manufacturers designation)

1020

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

15 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

L - Left

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$MG1505$$3LB$$$$

KCH (Corner chamfer angle)

30 Degree

KRINS (Cutting edge angle major)

65 Degree

LE (Cutting edge effective length)

6.4 mm

LOC-03 ISO

SV$$MG1505$$3LB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-MG150500

Materials

S (Insert thickness)

5.66 mm

S1 (Insert thickness total)

5.66 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.014 kg
