DS20-0708-P-H5W 2044

Артикул: 7549997

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

1 Degree

AS (Clearance angle wiper edge)

7 Degree

BS (Wiper edge length)

0.45 mm

CBMD (Chip breaker manufacturers designation)

H5W

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

PVD TiAlN+TiAlN

Delivery state valid from

12/1/2023

DIN

SV-DQ0708P0

EPSR (Insert included angle)

90 Degree

GAN (Insert rake angle)

-2 Degree

GRDMFG (Grade manufacturers designation)

2044

GRDPRIO (Standard designation of the grade main application)

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

R - Right

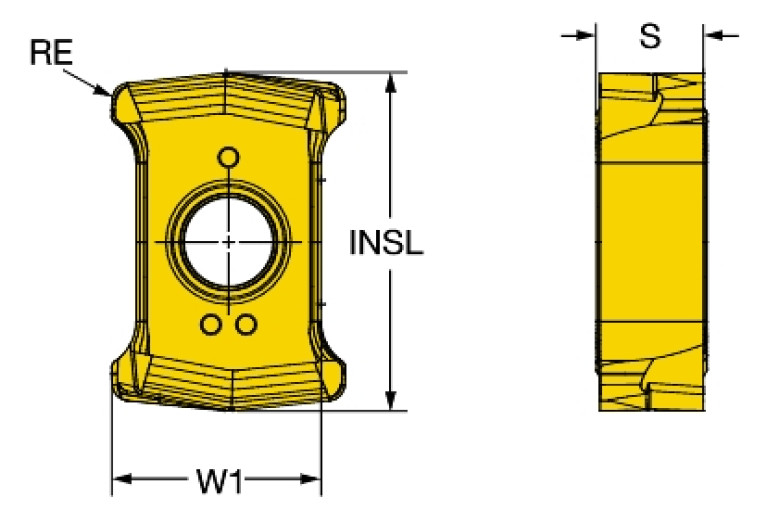

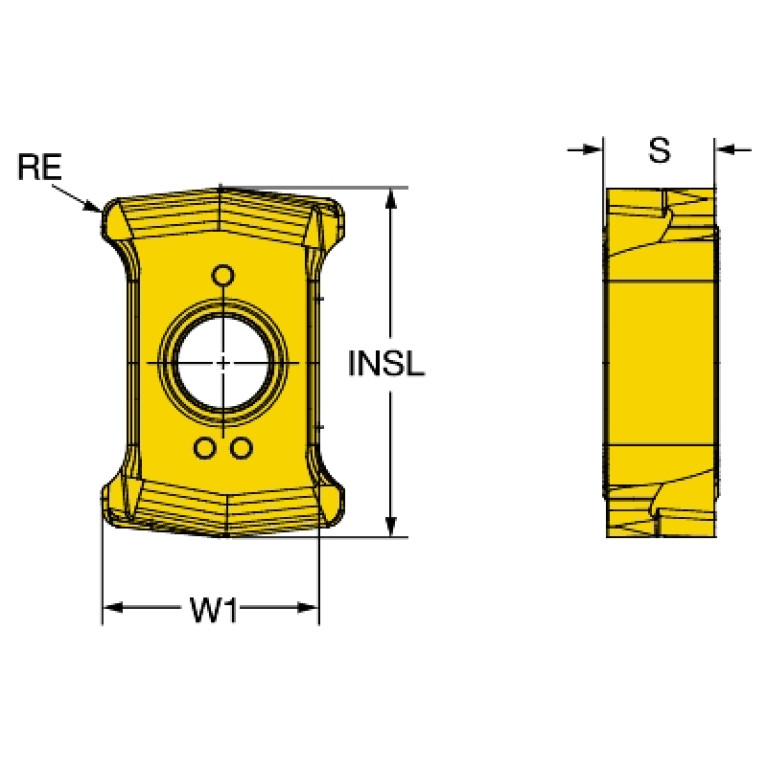

INSL (Insert length)

21.9 mm

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$DQ0708$$3RAP$$$

LOC-03 ISO

SV$$DQ0708$$3RAP$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-DQ0708P0

Materials

RE (Corner radius)

0.8 mm

S (Insert thickness)

7 mm

S1 (Insert thickness total)

7 mm

TCE (Tipped cutting edge code)

W1 (Insert width)

18.03 mm

Working process

No working processes available

WT (Weight of item)

0.022 kg
