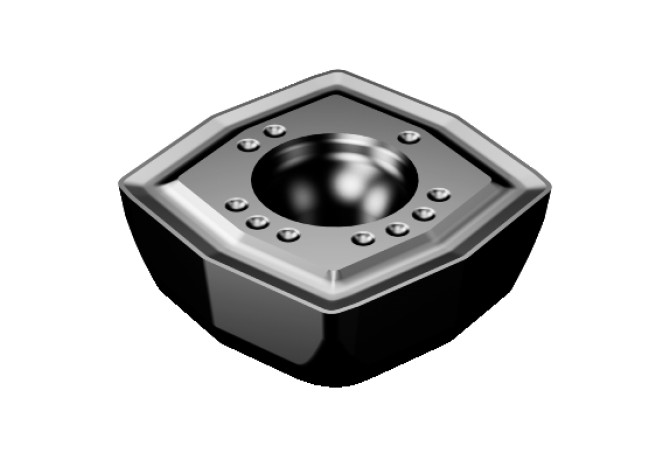

DS20-0708-C-M7 1344
DS20-0708-C-M7 1344
Артикул:
7550001
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
7 Degree
CBMD (Chip breaker manufacturers designation)
M7
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
PVD TiAlN
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
SV-DQ0708C0
EPSR (Insert included angle)
90 Degree
GAN (Insert rake angle)
0 Degree
GRDMFG (Grade manufacturers designation)
1344
GRDPRIO (Standard designation of the grade main application)
HC

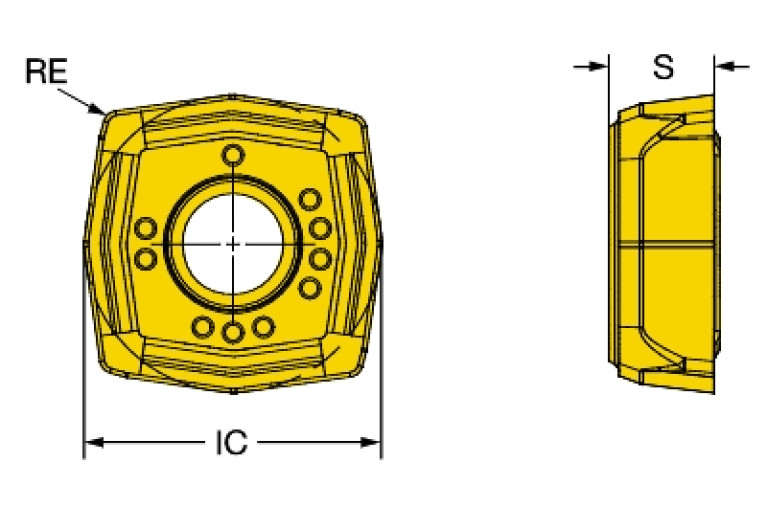

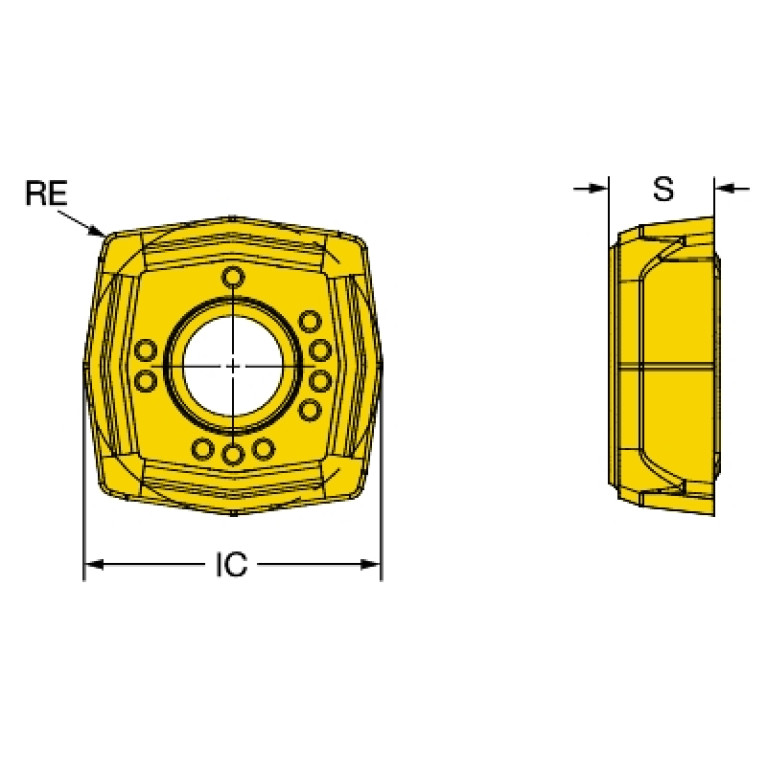

IC (Inscribed circle diameter)
21.82 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
R - Right
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$DQ0708$$3RAC$$$
LOC-03 ISO
SV$$DQ0708$$3RAC$$$
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-DQ0708C0
Materials
P,K,H
RE (Corner radius)
0.35 mm
S (Insert thickness)
4.5 mm
S1 (Insert thickness total)
4.5 mm
TCE (Tipped cutting edge code)
S
Working process
No working processes available
WT (Weight of item)
0.022 kg
