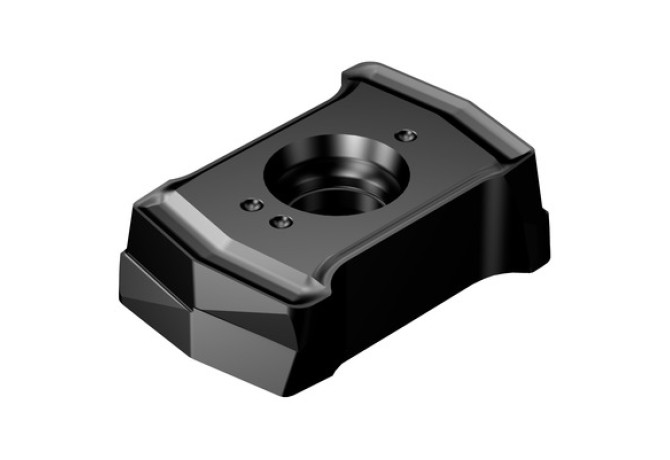

DS20-0407-P-M7W 4324

Артикул: 7549940

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

1 Degree

AS (Clearance angle wiper edge)

7 Degree

BS (Wiper edge length)

0.35 mm

CBMD (Chip breaker manufacturers designation)

M7W

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SV-DQ0407P0

EPSR (Insert included angle)

90 Degree

GAN (Insert rake angle)

0 Degree

GRDMFG (Grade manufacturers designation)

4324

GRDPRIO (Standard designation of the grade main application)

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

R - Right

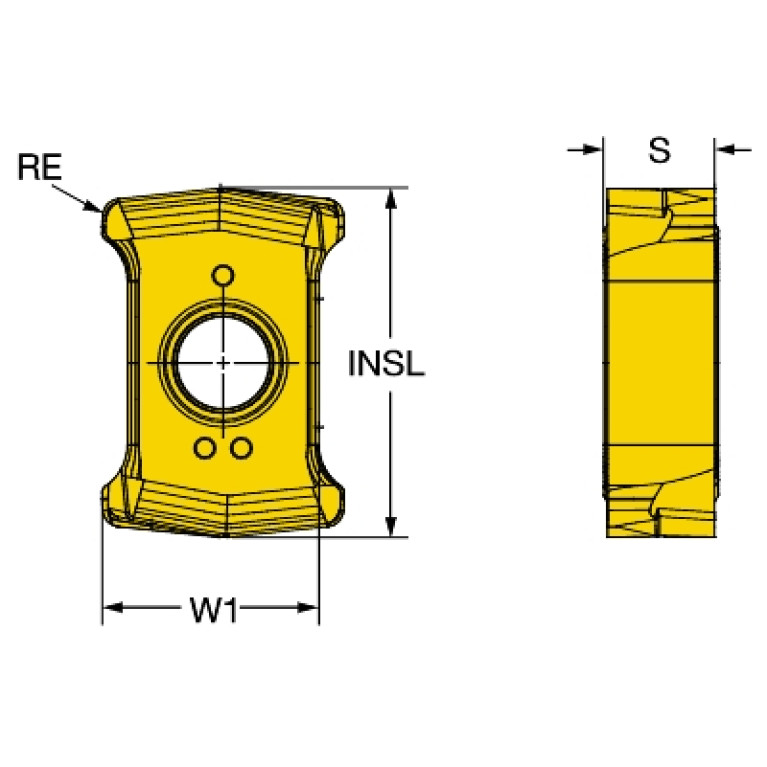

INSL (Insert length)

13.4 mm

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$DQ0407$$3RAP$$$

LOC-03 ISO

SV$$DQ0407$$3RAP$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-DQ0407P0

Materials

P,K

RE (Corner radius)

0.7 mm

S (Insert thickness)

4.25 mm

S1 (Insert thickness total)

4.25 mm

TCE (Tipped cutting edge code)

W1 (Insert width)

9.29 mm

Working process

No working processes available

WT (Weight of item)

0.006 kg
