Главная Инструменты 201-00 - Regular Insert unspecified DS20-0306-P-H5W 4344

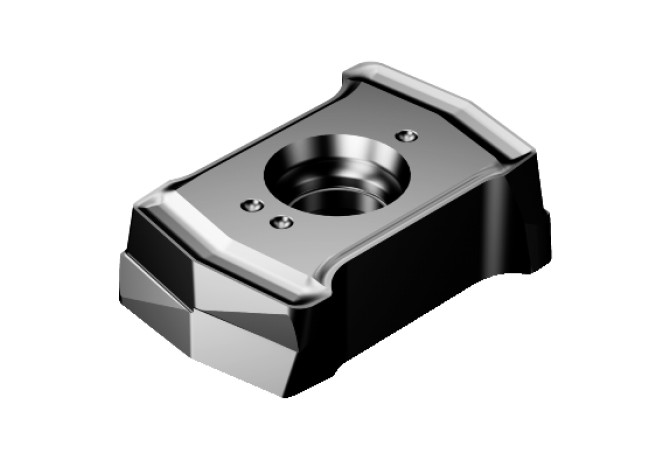

DS20-0306-P-H5W 4344

Артикул: 7549928

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

1 Degree

AS (Clearance angle wiper edge)

7 Degree

BS (Wiper edge length)

0.3 mm

CBMD (Chip breaker manufacturers designation)

H5W

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

PVD TiAlN

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SV-DQ0306P0

EPSR (Insert included angle)

90 Degree

GAN (Insert rake angle)

-2 Degree

GRDMFG (Grade manufacturers designation)

4344

GRDPRIO (Standard designation of the grade main application)

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

R - Right

INSL (Insert length)

11.3 mm

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$DQ0306$$3RAP$$$

LOC-03 ISO

SV$$DQ0306$$3RAP$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-DQ0306P0

Materials

P,M

RE (Corner radius)

0.6 mm

S (Insert thickness)

3.525 mm

S1 (Insert thickness total)

3.525 mm

TCE (Tipped cutting edge code)

W1 (Insert width)

7.35 mm

Working process

No working processes available

WT (Weight of item)

0.003 kg
