DS20-0104-P-S5W H13A
DS20-0104-P-S5W H13A
Артикул:
7549868
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
1 Degree
AS (Clearance angle wiper edge)
7 Degree
BS (Wiper edge length)
0.25 mm
CBMD (Chip breaker manufacturers designation)
S5W
CECC (Cutting edge condition code)
E - Rounded
Delivery state valid from
12/1/2023
DIN
SV-DQ0104P0
EPSR (Insert included angle)
90 Degree
GAN (Insert rake angle)
2.5 Degree
GRDMFG (Grade manufacturers designation)
H13A
GRDPRIO (Standard designation of the grade main application)
HW
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
R - Right

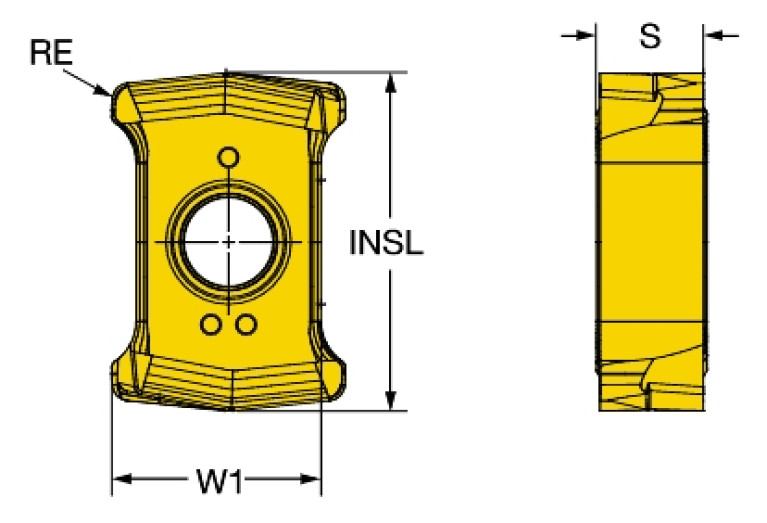

INSL (Insert length)
8.5 mm
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$DQ0104$$3RAP$$$
LOC-03 ISO
SV$$DQ0104$$3RAP$$$
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-DQ0104P0
Materials
N,S
RE (Corner radius)
0.4 mm
S (Insert thickness)
2.725 mm
S1 (Insert thickness total)
2.725 mm
TCE (Tipped cutting edge code)
S
W1 (Insert width)
5 mm
Working process
No working processes available
WT (Weight of item)
0.002 kg
