Главная Инструменты 201-00 - Regular Insert unspecified DS20-0104-P-L5W 4334

DS20-0104-P-L5W 4334

Артикул: 7549864

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

1 Degree

AS (Clearance angle wiper edge)

7 Degree

BS (Wiper edge length)

0.25 mm

CBMD (Chip breaker manufacturers designation)

L5W

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SV-DQ0104P0

EPSR (Insert included angle)

90 Degree

GAN (Insert rake angle)

2.5 Degree

GRDMFG (Grade manufacturers designation)

4334

GRDPRIO (Standard designation of the grade main application)

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

R - Right

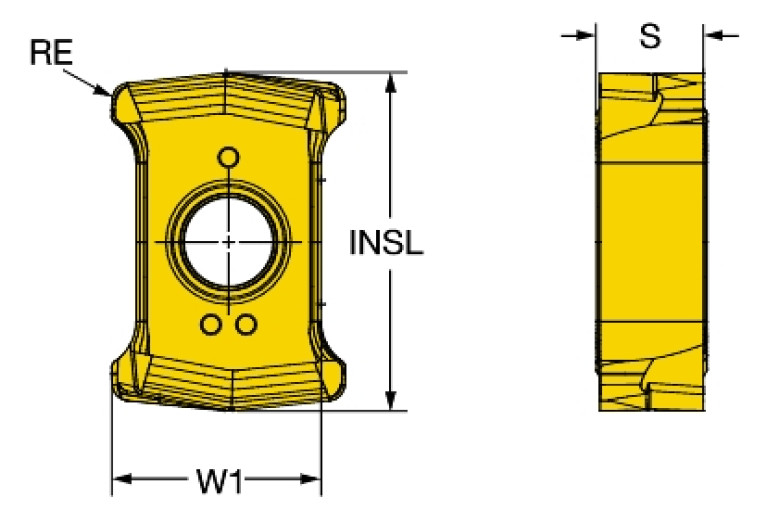

INSL (Insert length)

8.5 mm

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$DQ0104$$3RAP$$$

LOC-03 ISO

SV$$DQ0104$$3RAP$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-DQ0104P0

Materials

P,M

RE (Corner radius)

0.4 mm

S (Insert thickness)

2.725 mm

S1 (Insert thickness total)

2.725 mm

TCE (Tipped cutting edge code)

W1 (Insert width)

5 mm

Working process

No working processes available

WT (Weight of item)

0.001 kg
