CP-B1216D-M7 S205
CP-B1216D-M7 S205
Артикул:
8232403
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
0 Degree
BN (Face land width)
0.2 mm
CBMD (Chip breaker manufacturers designation)
M7
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
CVD TiCN+Al2O3+TiN
D1 (Fixing hole diameter)
5.156 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
SV-TL120600

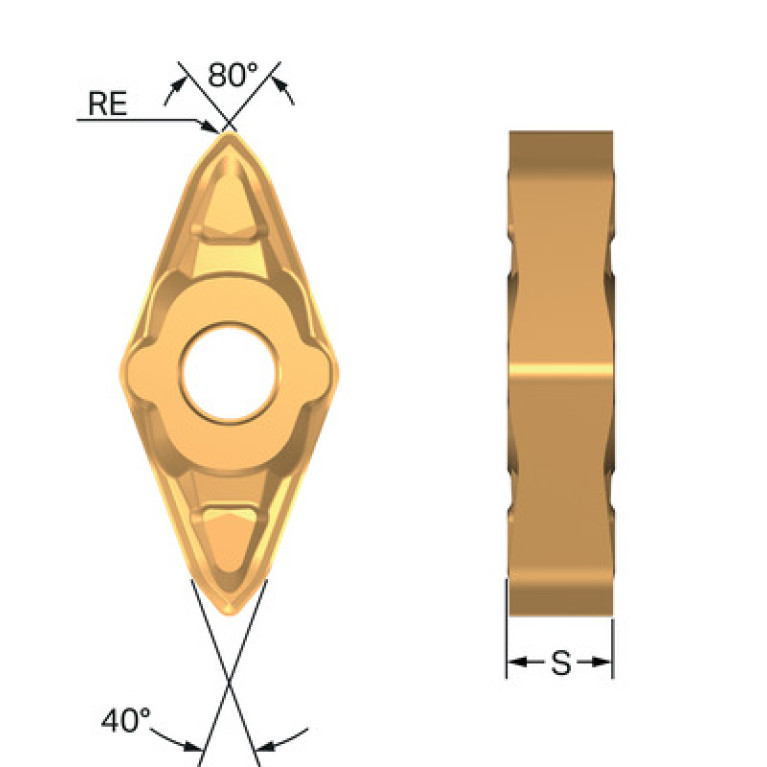

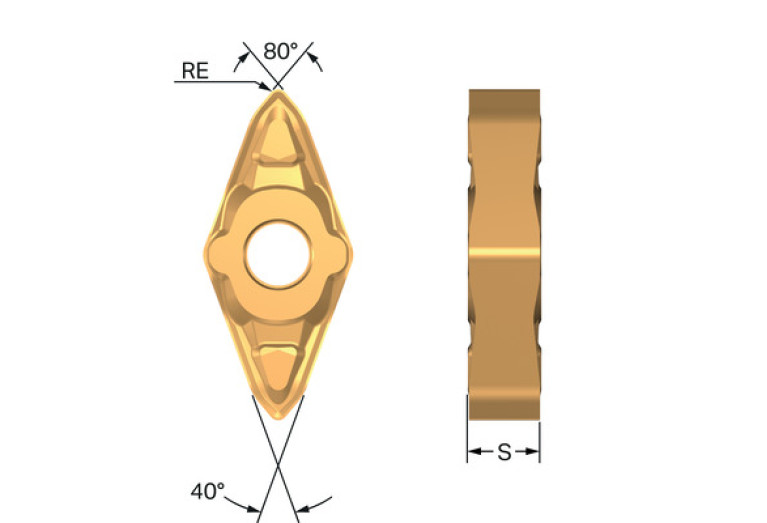

EPSR (Insert included angle)
80 Degree
GAN (Insert rake angle)
4 Degree
GRDMFG (Grade manufacturers designation)
S205
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
12 mm
IFS (Insert mounting style code)
2 - With cylindrical bore
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$TL1206162NB$$16
LOC-03 ISO
SV$$TL1206162NB$$16
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-TL120600
Materials
S
RE (Corner radius)
1.6 mm
S (Insert thickness)
6 mm
S1 (Insert thickness total)
6 mm
TCE (Tipped cutting edge code)
S
Working process
No working processes available
WT (Weight of item)
0.017 kg
