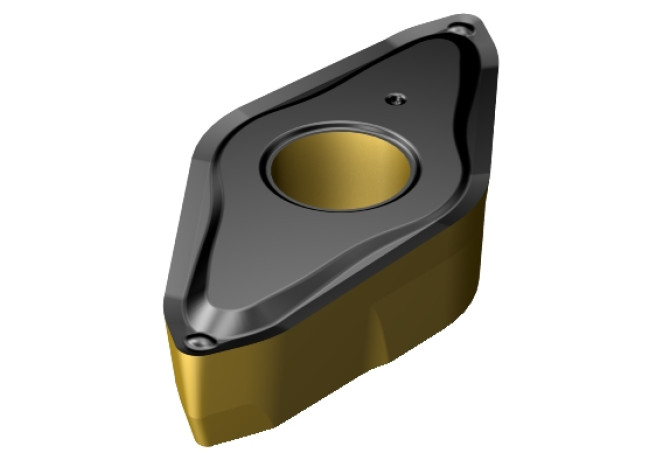

Главная Инструменты 201-00 - Regular Insert unspecified CP-B1108-L4W 4325

CP-B1108-L4W 4325

Артикул: 7577532

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

6 Degree

CBMD (Chip breaker manufacturers designation)

L4W

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

5.16 mm

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

SV-TL110500

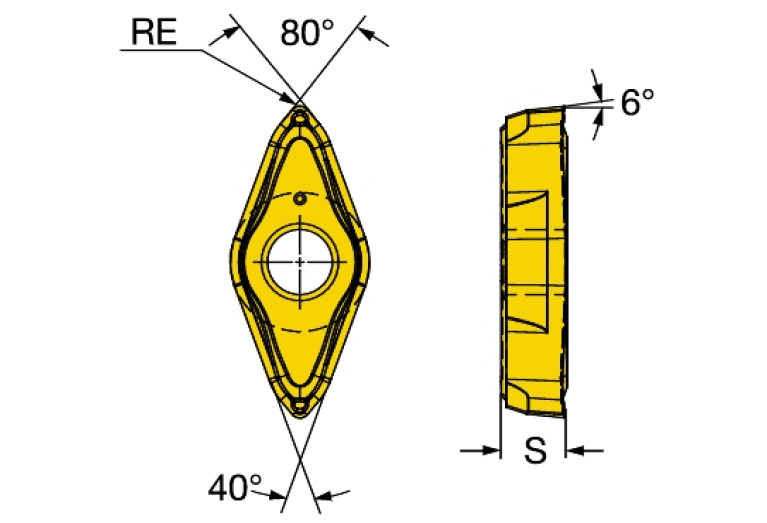

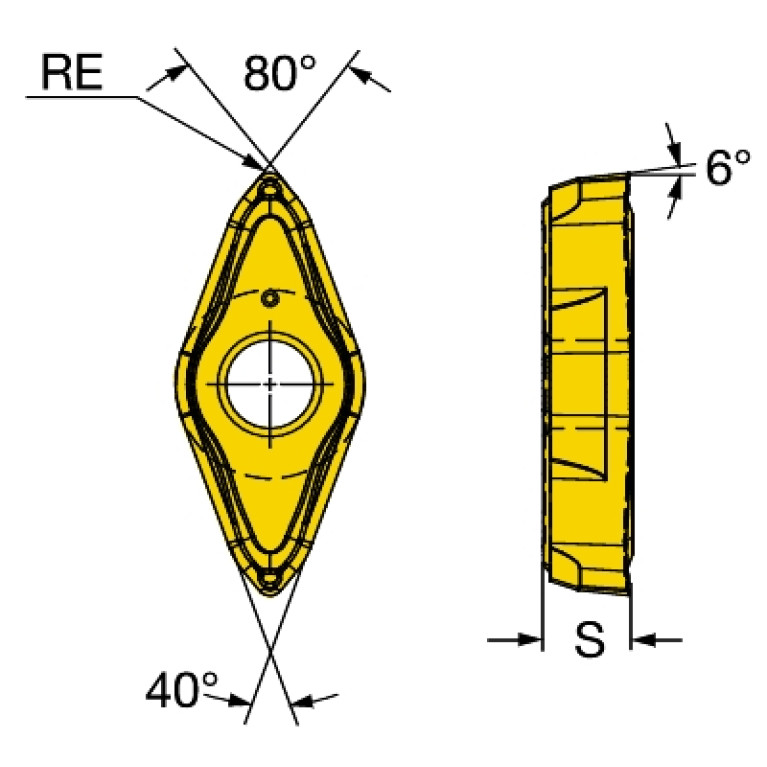

EPSR (Insert included angle)

80 Degree

GAN (Insert rake angle)

8 Degree

GRDMFG (Grade manufacturers designation)

4325

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

11 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$TL1105082NB$$08

KRINS (Cutting edge angle major)

25 Degree

LOC-03 ISO

SV$$TL1105082NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-TL110500

Materials

RE (Corner radius)

0.8 mm

S (Insert thickness)

5 mm

S1 (Insert thickness total)

5 mm

TCE (Tipped cutting edge code)

Working process

No working processes available

WT (Weight of item)

0.012 kg
