Главная Инструменты 201-00 - Regular Insert unspecified CP-B1108-H3W 4425

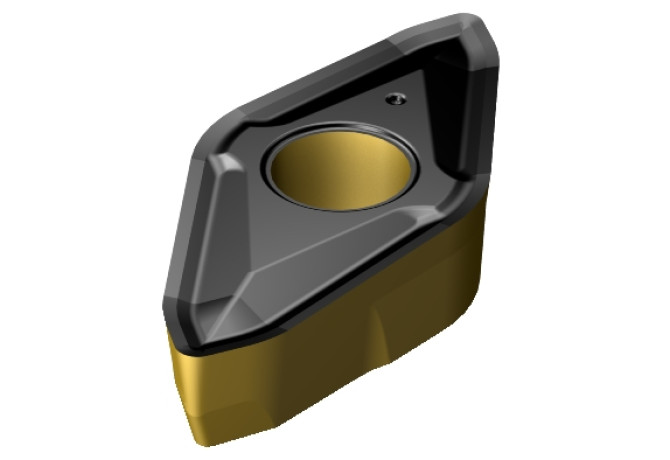

CP-B1108-H3W 4425

Артикул: 7860972

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

6 Degree

BS (Wiper edge length)

0.7 mm

CBMD (Chip breaker manufacturers designation)

H3W

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

5.16 mm

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

SV-TL110500

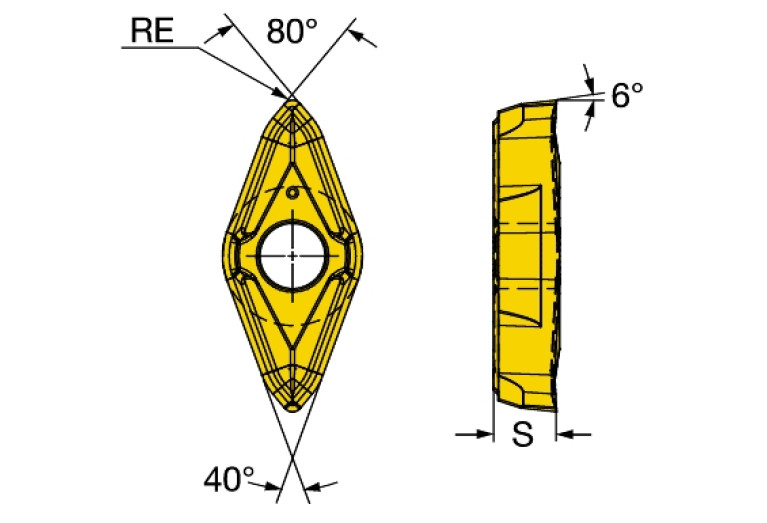

EPSR (Insert included angle)

80 Degree

GAN (Insert rake angle)

11 Degree

GRDMFG (Grade manufacturers designation)

4425

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

11 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$TL1105082NB$$08

KRINS (Cutting edge angle major)

25 Degree

LOC-03 ISO

SV$$TL1105082NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-TL110500

Materials

RE (Corner radius)

0.8 mm

S (Insert thickness)

5 mm

S1 (Insert thickness total)

5 mm

TCE (Tipped cutting edge code)

Working process

No working processes available

WT (Weight of item)

0.012 kg
