CP-A1108-L5W 1210
CP-A1108-L5W 1210
Артикул:
8432092
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
6 Degree
CBMD (Chip breaker manufacturers designation)
L5W
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
AlTiCrN
D1 (Fixing hole diameter)
3.7 mm
Delivery state
LH - Stocked
Delivery state valid from
6/1/2024
DIN
SV-TK110600

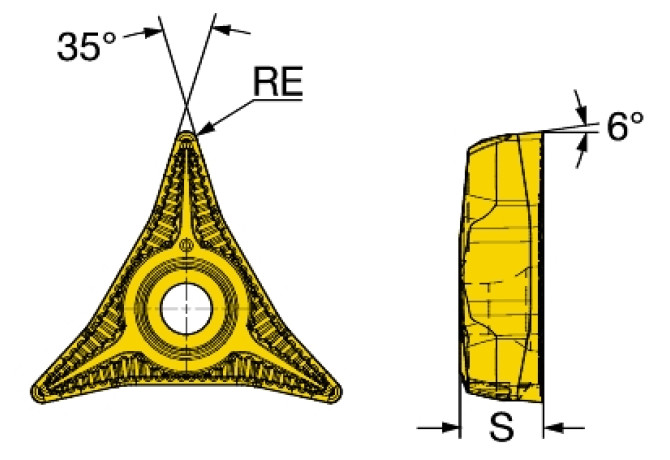

EPSR (Insert included angle)
35 Degree
GRDMFG (Grade manufacturers designation)
1210
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
11 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$TK1106083NB$$08
LOC-03 ISO
SV$$TK1106083NB$$08
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-TK110600
Materials
M,S
RE (Corner radius)
0.8 mm
S (Insert thickness)
6 mm
S1 (Insert thickness total)
6 mm
TCE (Tipped cutting edge code)
S
Working process
No working processes available
WT (Weight of item)
0.012 kg
