Главная Инструменты 201-00 - Regular Insert unspecified CP-A1108-L5W 1115

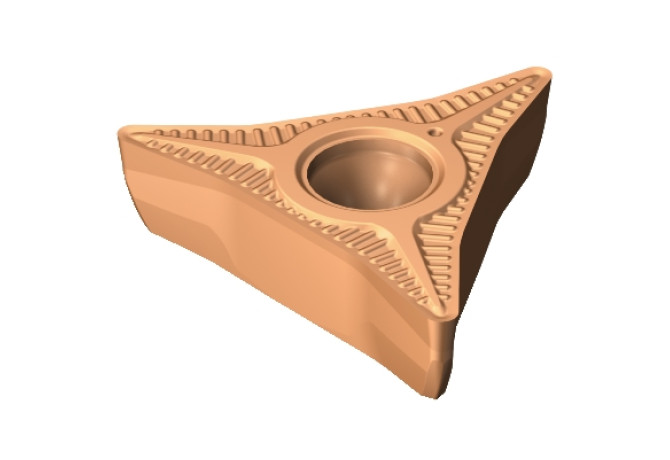

CP-A1108-L5W 1115

Артикул: 7100704

В наличии

0 ₽

В корзину

Описание

Характеристики

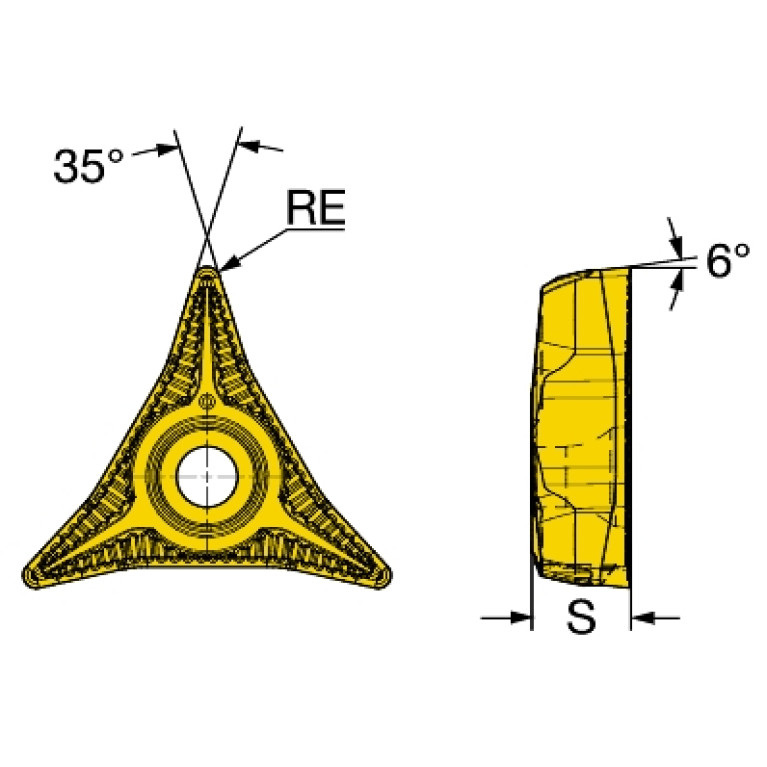

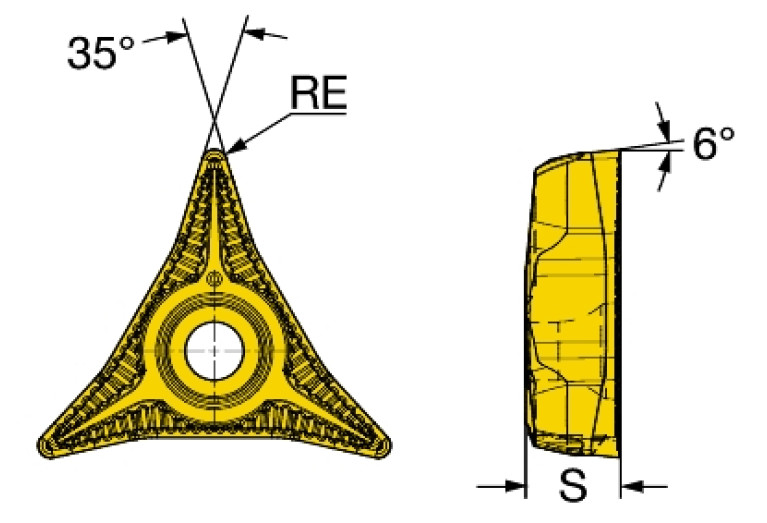

AN (Clearance angle major)

6 Degree

BS (Wiper edge length)

0.6 mm

CBMD (Chip breaker manufacturers designation)

L5W

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

PVD TiAlN+TiAlN

D1 (Fixing hole diameter)

3.7 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

SV-TK110600

EPSR (Insert included angle)

35 Degree

GAN (Insert rake angle)

9 Degree

GRDMFG (Grade manufacturers designation)

1115

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

11 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$TK1106083NB$$08

KRINS (Cutting edge angle major)

27.5 Degree

LOC-03 ISO

SV$$TK1106083NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-TK110600

Materials

M,S

RE (Corner radius)

0.8 mm

S (Insert thickness)

6 mm

S1 (Insert thickness total)

6 mm

TCE (Tipped cutting edge code)

Working process

No working processes available

WT (Weight of item)

0.012 kg
