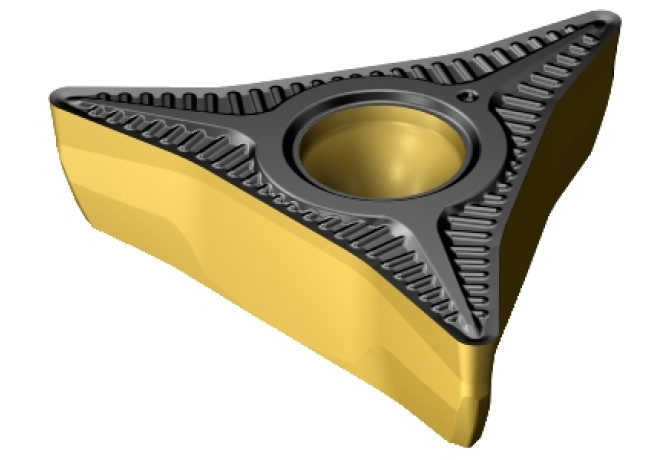

Главная Инструменты 201-00 - Regular Insert unspecified CP-A1108-L5 4415

CP-A1108-L5 4415

Артикул: 7910801

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

6 Degree

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

3.7 mm

Delivery state valid from

12/1/2023

DIN

SV-TK110600

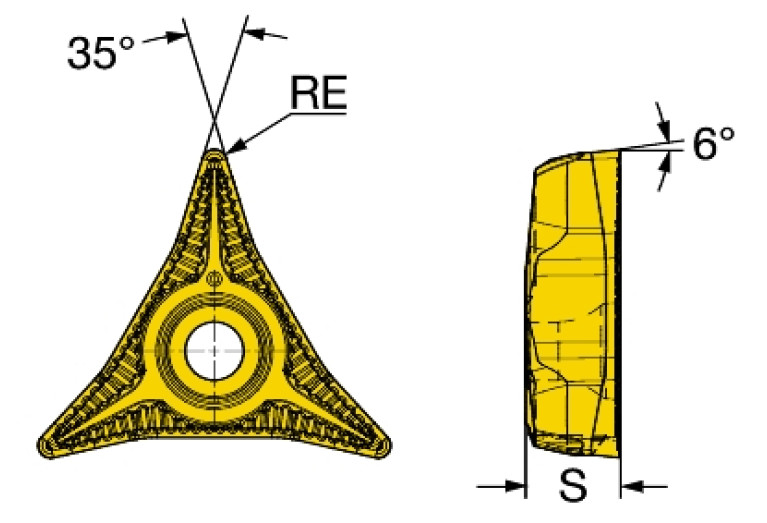

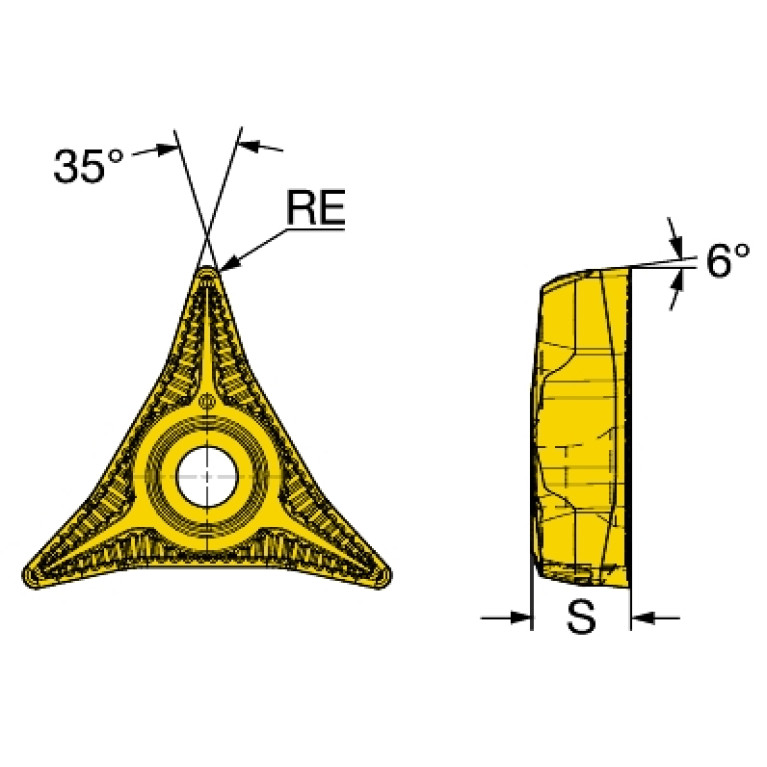

EPSR (Insert included angle)

35 Degree

GAN (Insert rake angle)

13 Degree

GRDMFG (Grade manufacturers designation)

4415

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

11 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$TK1106083NB$$08

LOC-03 ISO

SV$$TK1106083NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-TK110600

Materials

P,K

RE (Corner radius)

0.794 mm

S (Insert thickness)

6 mm

S1 (Insert thickness total)

6 mm

TCE (Tipped cutting edge code)

Working process

No working processes available

WT (Weight of item)

0.012 kg
