Главная Инструменты 201-00 - Regular Insert unspecified CP-A1108-L3WX 4325

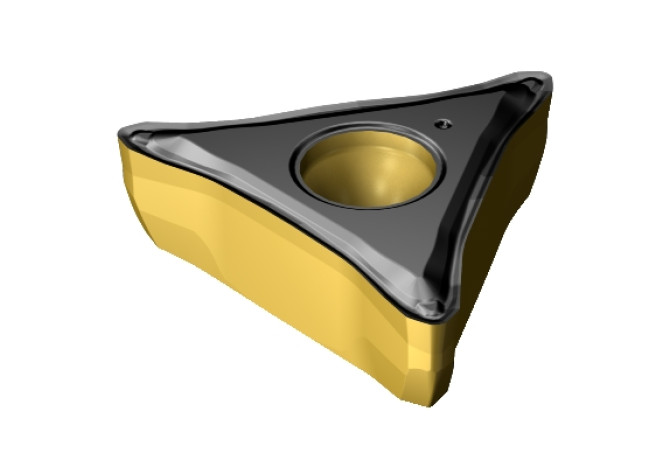

CP-A1108-L3WX 4325

Артикул: 7577276

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

6 Degree

BS (Wiper edge length)

1 mm

CBMD (Chip breaker manufacturers designation)

L3WX

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

3.7 mm

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

SV-TK110600

EPSR (Insert included angle)

35 Degree

GAN (Insert rake angle)

11 Degree

GRDMFG (Grade manufacturers designation)

4325

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

11 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$TK1106083NB$$08

KRINS (Cutting edge angle major)

27.5 Degree

LOC-03 ISO

SV$$TK1106083NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-TK110600

Materials

RE (Corner radius)

0.8 mm

S (Insert thickness)

6 mm

S1 (Insert thickness total)

6 mm

TCE (Tipped cutting edge code)

Working process

No working processes available

WT (Weight of item)

0.012 kg
