881-02 02 04M-P-GM1 4024

Артикул: 5962750

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

7 Degree

BN (Face land width)

0.08 mm

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3

D1 (Fixing hole diameter)

2.5 mm

Delivery state valid from

12/1/2023

DIN

SV-DA0202P0

GAN (Insert rake angle)

10 Degree

GB (Face land angle)

5 Degree

GRDMFG (Grade manufacturers designation)

4024

GRDPRIO (Standard designation of the grade main application)

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

R - Right

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$DA0202$$3RBP$$$

LOC-03 ISO

SV$$DA0202$$3RBP$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-DA0202P0

Materials

P,M,K,H

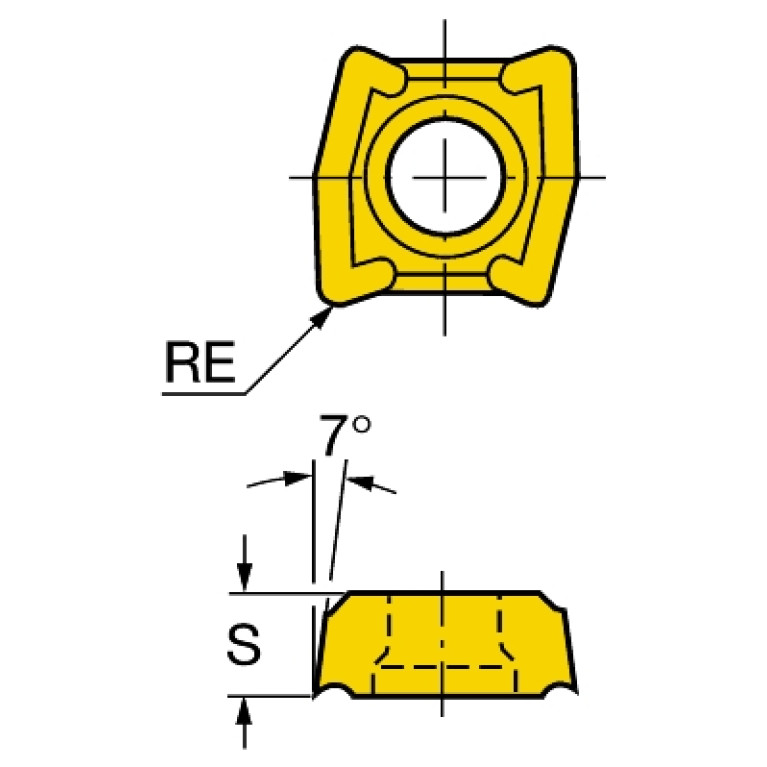

RE (Corner radius)

0.4 mm

S (Insert thickness)

2.381 mm

S1 (Insert thickness total)

2.381 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.001 kg
